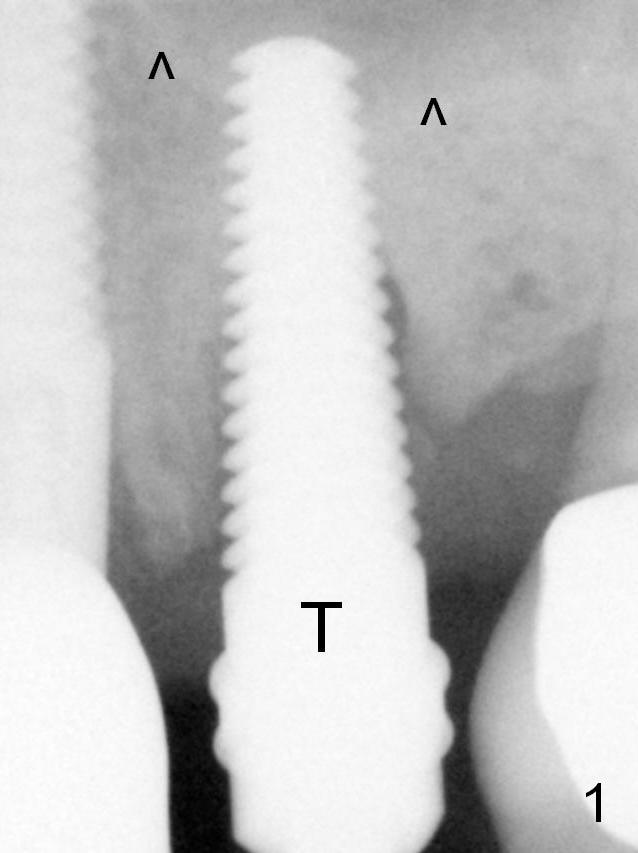

Extraction of the affected 2nd premolar is easy; the apical bone is so hard that drill (2 mm) and reamers (2.5 and 3 mm) have to be used for osteotomy, followed by insertion of a 4.5 mm tap with stability (Fig.1 T).  The sinus floor (^) is lifted. There is no sinus membrane perforation.

There is no sign of sinus membrane perforation before placement of a 4.5x14 mm implant (Fig.2 I); sinus lift is performed (*, with mixture of autogenous bone (from reamers), allograft and Osteogen). Arrowheads: remaining mesial and distal sockets, which will be bone grafted after provisional fabrication.

Bone density in the mesial and distal sockets increases after bone graft (Fig.4: arrowheads).

The distal threads appear not covered by the bone, with mild distal crestal bone resorption, 2.5 months postop (Fig.11 >).

Panoramic X-ray is taken 3 years and 1 year 5 months post cementation for #12 and 13, respectively (Fig.12).  The bone height increases at #13.
