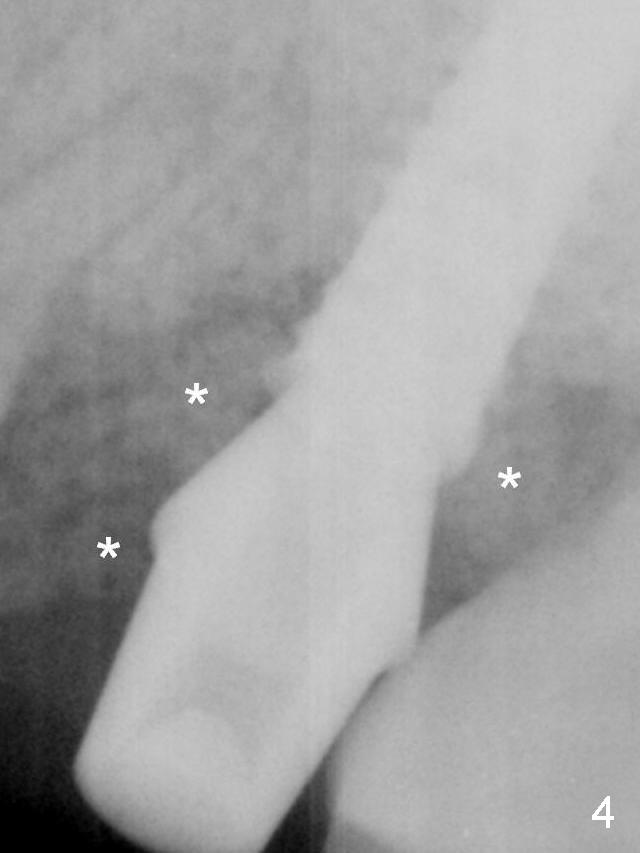

A 5x13 mm IBS implant is placed apical to the mesial and distal crest and coronal to the septum (Fig.2,3).  Insertion torque is ~ 35 Ncm.  A 6.0x5.7(4) mm pair abutment is chosen over a 6.5 mm one, because the implant is placed somewhat distally (Fig.4,5).  If the implant were placed more apically, the 4 mm cuff would be short for restoration.  Allograft and autogenous bone harvested from the MD is placed around the coronal portion of the implant and the abutment cuff (*).

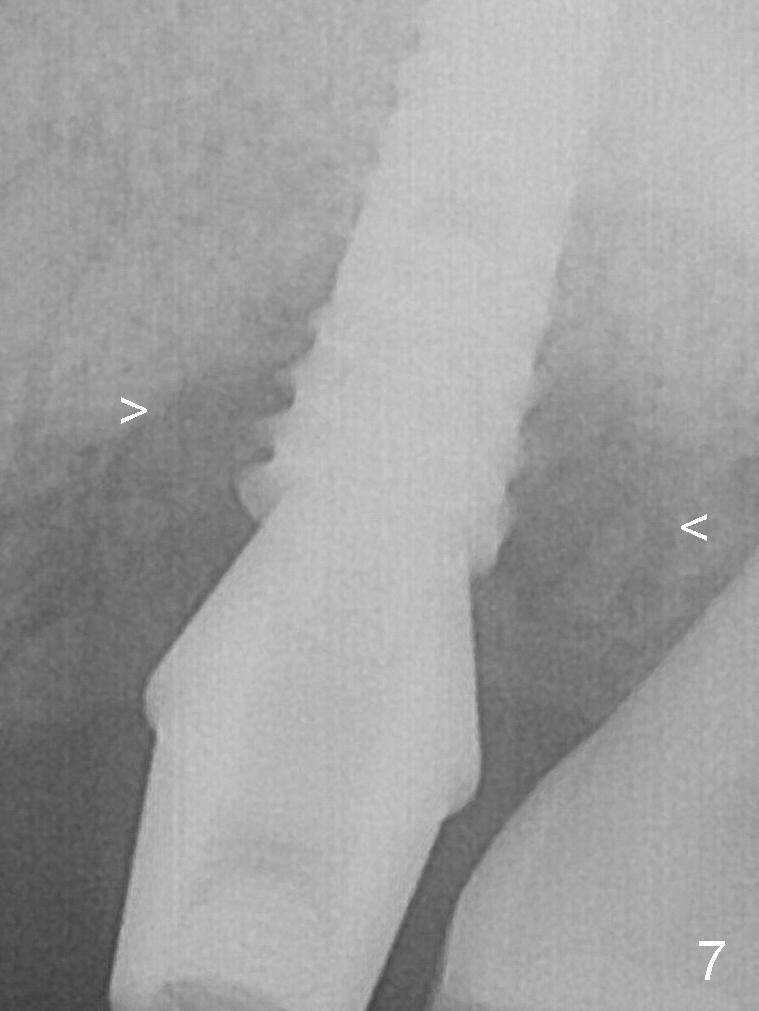

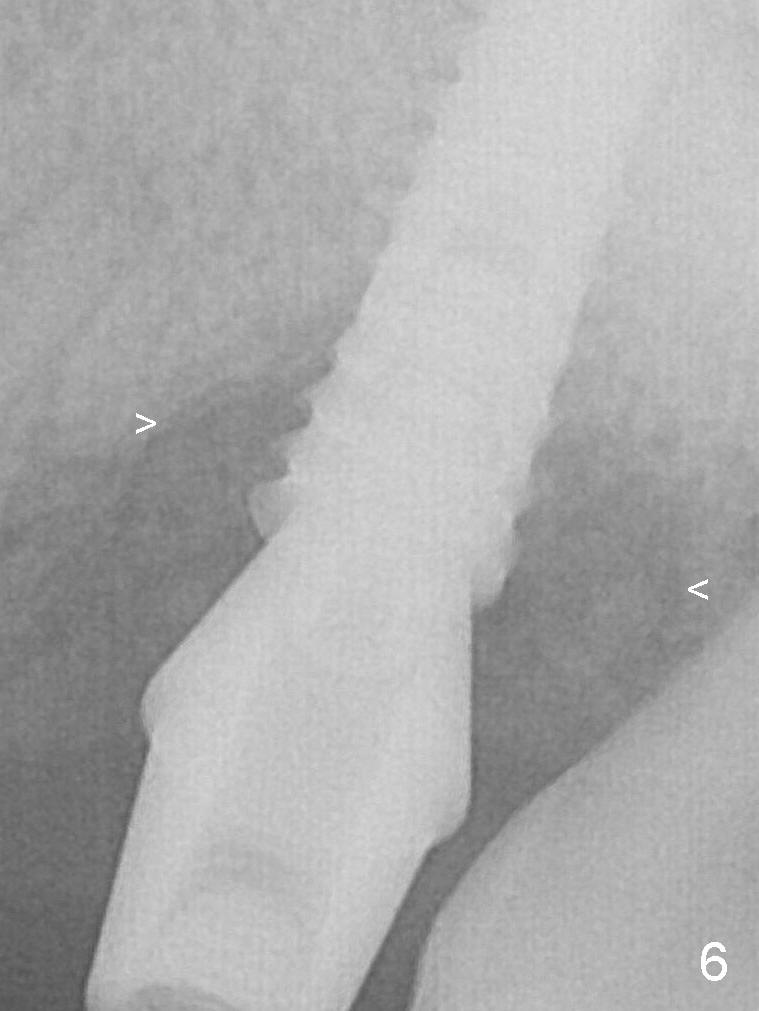

The amount of the bone graft mesial and distal the implant seems to reduce 3 and 4 months postop, respectively (Fig.6,7 arrowheads).  When the acrylic is cut off 4 months postop, the bone graft is loose.  The gingiva is unhealthy.  The abutment and implant are loose.  A healing abutment is placed (5x4 mm).

There are 3 possible reasons for implant loosening: 1. bruxism and almost simultaneous implant placement at #4; 2. poor oral hygiene associated with untrimmed provisional; 3. Implant not long and large enough.

The implant is placed distally.  Before impression, the abutment either needs to be trimmed distally or changes to an angled one.
