Wide, Think Gingiva and Narrow Bone

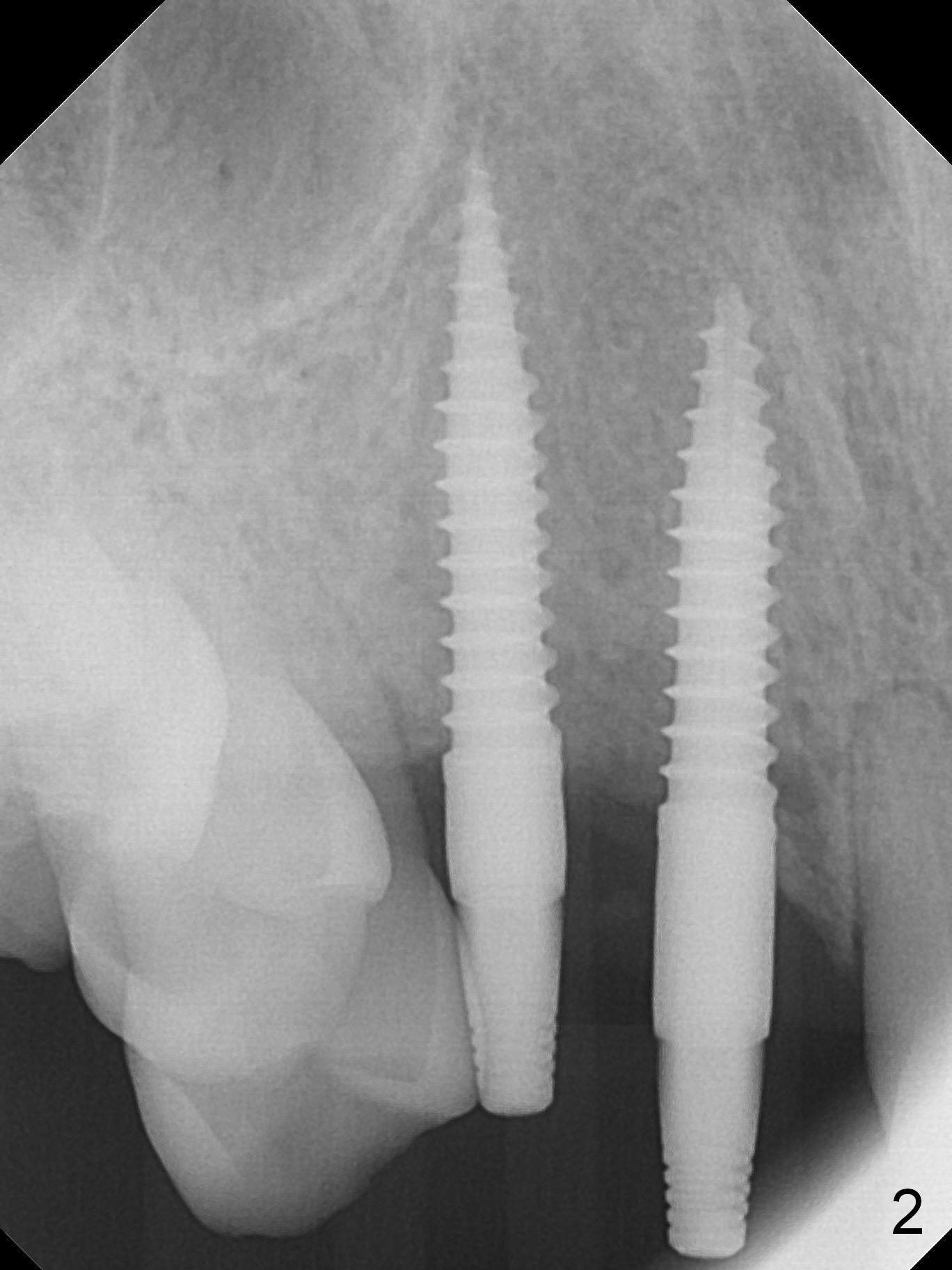

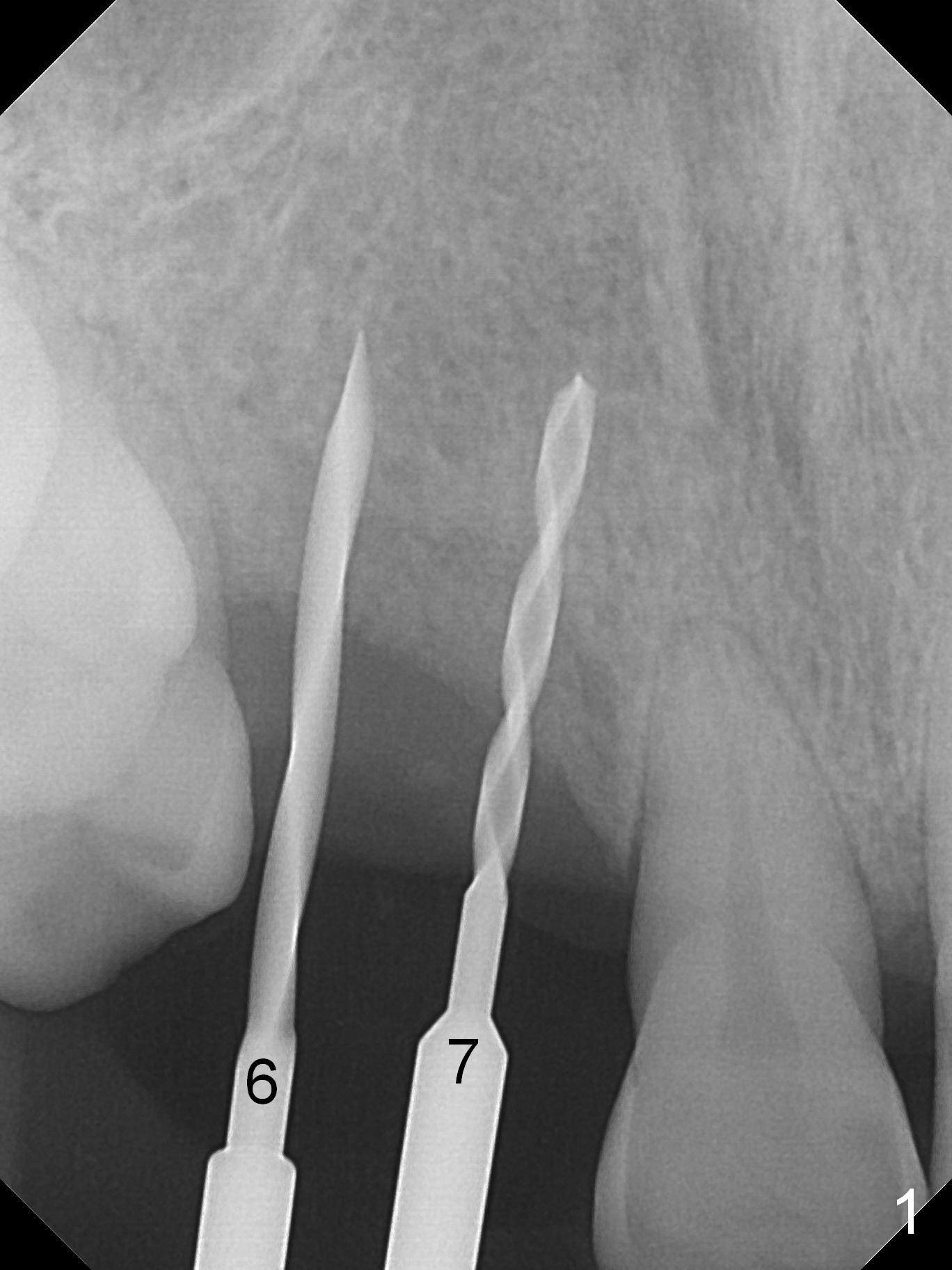

The ridge at the sites of #6 and 7 looks wide, but the bone is narrow (~ 4 mm) when the flaps are raised.  Two of 3 mm 1-piece implants (3x16(2) and 3x14(4) mm) are placed (Fig.1,2).  The other advantage of use of 1-piece implants is the narrow mesiodistal space.  In fact the gingiva is wide and thick (4 mm).  It is ideal to place implants with 4 mm cuff; unfortunately there is no 3x16(4) mm implant available at the site of #6.  After adjustment of the abutment at #7, a splinted provisional is fabricated.  Due to the shortness of the abutment at #6, definitive crowns may have to be splinted.  Water Pik has been recommended.

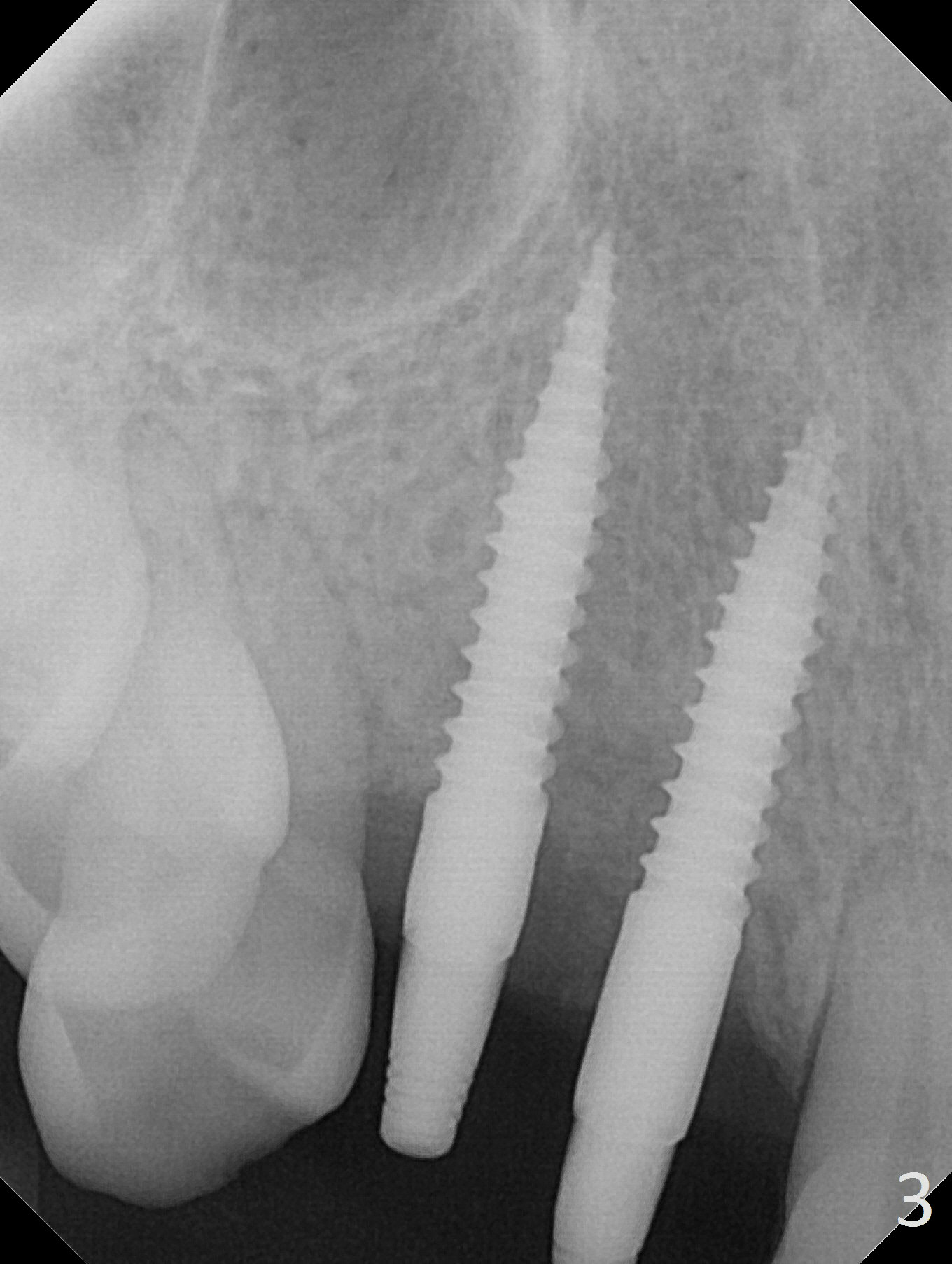

There is no bone loss 3 months postop (Fig.3).  After reprep (Fig.4), shades are selected for the final crowns (Fig.5).  Before crown cementation at #6 and 7, the patient notes asymmetry with the teeth on the other side (Fig.6).  Our concerns are the lack of the papilla distal to #6 (Fig.7 * (multiple modification of provisional needed)) and slight inflammation due to insufficient oral hygiene (^).
