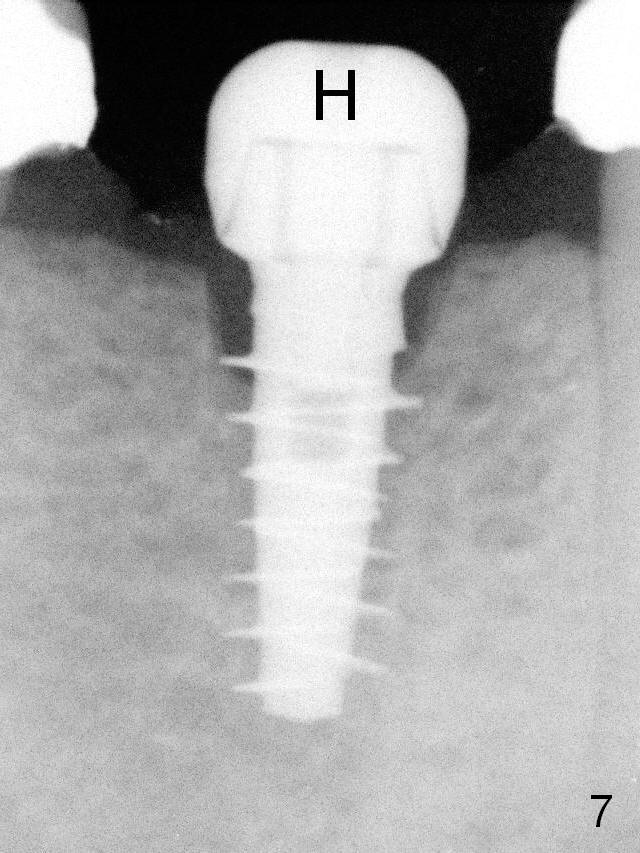

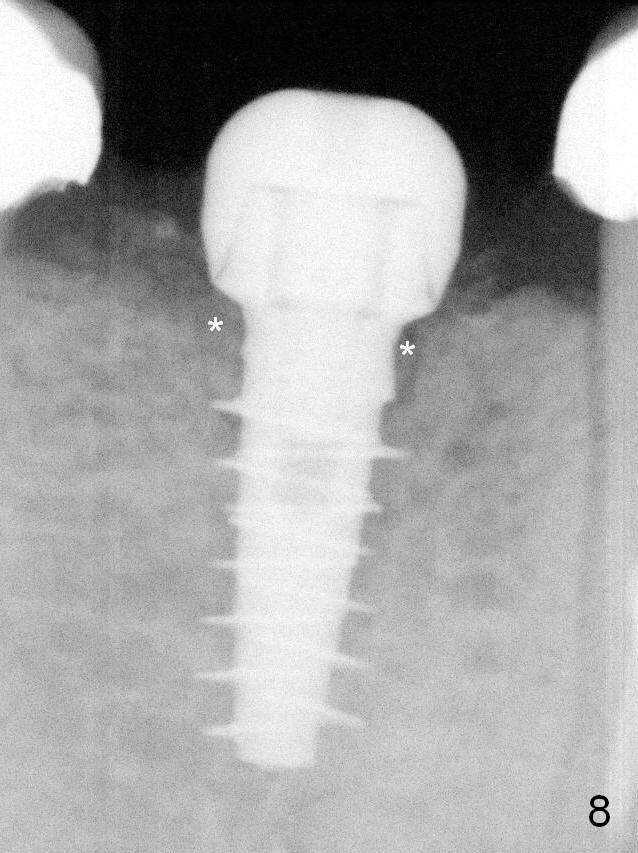

A 4.5x9(1) mm Magicore is placed with 35 Ncm (insertion torque) after 4.3 mm Magic Drill; a 4.5 mm healing abutment is inserted (Fig.7 H).  An error occurs because of using 1 mm cuff of the Magicore.  Ideally 3 or 4 mm cuff should have been used because of reduction in the ridge by ~ 3 mm (Fig.2).  The result of the error is failure of placing the implant at the desirable depth (<9 mm).  The coronal threads are exposed and have to be covered by bone graft (autogenous bone and allograft (.5-1.5 mm) (Fig.8 *), followed by collagen dressing.

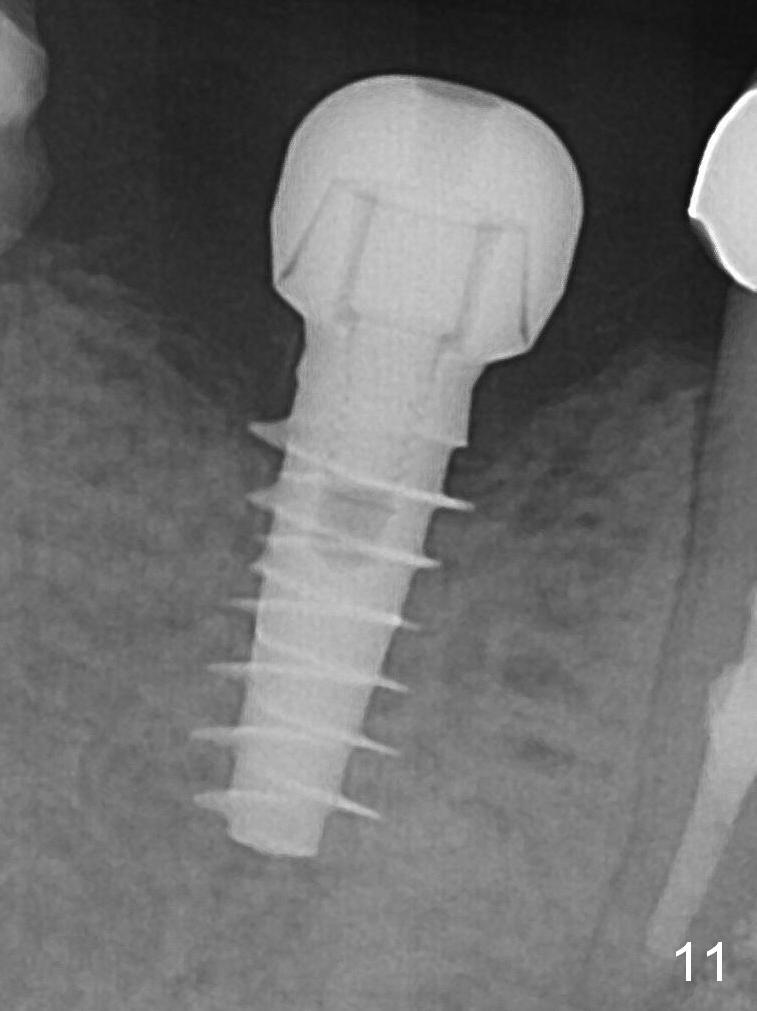

Splinted provisional is fabricated #30 and 31 one month postop.  The patient returns for final restoration (single units) nearly 4 months postop (Fig.11).  Since the margin is subgingival, please fabricate a screw type crown for #30.
