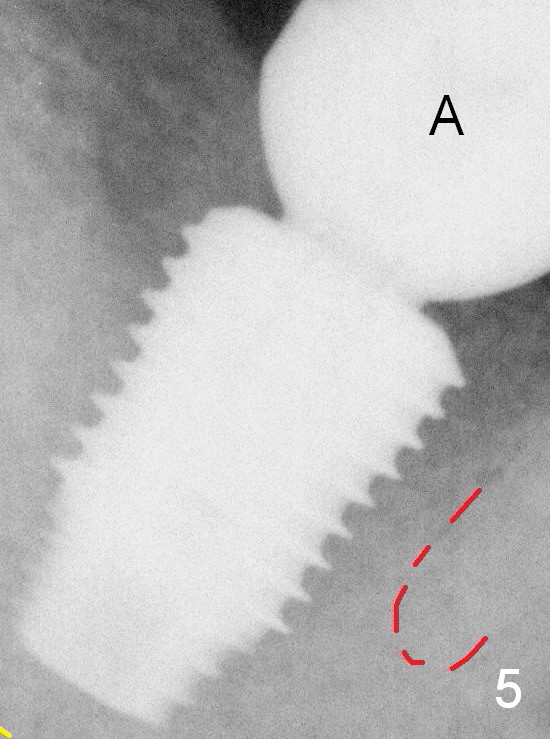

A larger implant is placed (6.9x10 mm Fig.5) with insertion torque 50/60 Ncm.  The implant appears to invade buccal space.  The buccal plate appears to be thin.  A 7.8x4(4.5) mm abutment (A) is placed immediately for immediate provisional fabrication.  The harvested autogenous bone is mixed with Osteogen and placed in the distal remaining socket.  Combination of the abutment and provisional keeps the bone graft in place.  Red dashed line: the distal root of the tooth #30.

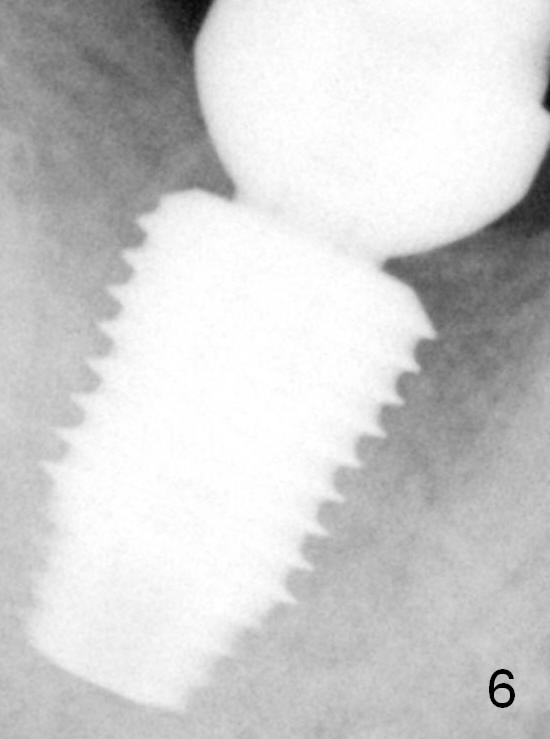

The patient returns with provisional dislodgement 3 months postop.  PA is taken without bone loss around the implant (Fig.6).  In fact the coronal periimplant space appears to have closed.
