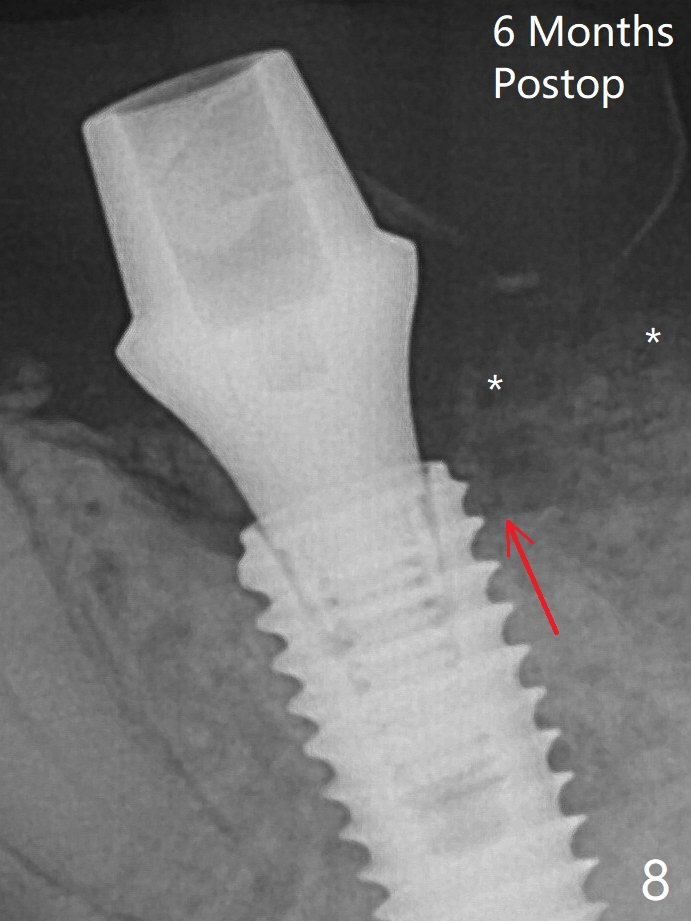

With all of measures taken (including periodontal dressing), the distal bone graft (Fig.8 *) is ~ 2 mm coronal to the crestal bone (red arrow) 6 months postop.  G: graft; <: septal crest.  In fact the abutment is incompletely seated.  The temporary crown is perforated.  The gingival cuff is erythematous.  A 6.8x5 mm healing abutment is installed.   When the patient returns for impression, take BW to determine whether the healing abutment contacts the crestal bone.

Graft Retention Last Next

Xin Wei, DDS, PhD, MS 1st edition 12/19/2019, last revision 08/30/2020
