Implant Placed Deep Enough?

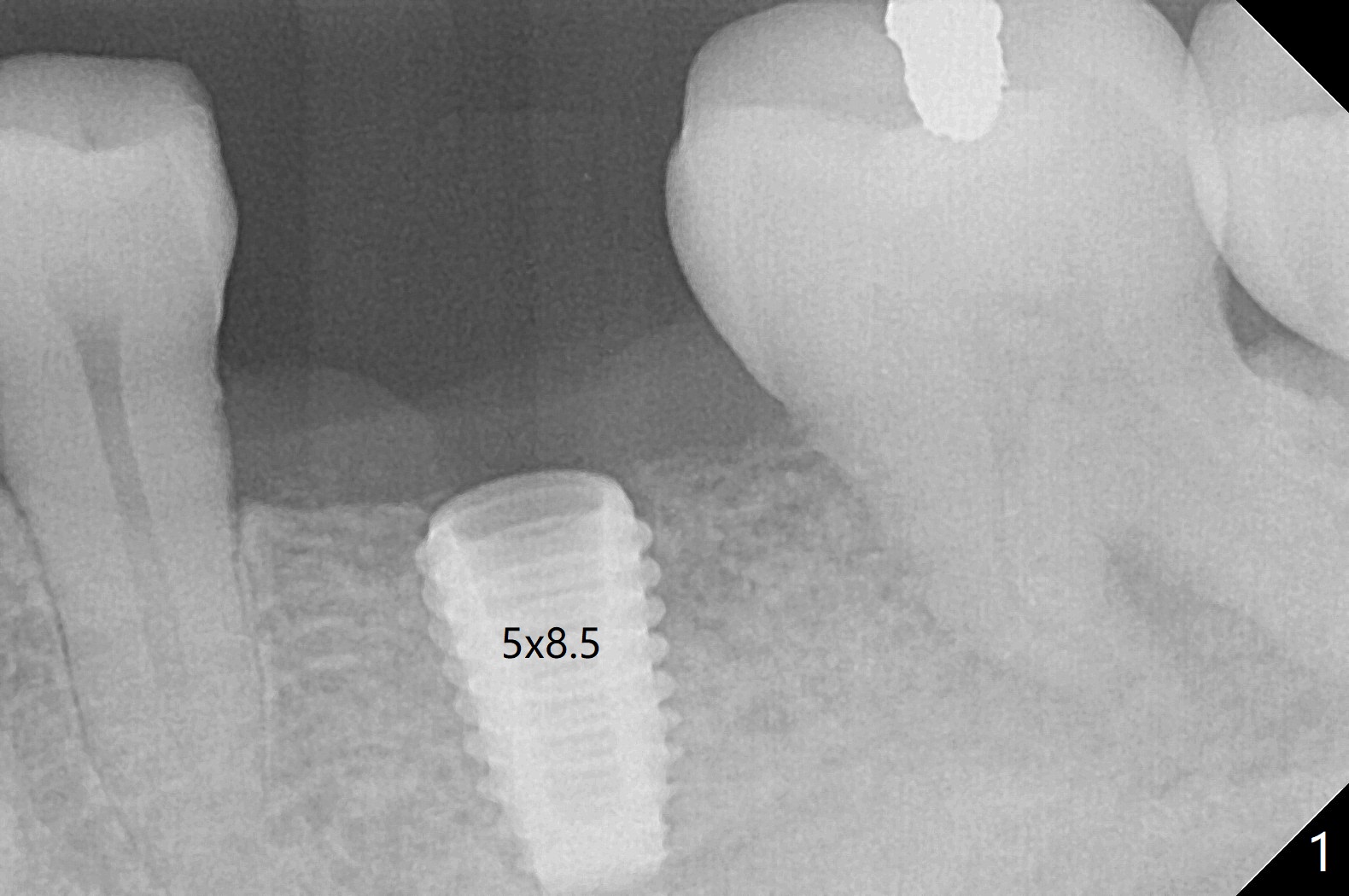

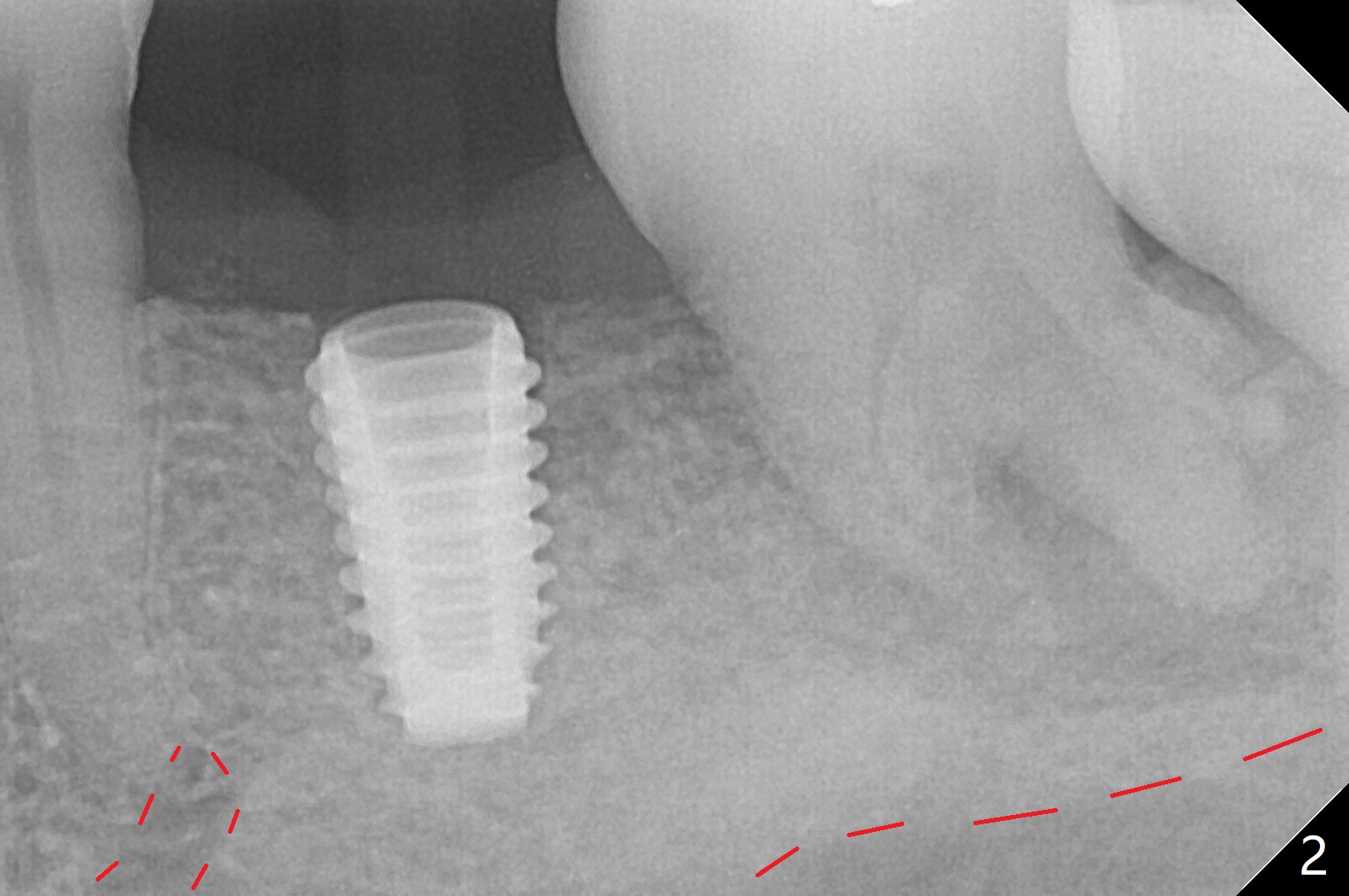

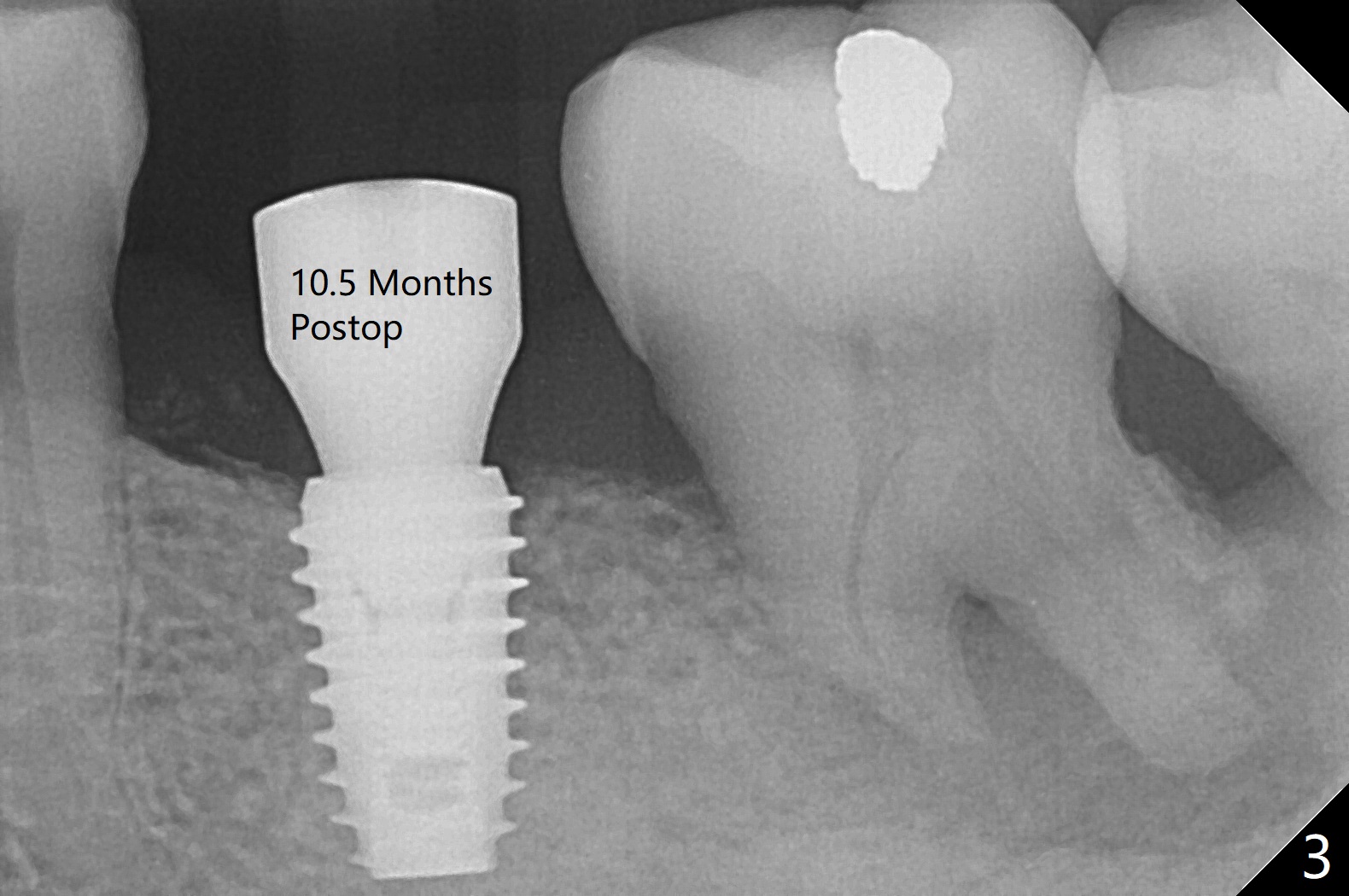

After use of 4.5x8.5 mm guide drill at #19, a 5x8.5 mm implant is placed with guide in place. When the latter is removed, the implant is found to be placed shallow.  Following use of 4.5x10 mm drill for ~.75 mm deeper, the implant returns with deeper placement (Fig.1,2), confirmed after guide removal.  The implant is further torqued 3 more times with visual confirmation of implant deeper placement.  After seating a 5.5x5(3) mm healing abutment, autogenous bone graft is placed between the gingiva and the abutment to reduce chance of periimplantitis.  The patient reports more severe pain (bone burn?) than free-hand placement at #30.  In fact there is no bone loss around the implant 10.5 months postop (Fig.3).

Return to Lower Molar Immediate Implant, Trajectory 31 Xin Wei, DDS, PhD, MS 1st edition 11/12/2018, last revision 09/24/2019
