1-Piece Implant at 1st Molar Site

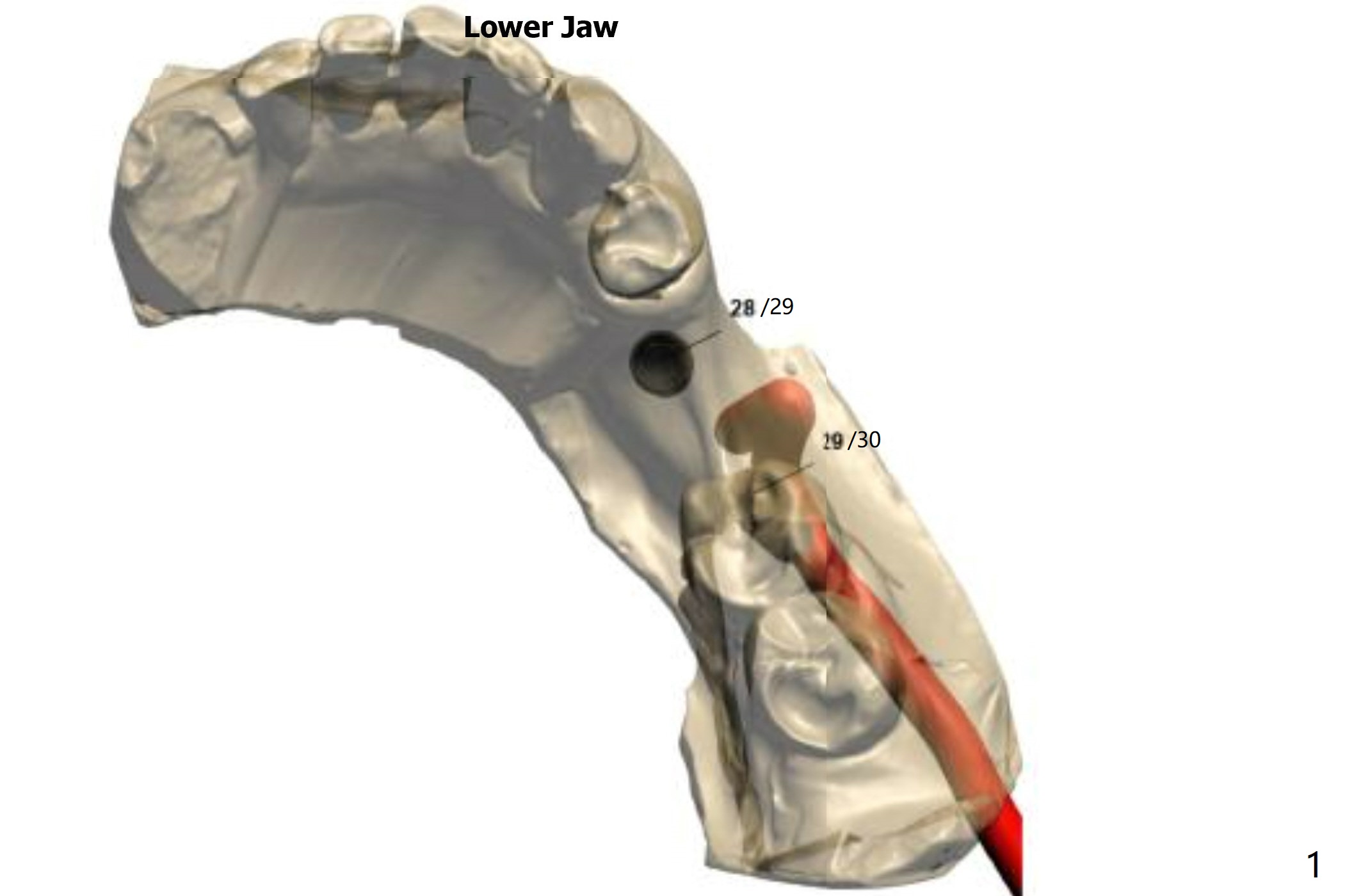

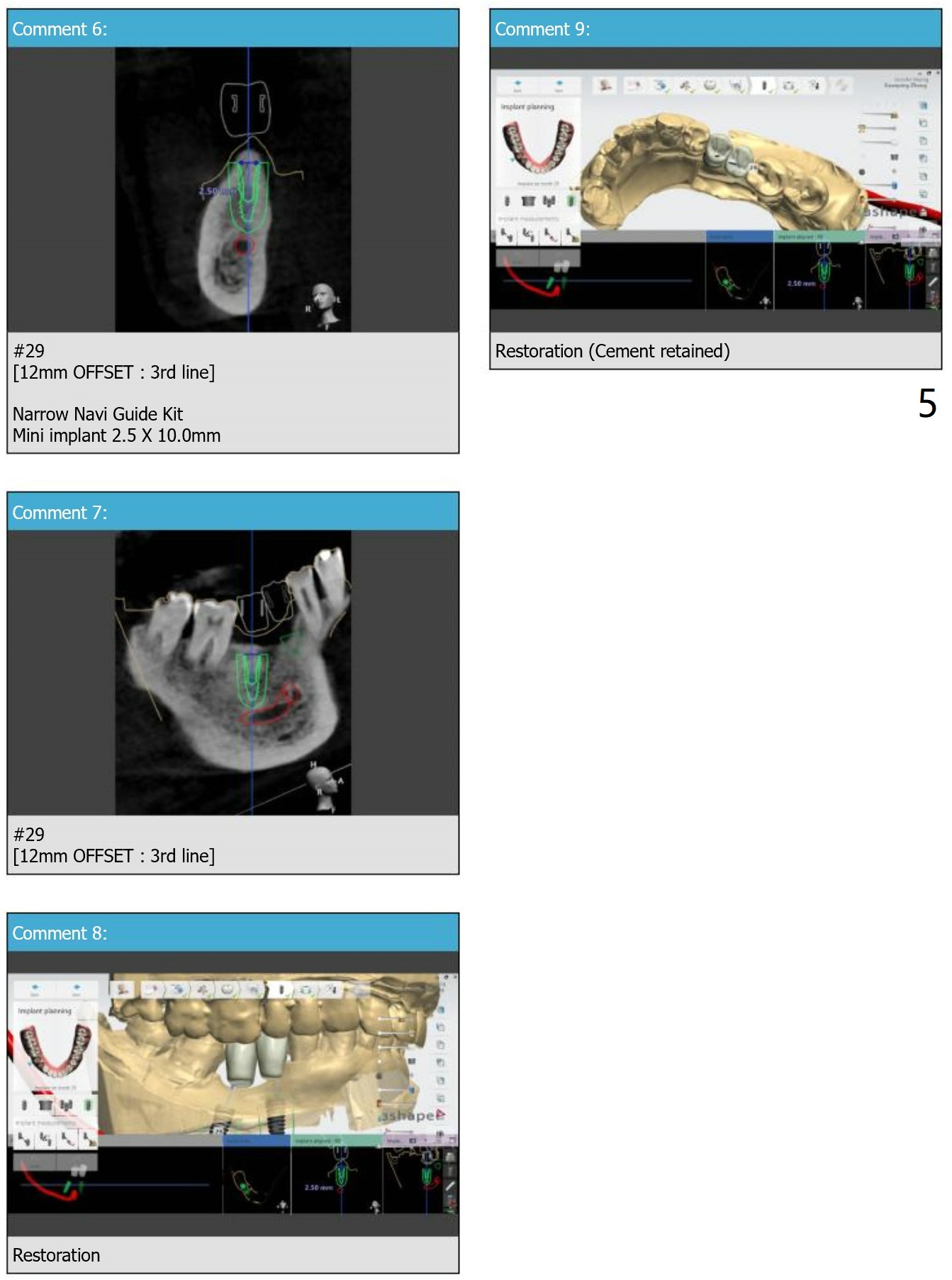

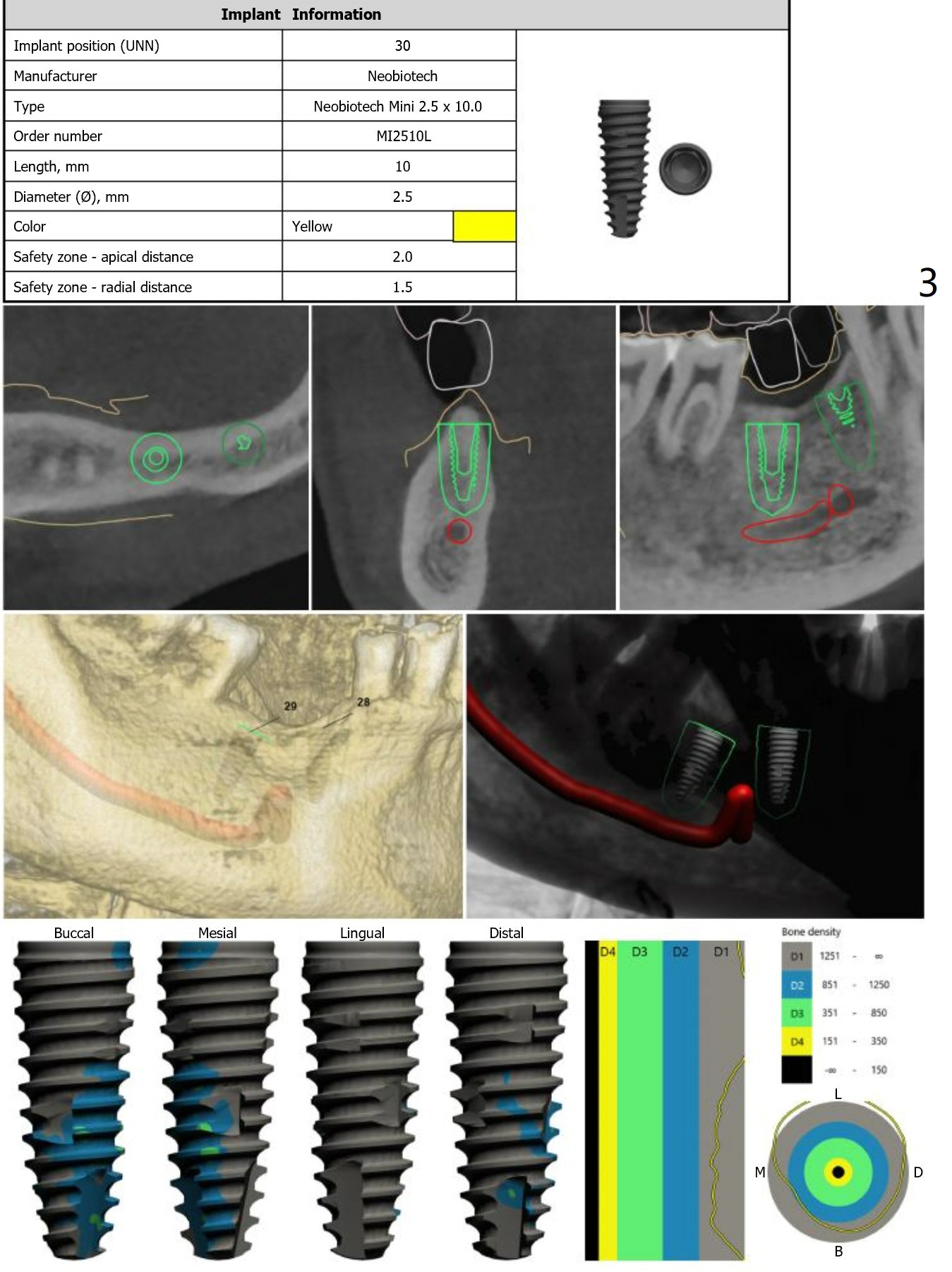

A 63-year-old man requests implant(s) at #29 and 30 to replace the lower RPD after implants at #15 and 19 (Fig.1).  Because of the narrow mesiodistal space, two bicuspids will be fabricated.  Due to the narrow buccolingual width, a 2.5 mm 1-piece implant will be placed at #30 (Fig.3, 5).  The latter will be tilted to avoid the Mental Foramen.

Return to Lower Molar Premolar Immediate Implant, Trajectory
Xin Wei, DDS, PhD, MS 1st edition 04/26/2019, last revision 09/16/2019
