导板-3 毫米补偿

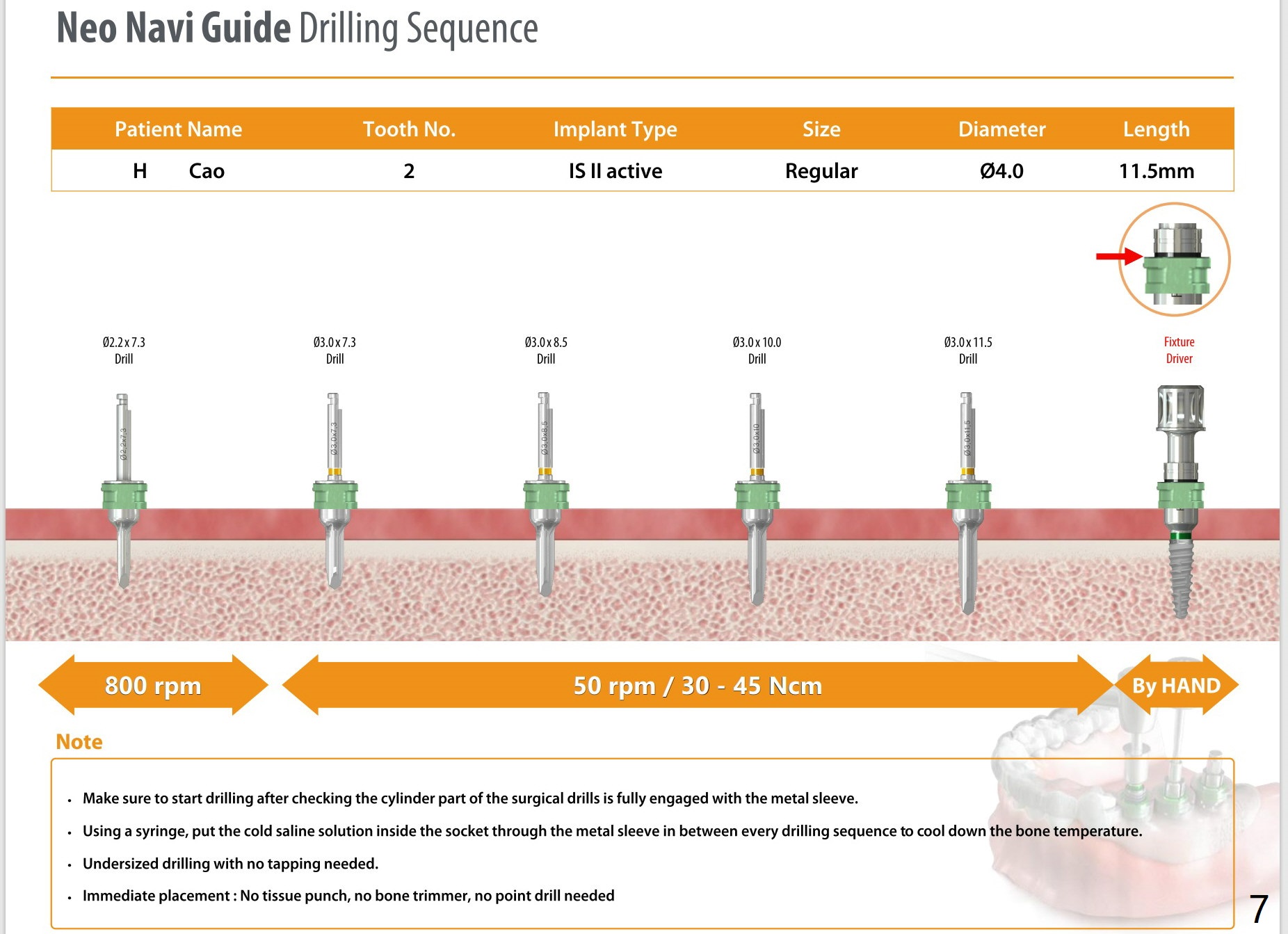

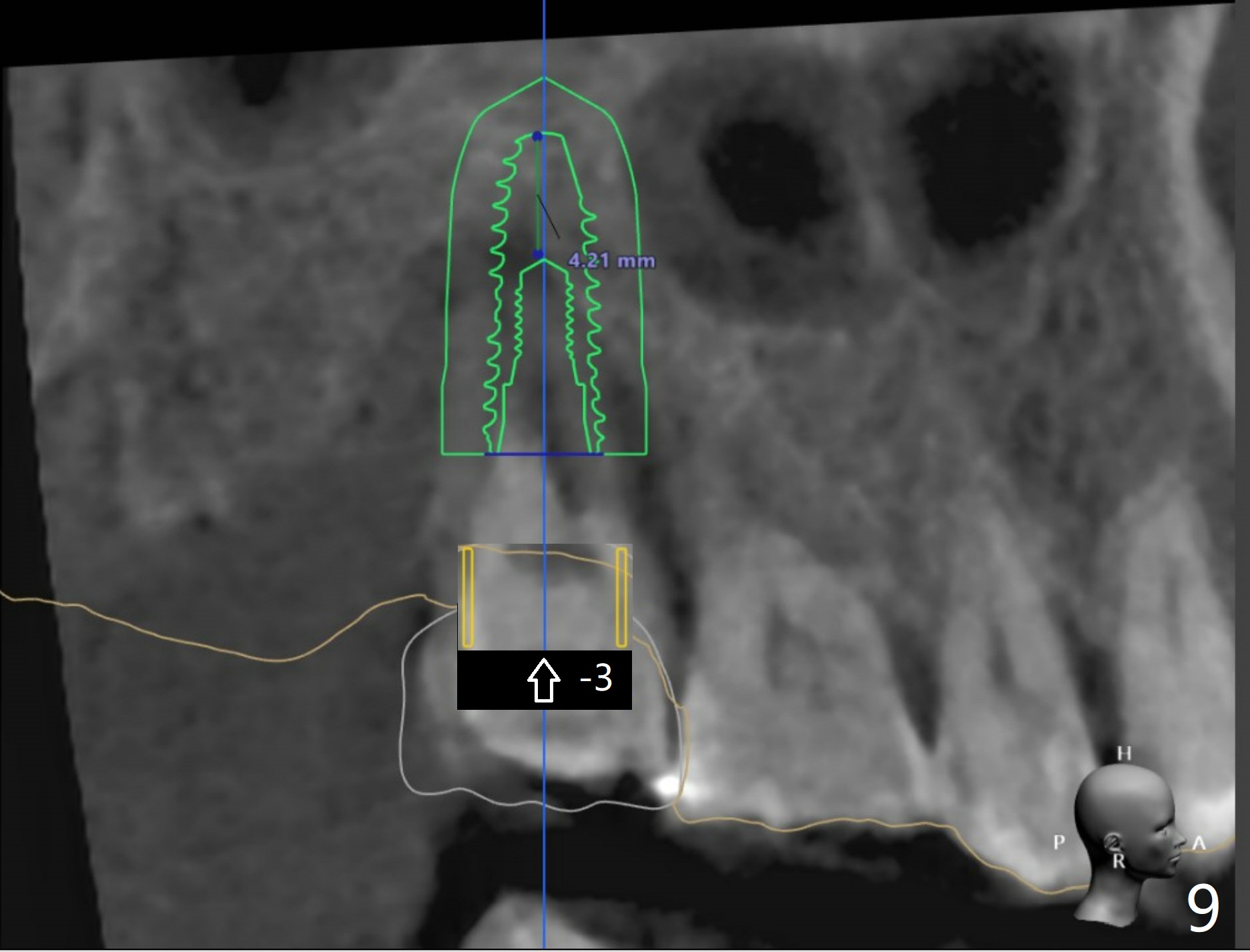

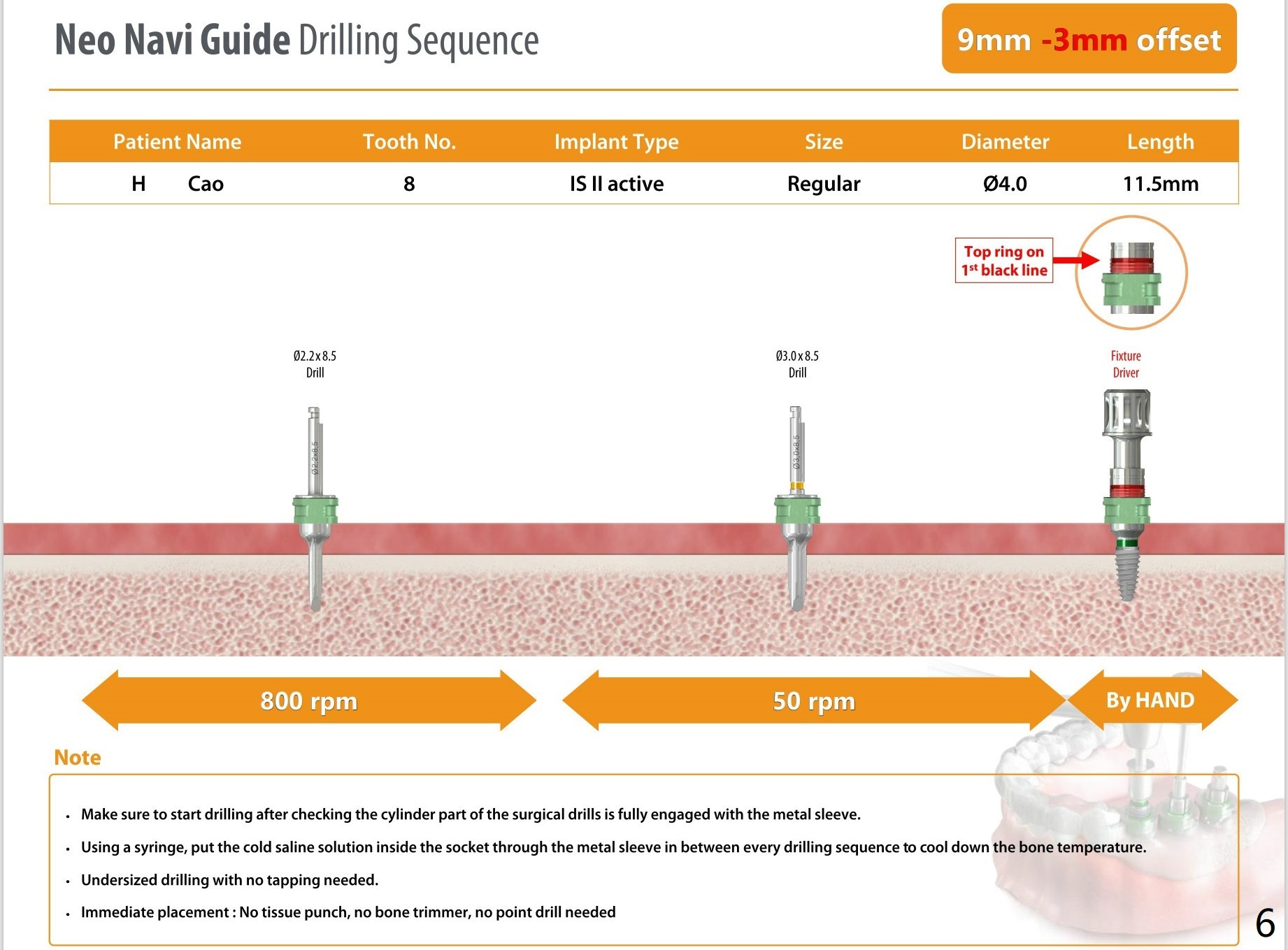

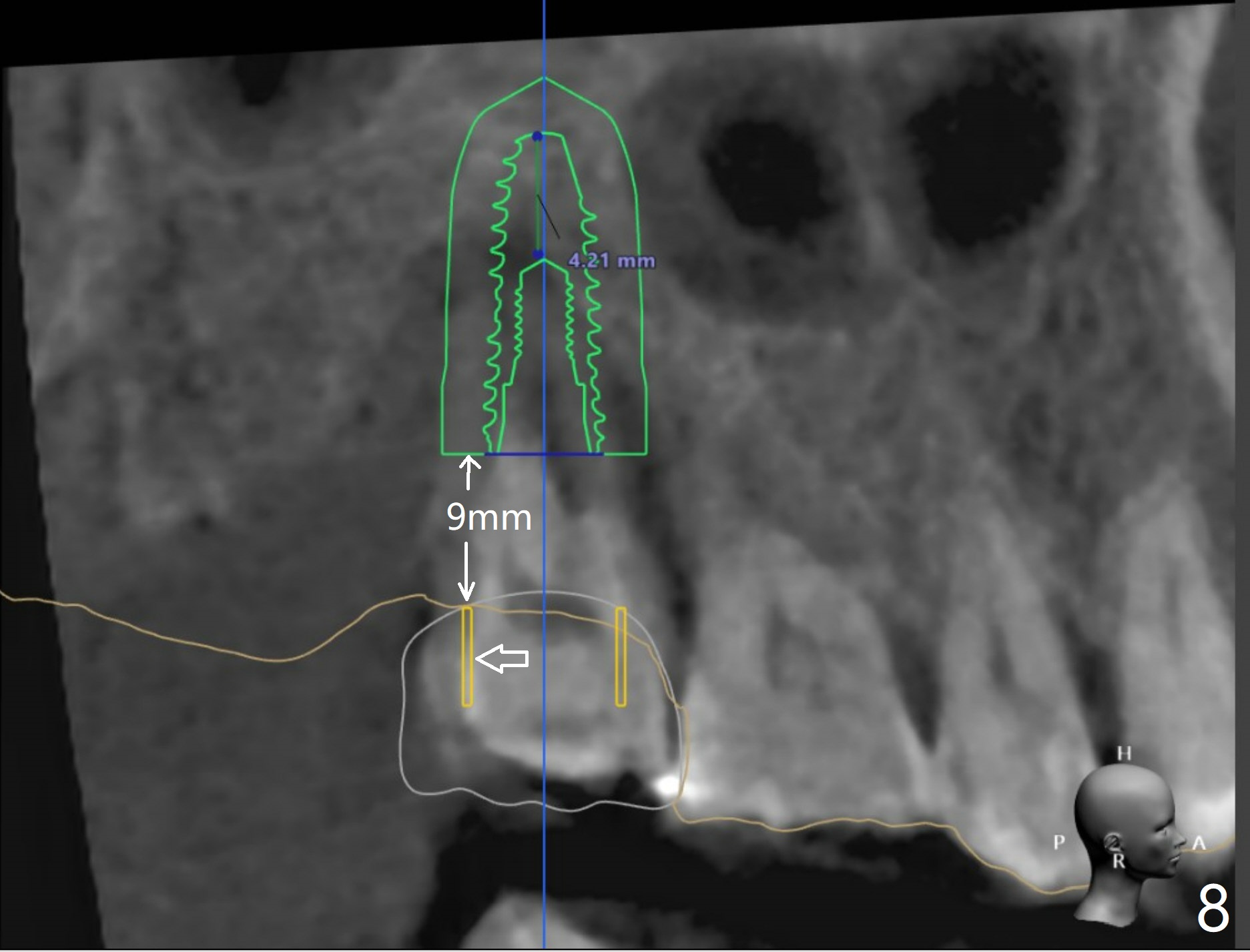

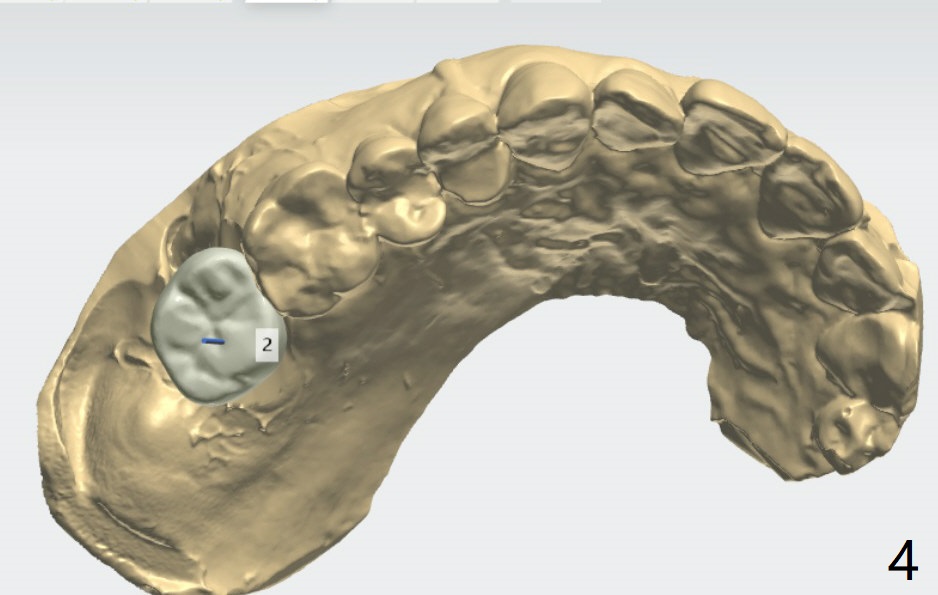

# 2 Offset : 9mm (-3mm offset) : While I was reviewing the data, I noticed that you can use 8.5mm length drill instead of adding extra o-rings. But still you have to add 4 red o-rings to the fixture driver for implant placement. Bloodx2. Rubber dam punch. IBS (Titanium V) if possible.
Return to
No
Caries
No Antibiotic
导板与内提升
Xin Wei,
DDS, PhD, MS 1st edition 02/04/2021, last revision

02/16/2021
