Vertical Height

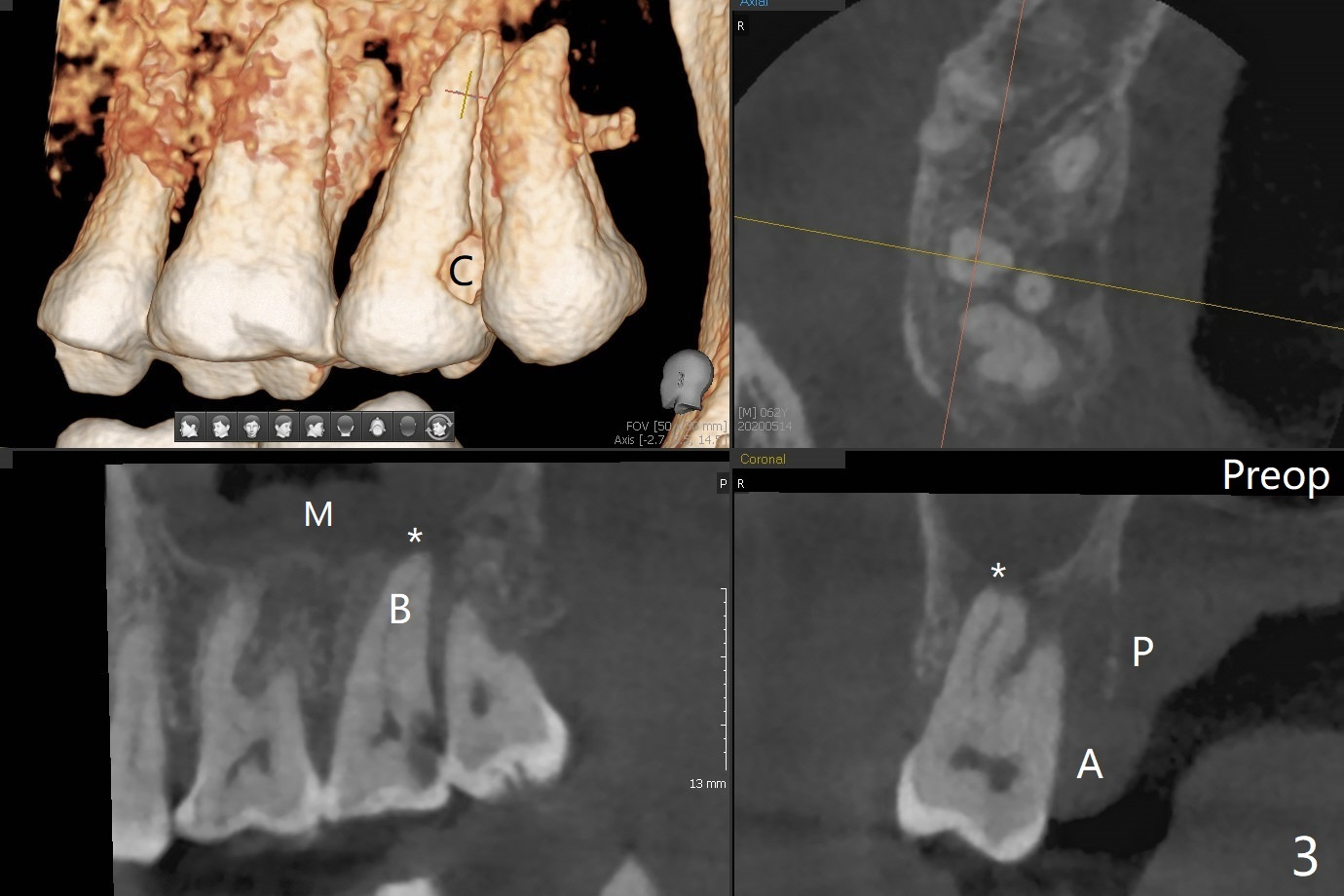

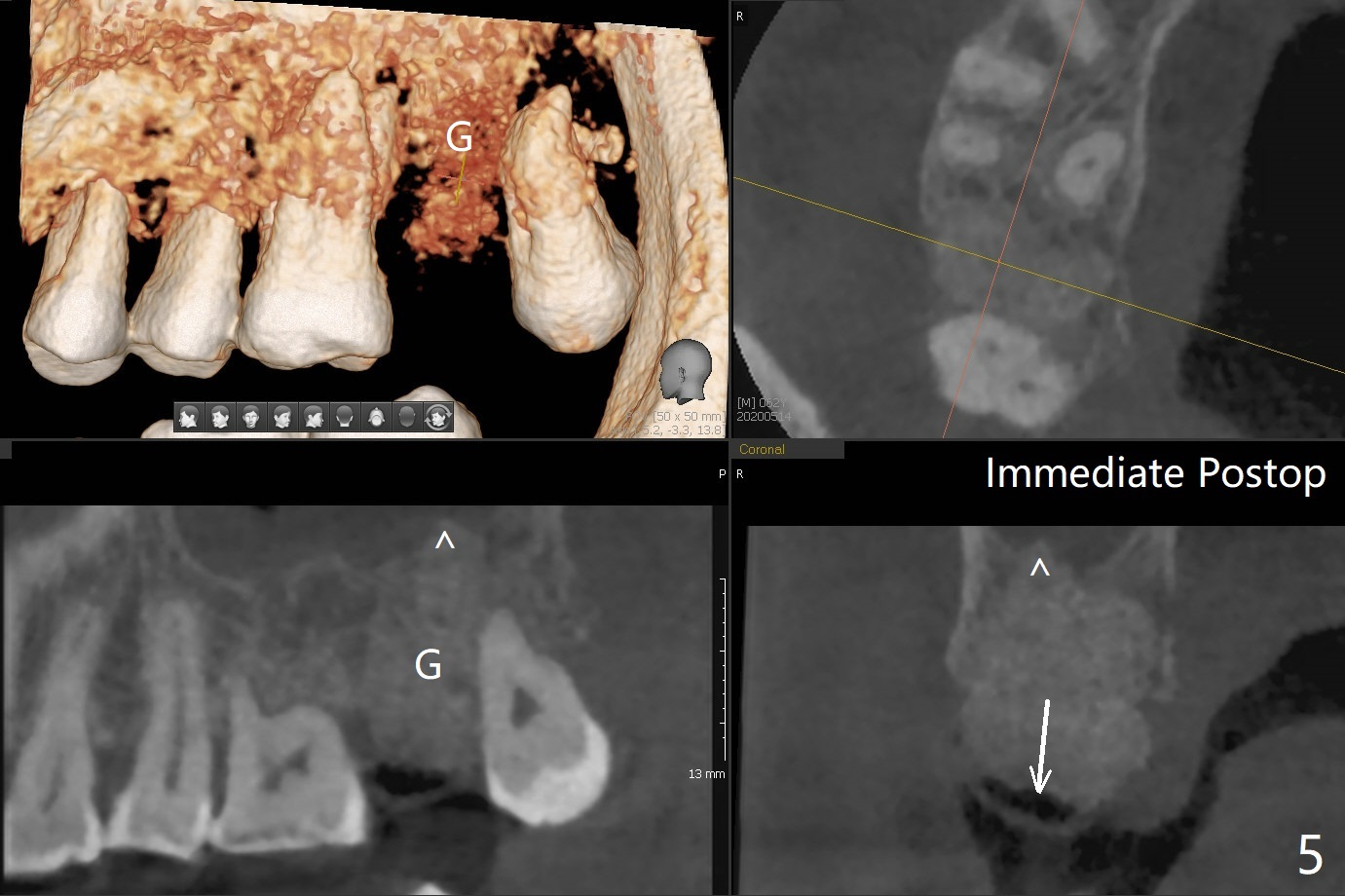

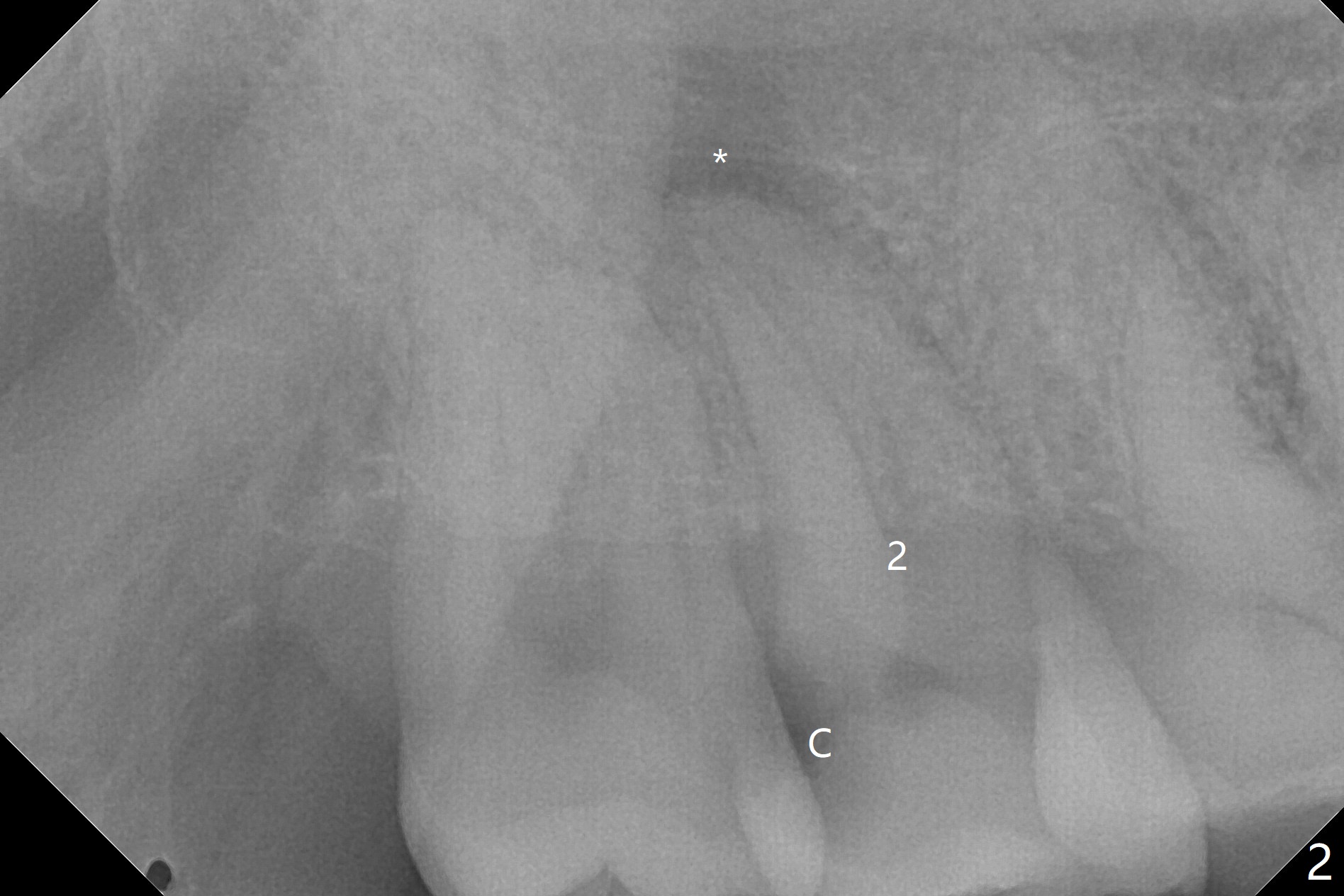

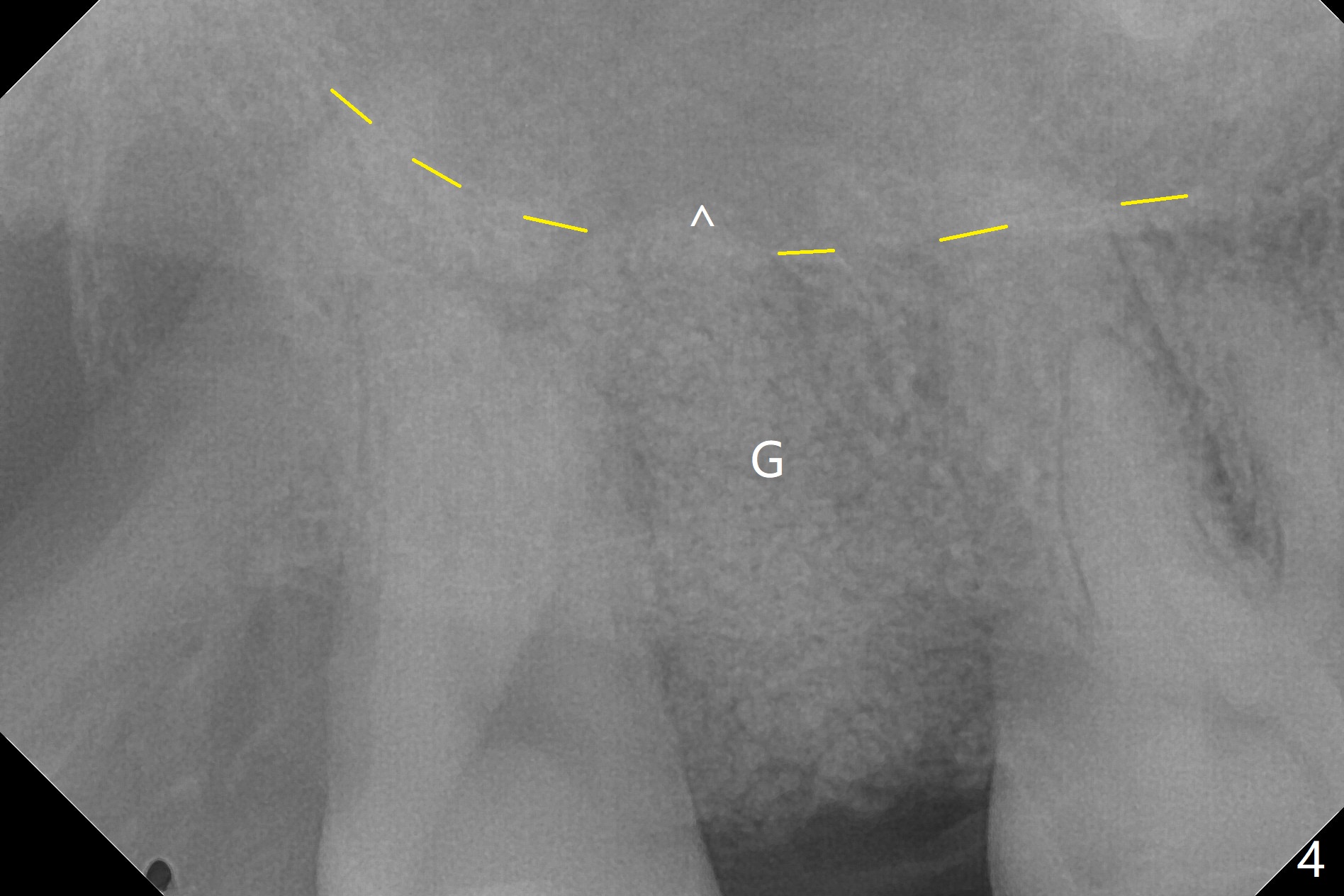

A 62-year-old man has palatal abscess with deep pockets (Fig.1 A) at tooth #2 with DO caries (Fig.2 C).  The patient agrees with extraction and bone graft.  Preop CT shows the palatal (P) wall defect and buccal (B) socket perforation (Fig.3 *).  It should be easy to do sinus lift with the thick sinus membrane (M).  To maximize hard tissue regeneration, GEM21S is used to hydrate ground cortical chips (particle size: 125μm – 850μm)) and cortical/cancellous allograft (.5-1 mm) for socket preservation (Fig.4 G) and sinus lift in the buccal socket (^).  Due to swollen soft tissue and overpacking, the bone height increases (Fig.5 arrow).  The socket opening is closed with GEM Cap and Perio Glue as well as perio dressing.

Return to No Deviation
Xin Wei, DDS, PhD, MS 1st edition 05/14/2020, last revision 05/14/2020
