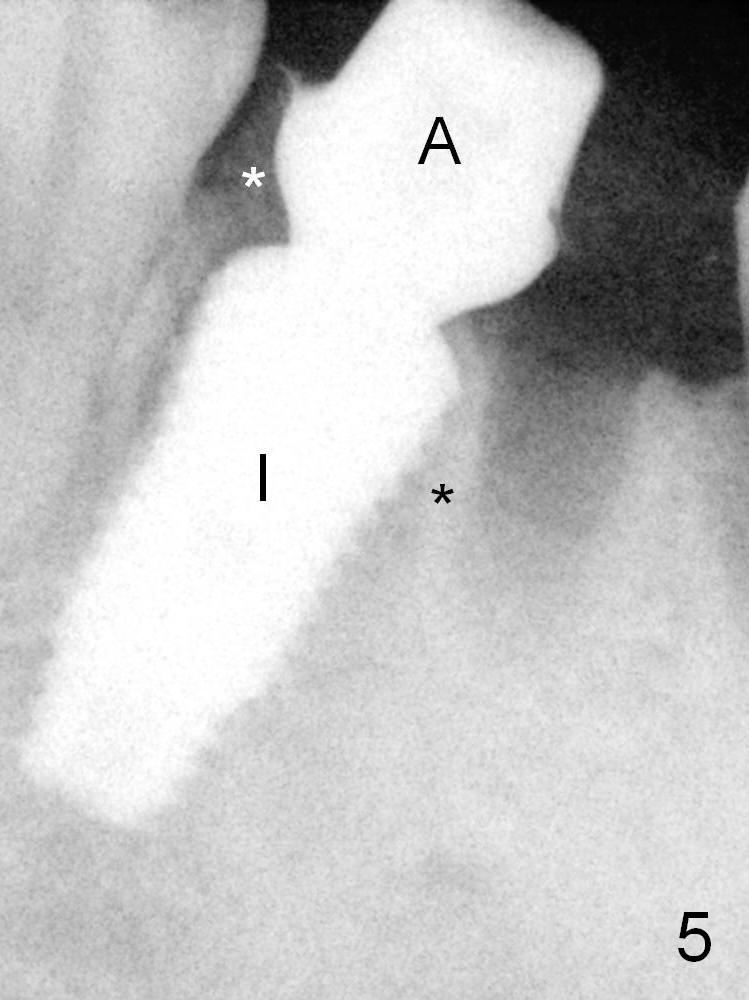

Off axial placement of the implant (Fig.5 I) and abutment (A) is striking in the immediately postop PA (Fig.5).  Black *: septum; white *: bone graft.

In other word, the implant is placed mesially.  There would be a problem if the patient wanted to move #20 distally orthodontically.

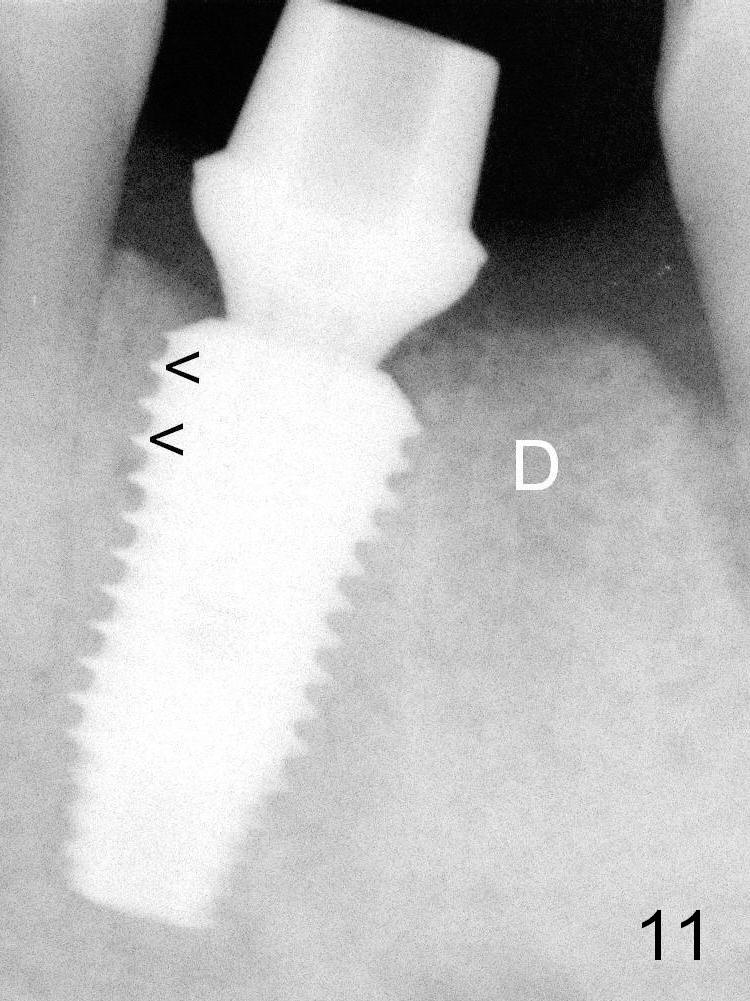

Four months postop, the bone density in the original mesial (Fig.11 <) and distal (D) sockets increases, suggesting osteointegration.

Septum Placement
