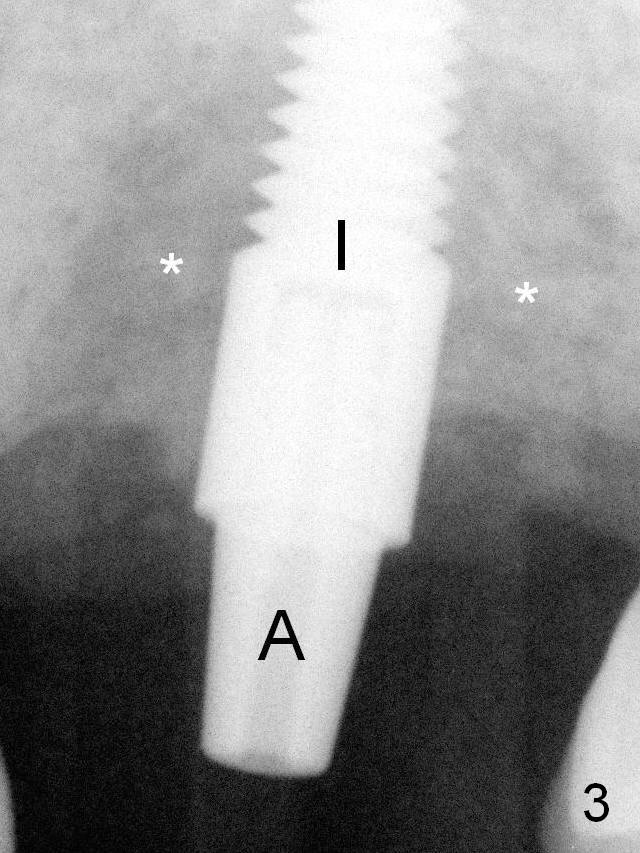

A 4.5x17 mm tissue-level implant is placed (Fig.3 I) with insertion torque >60 Ncm.  Allograft and Osteogen are placed around the bulging buccal and lingual plates (*).  Collagen membrane with a hole in the center is fixed around a 3.5x5 mm abutment (A).  An immediate provisional is fabricated mainly for wound protection and perio dressing fixation.

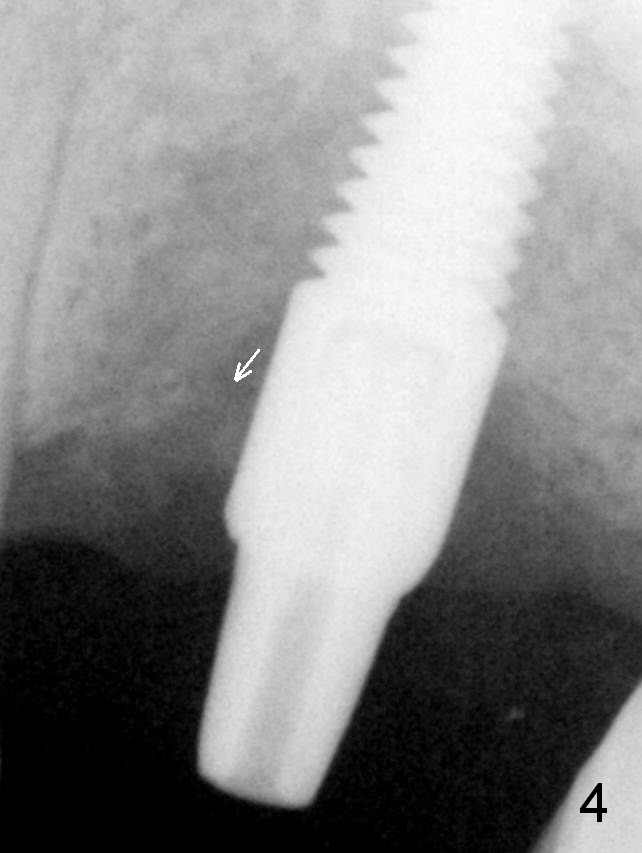

The patient returns 3 months postop; the bone graft appears to have been displaced mesioocclusally (Fig.4 arrow).
