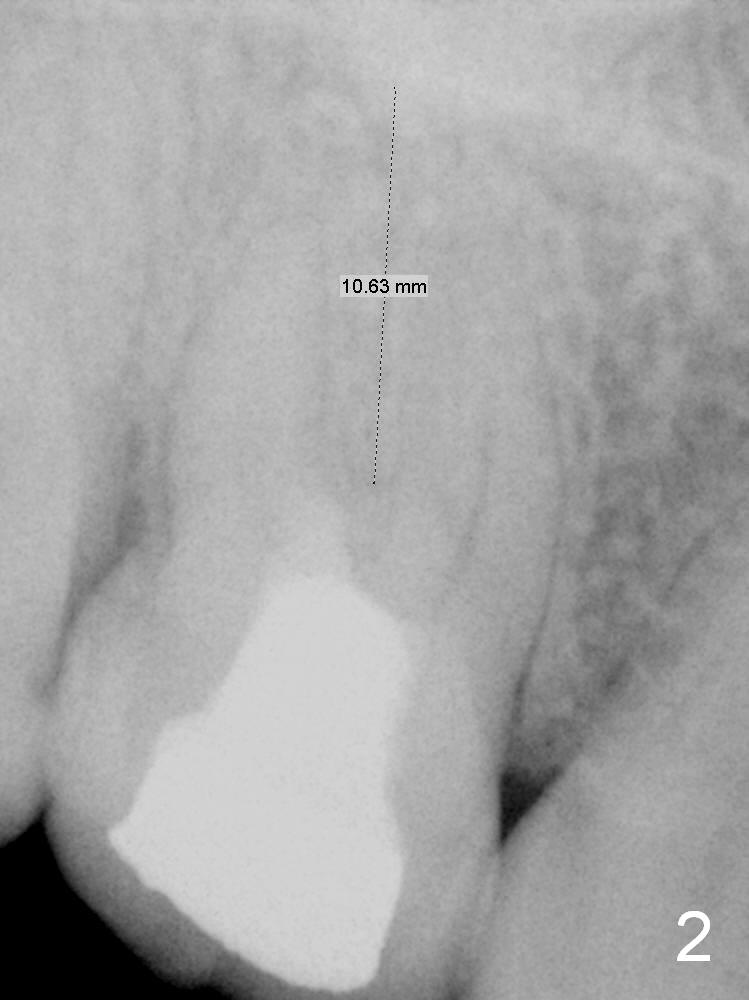

Fig.2: Prior to RCT, the outline of the septum is discernable.  Its height is ~ 10 mm.

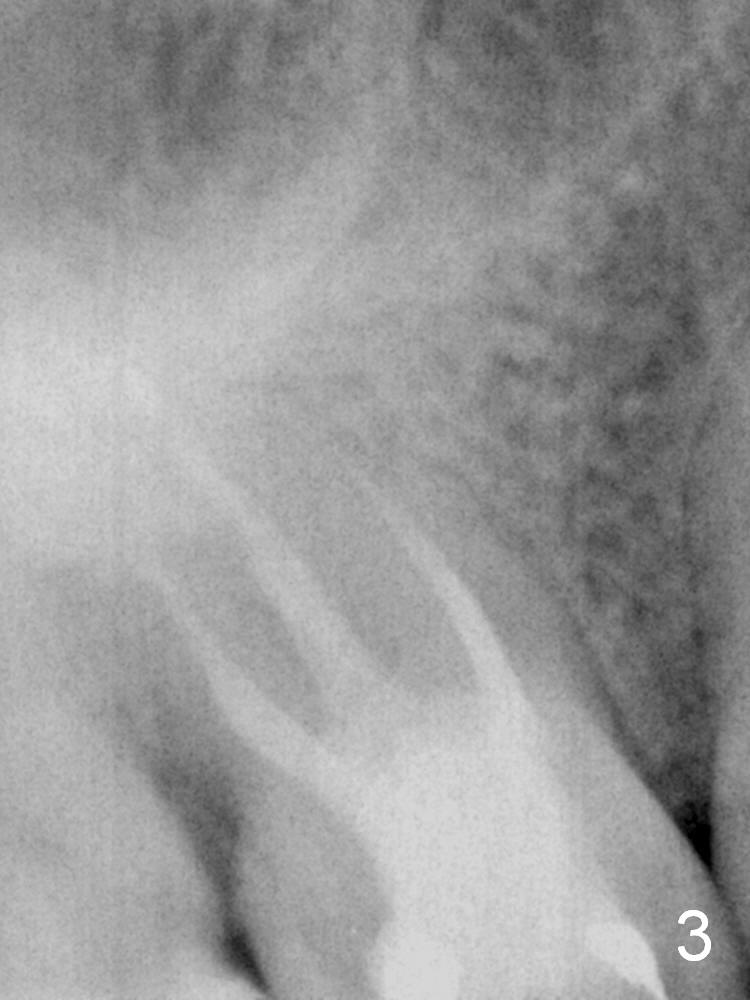

After RCT, the outline of the septum is hard to be detected.  In fact the mesiolingual cusp fractures subgingivally (Fig.3).  This PA can be used for implant design.
