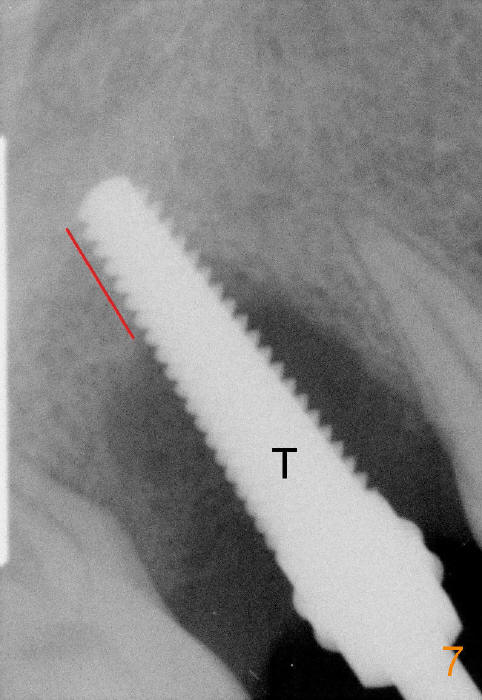

When a 4.5x20 mm tap (Fig.7 T) is inserted, the new bone gained is limited (red line).

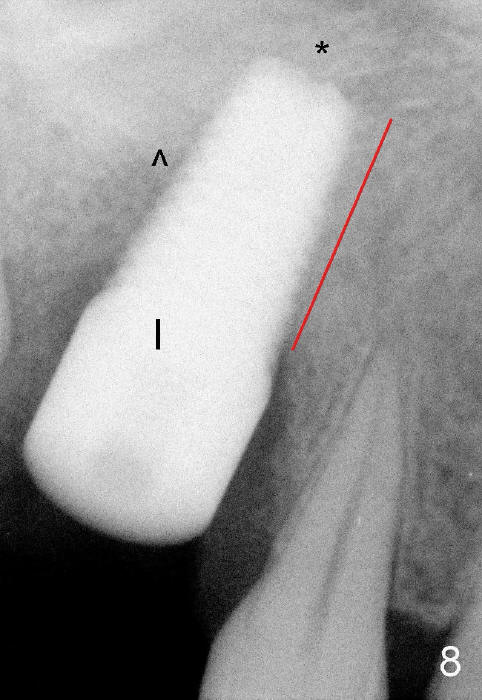

It appears that when a 7x17 mm implant is placed (Fig.8), the bone contact is increased vertically (red line) as the diameter of the implant increases.  ^: sinus floor; *: bone present apical to the implant.
