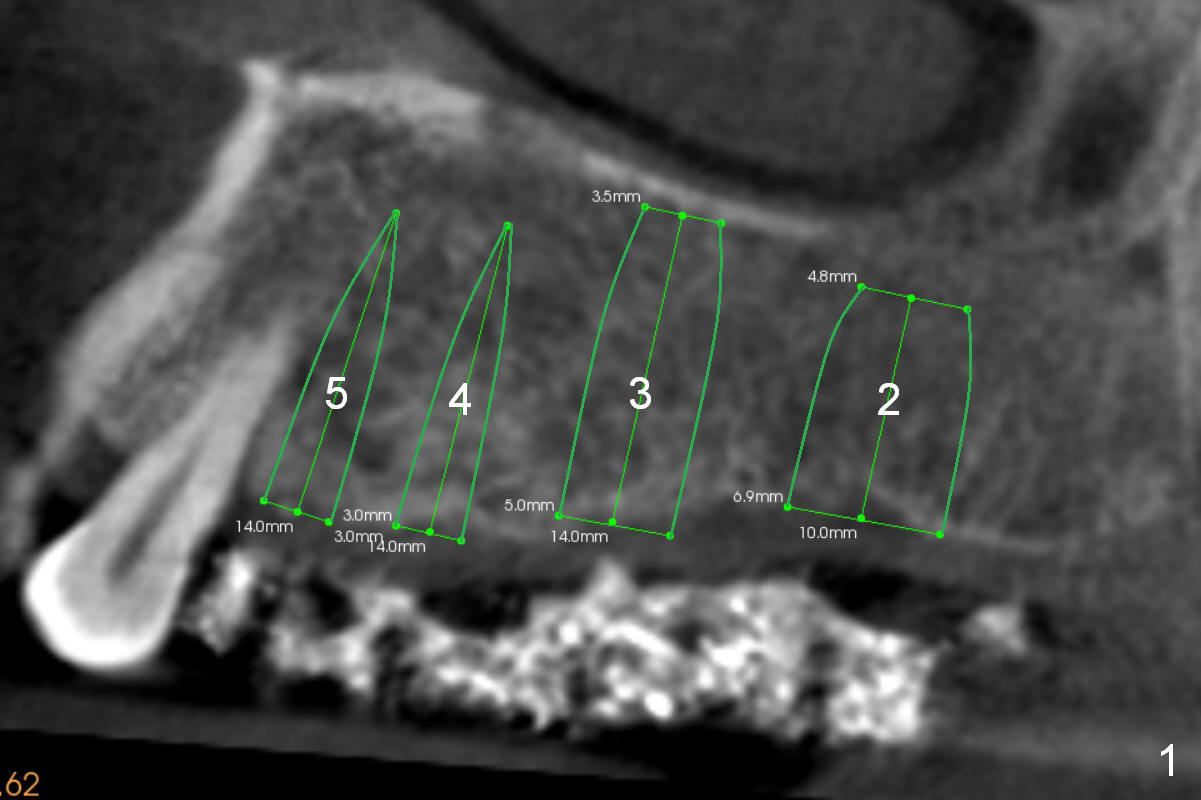

From 1-Piece to Extra Wide Implants

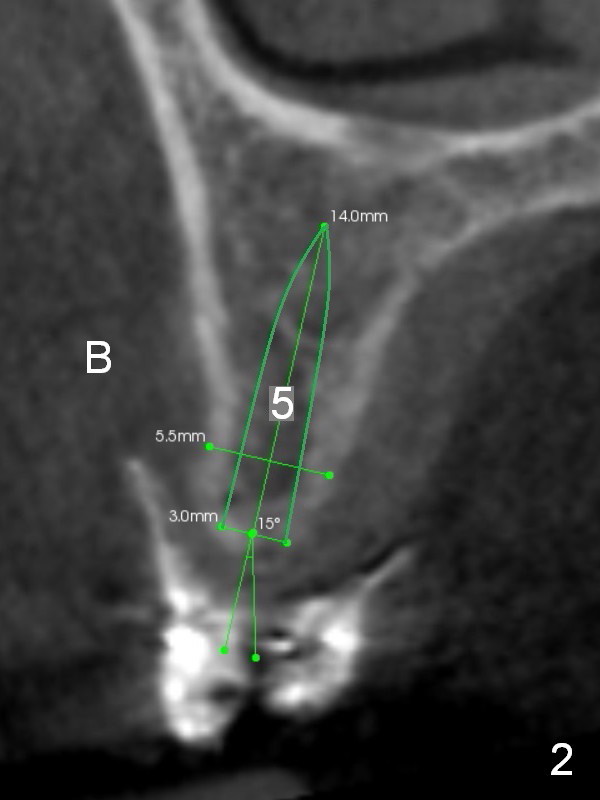

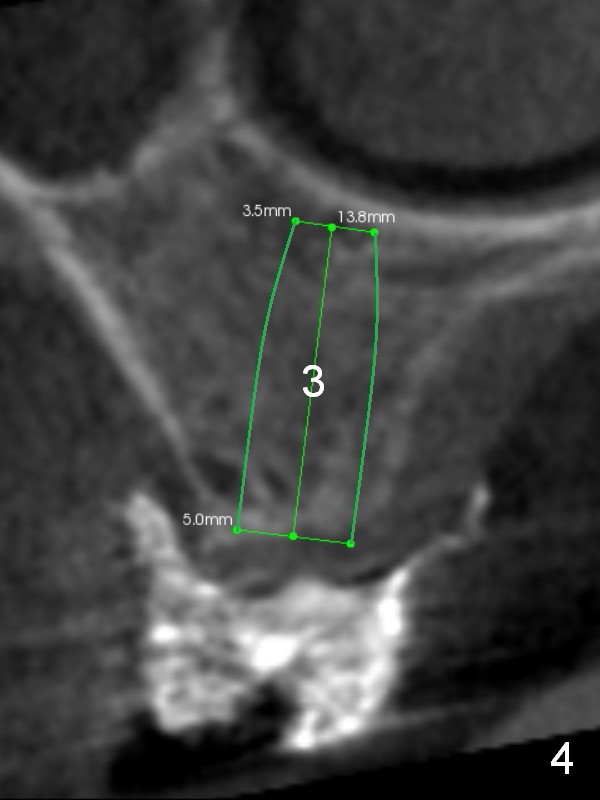

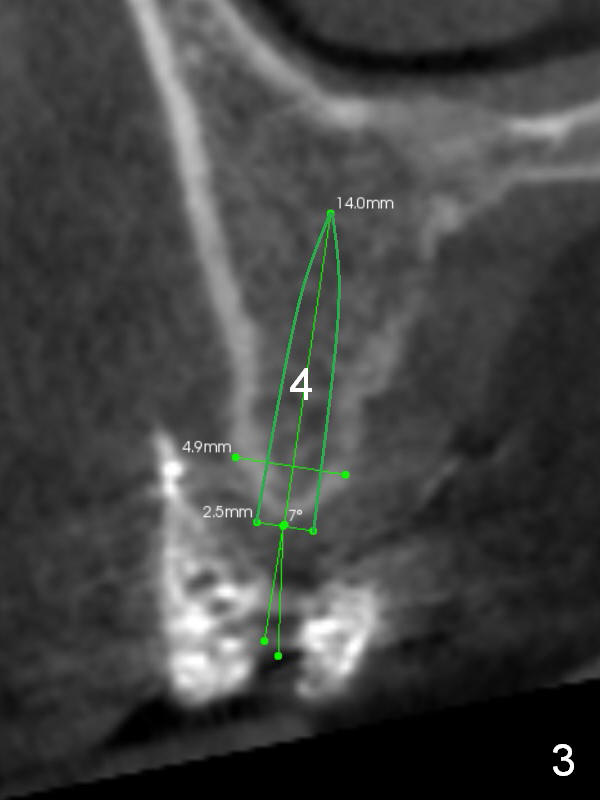

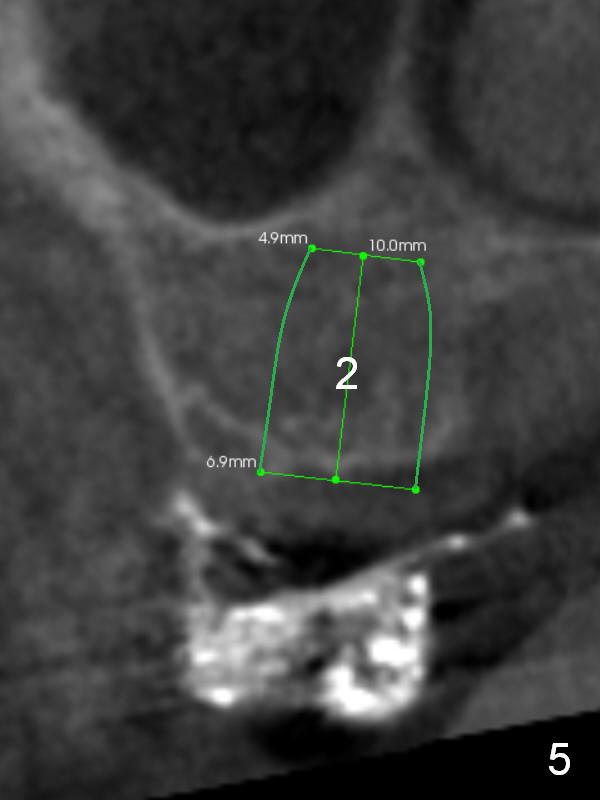

The ridge of the upper right posterior region is variable: narrow at the sites of #4 and 5 (Fig.2,3) and wide at #2 and 3 (Fig.4,5).  One-piece implants are going to be placed at the premolars, while wide and extra wide implants at the molars.

Return to Upper Arch Reconstruction with Implants

Xin Wei, DDS, PhD, MS 1st edition 10/08/2015, last revision 10/08/2015
