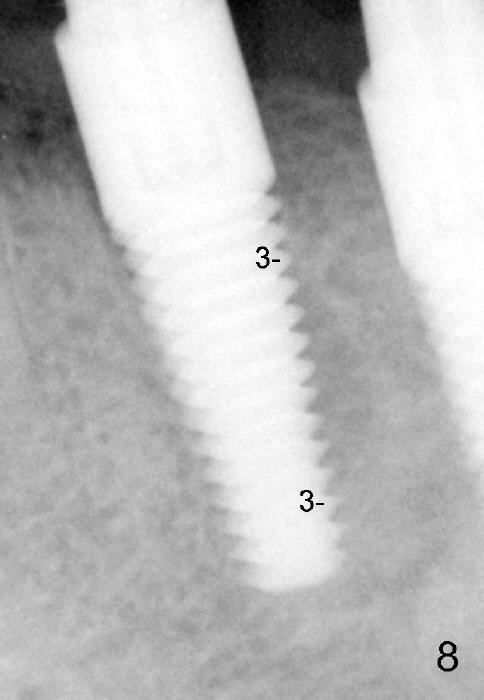

Fig.8: Immediately post placement of a 5x17 mm implant at the site of #20; 4x5 mm and 4x3 mm abutments are placed, respectively.

The apex of the original socket of #20 extends from the upper 3rd thread to the lower 3rd thread.

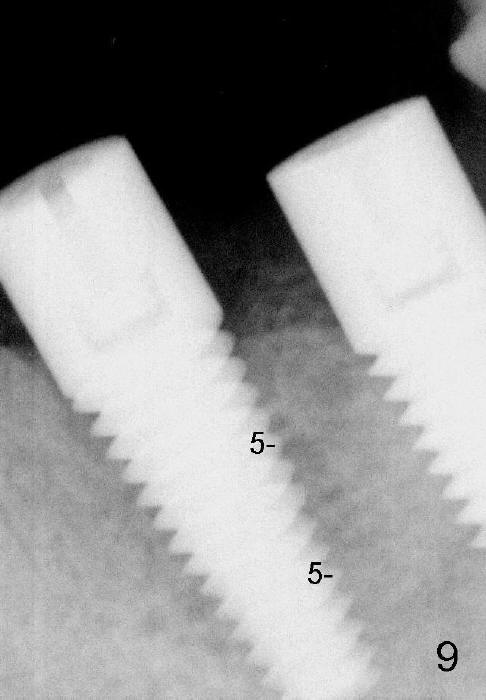

Fig.9: Five months postop.  The apex of the original socket not only decreases mesiodistally, but also vertically (from the upper 5th thread to the lower 5th thread).
