Implant in Narrow Mesiodistal Dimension

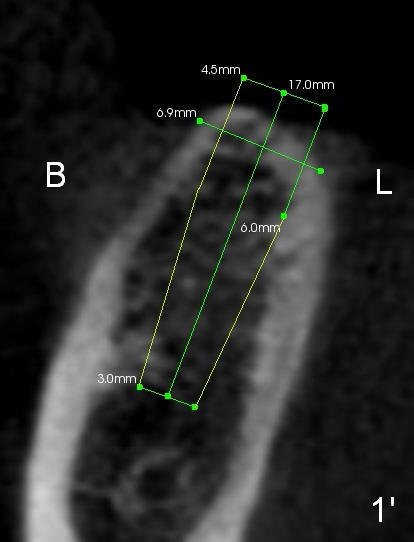

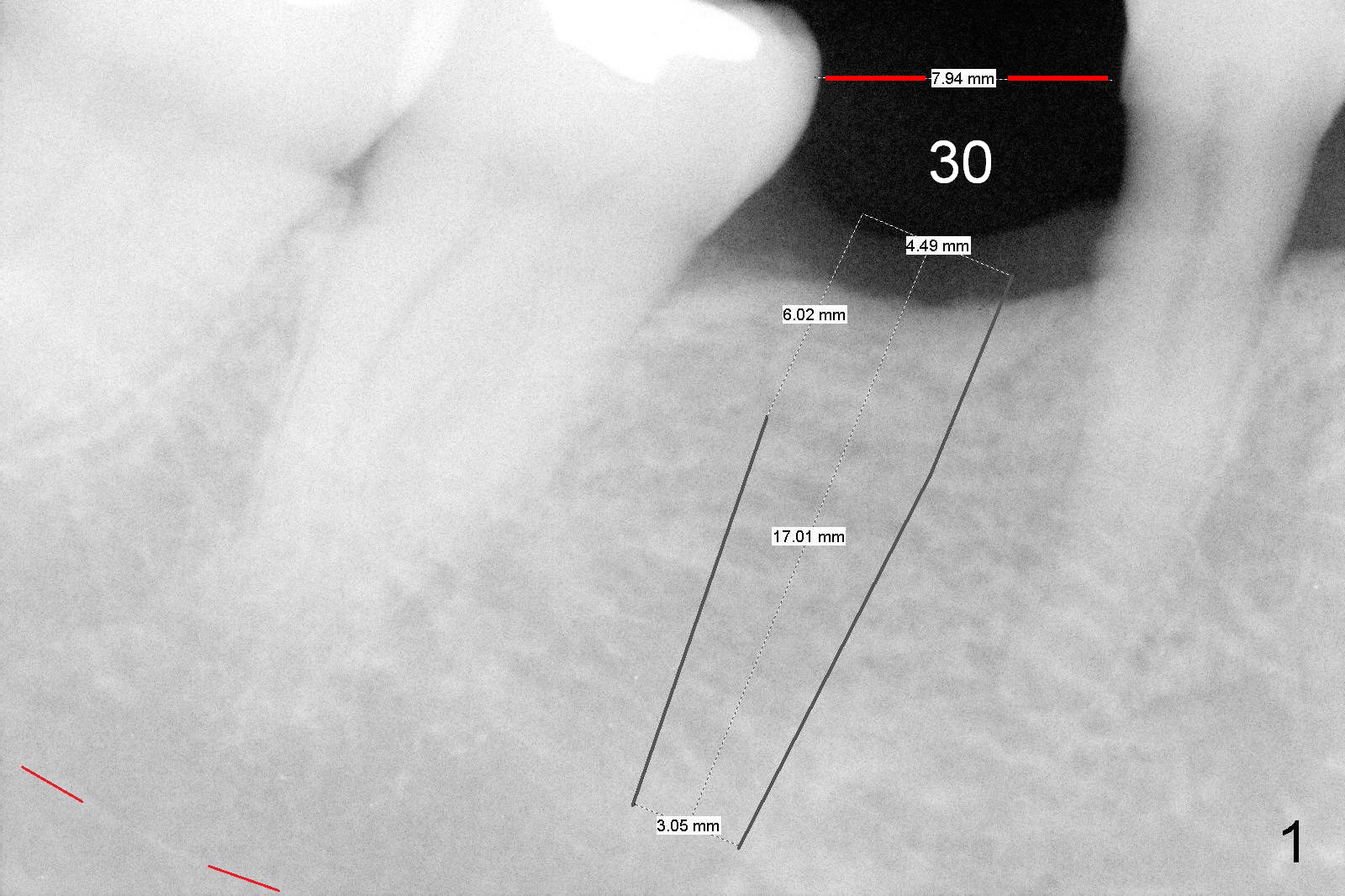

A 56-year-old lady has lost #30 for long time with narrow mesiodistal width (Fig.1: ~ 8 mm).  A relatively narrow implant has to be used (4.5 mm).  It also fits buccolingually (Fig.1': CT coronal section).  With implant within the bone, postop bone resorption appears to be less severe than that at #18,19.

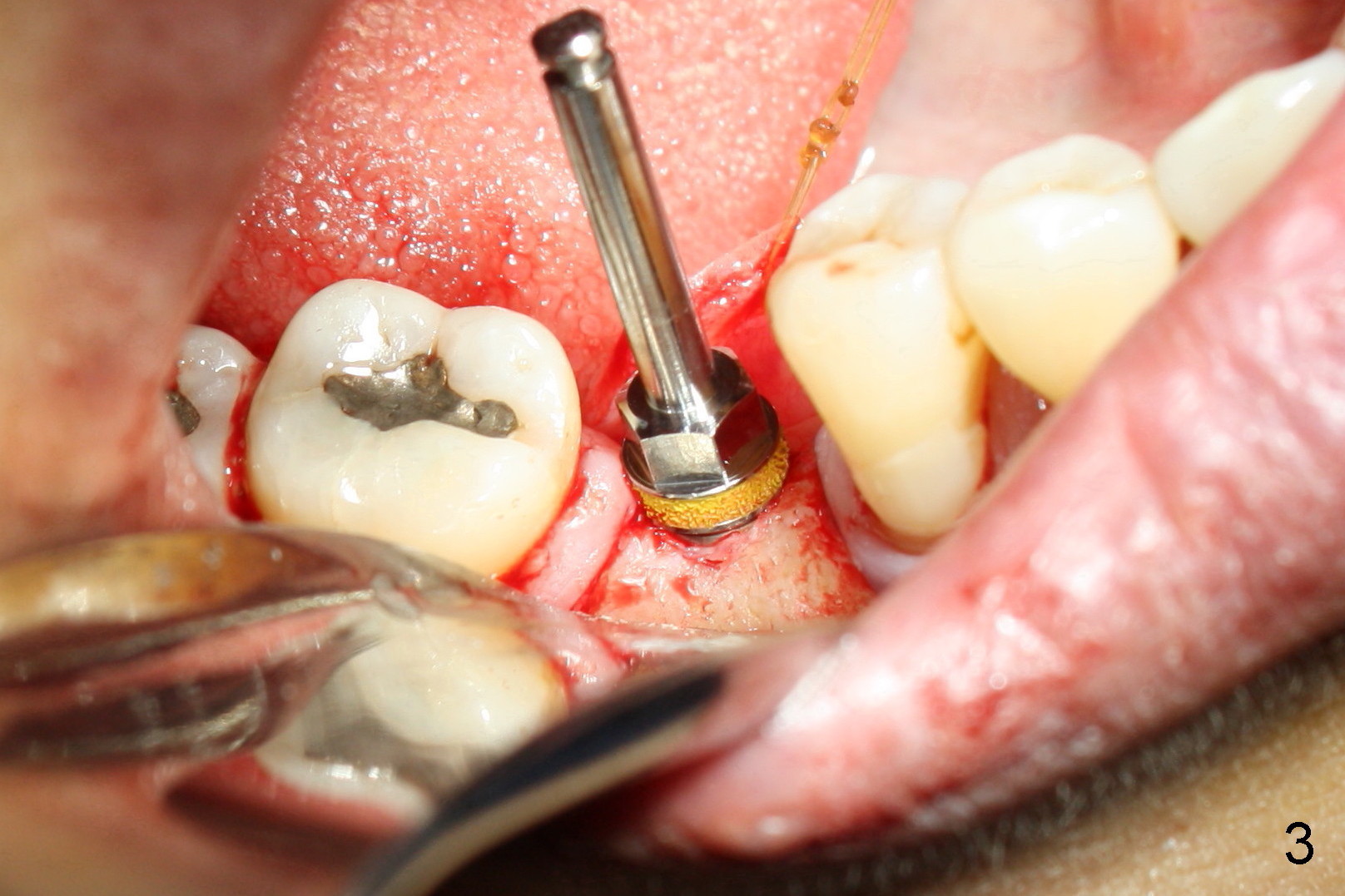

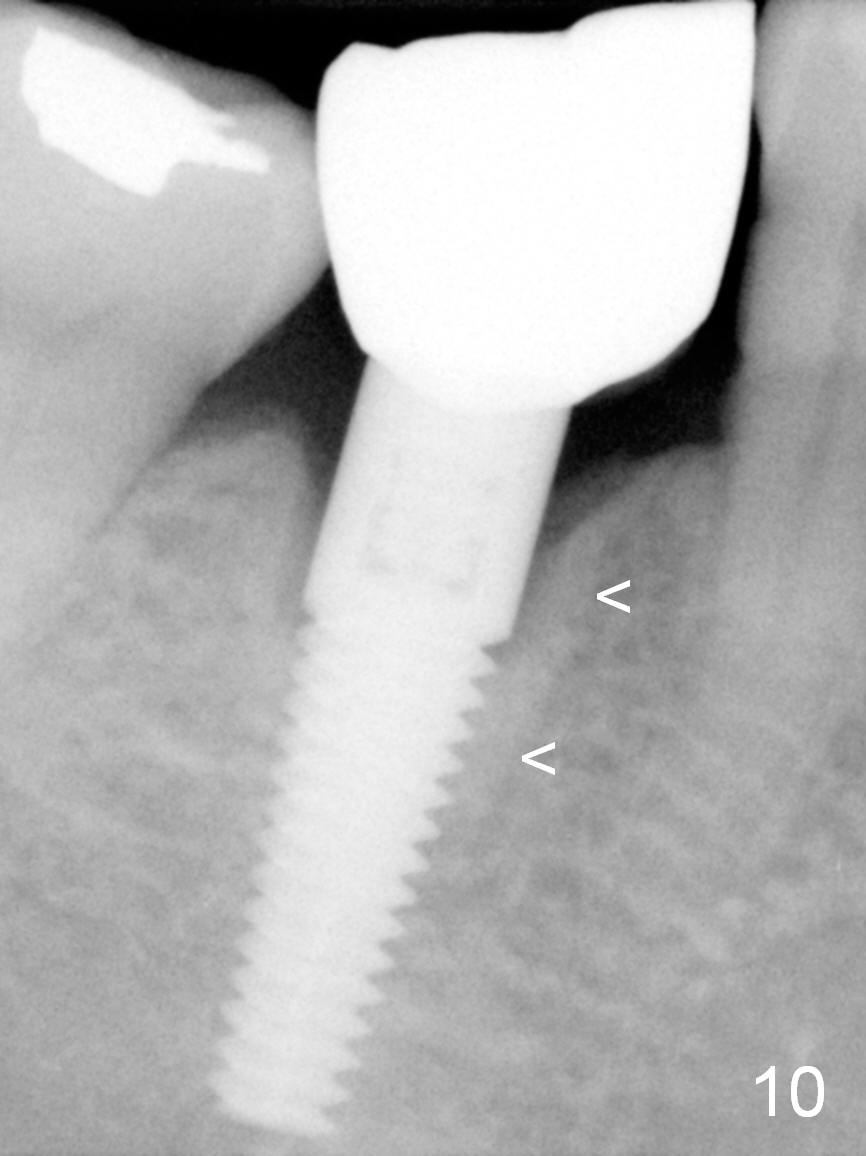

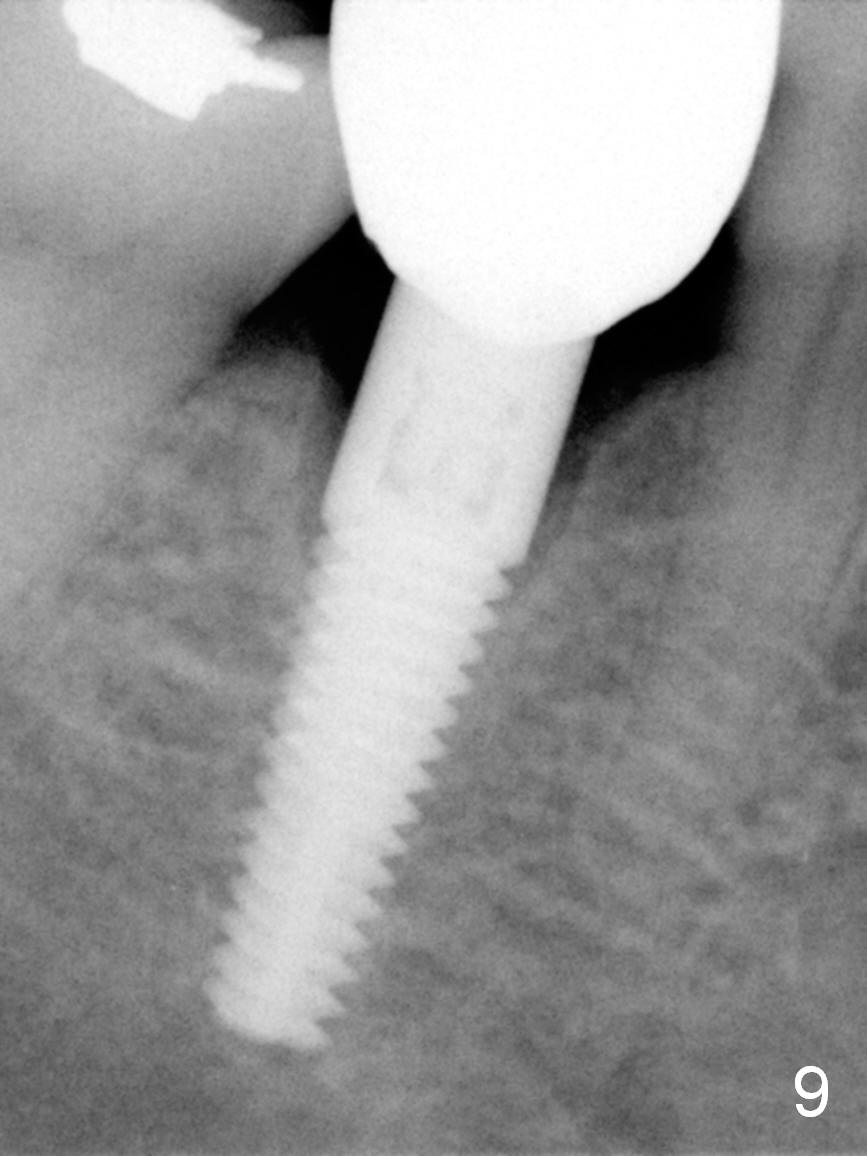

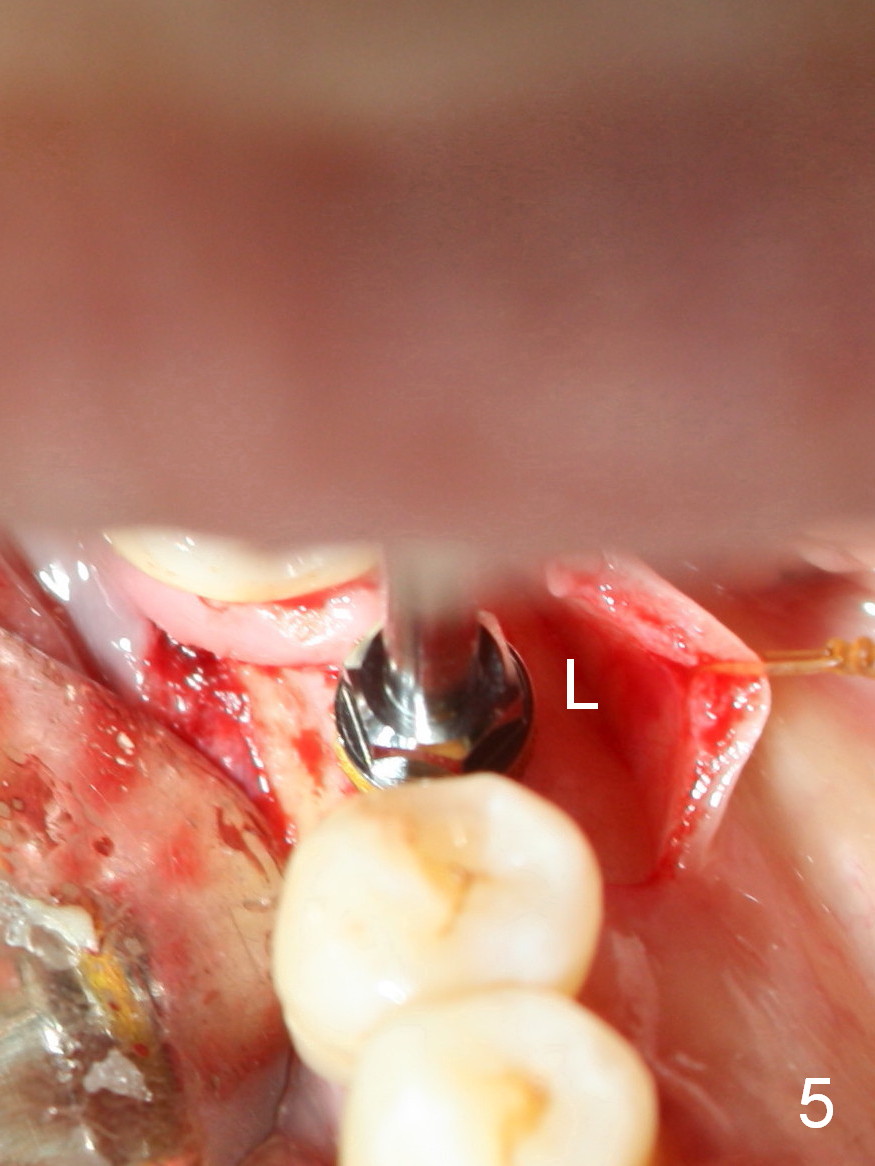

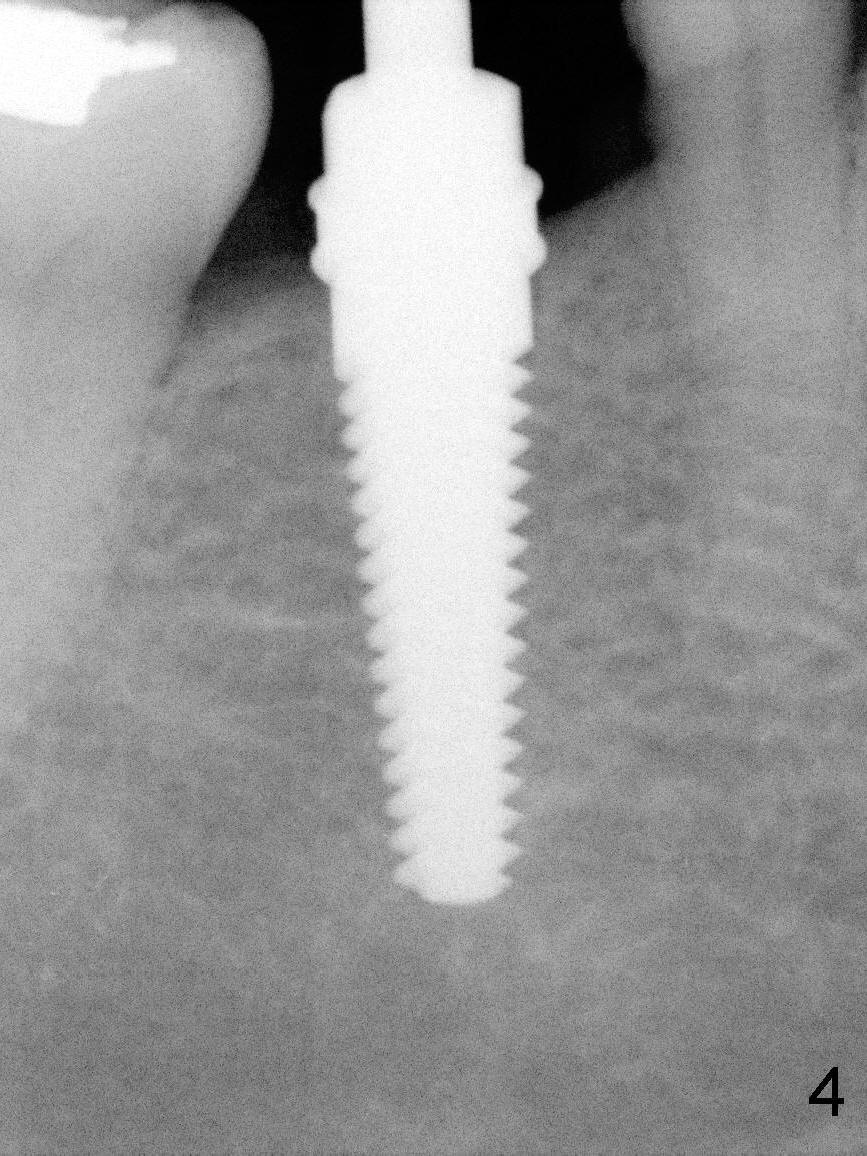

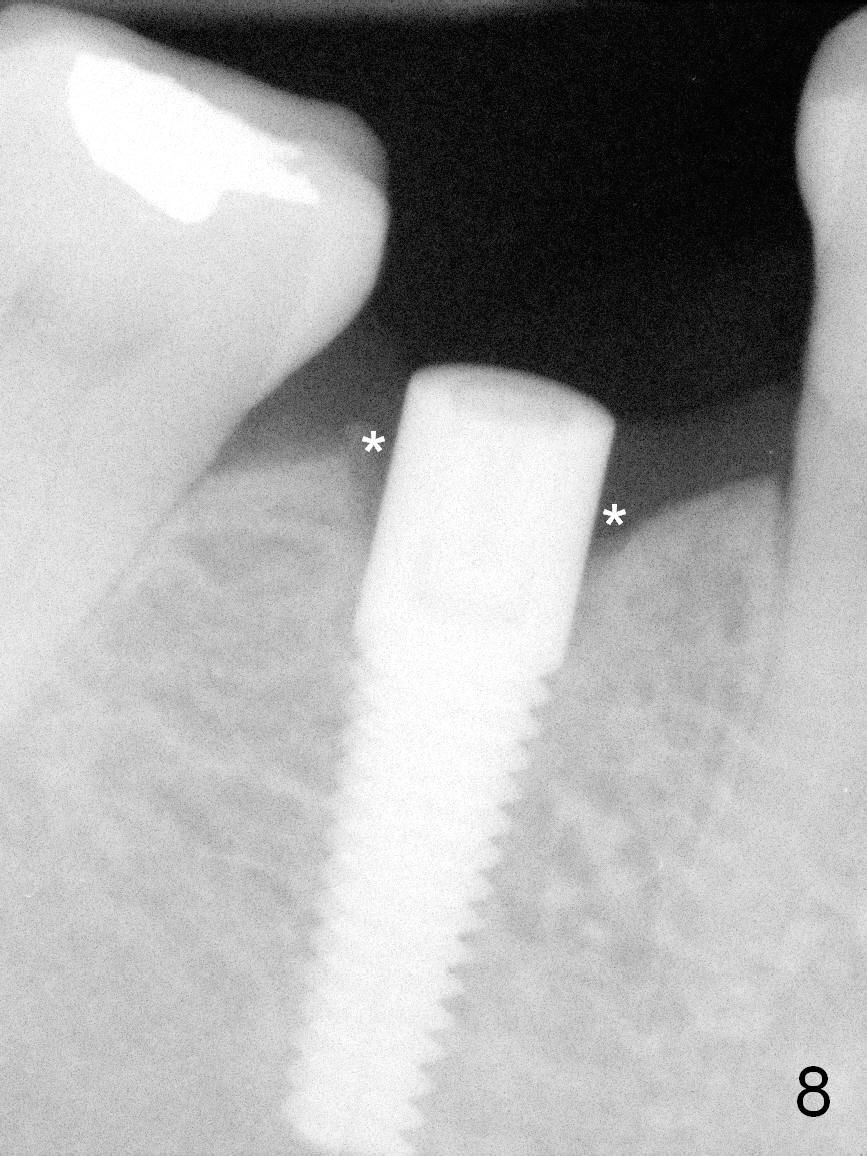

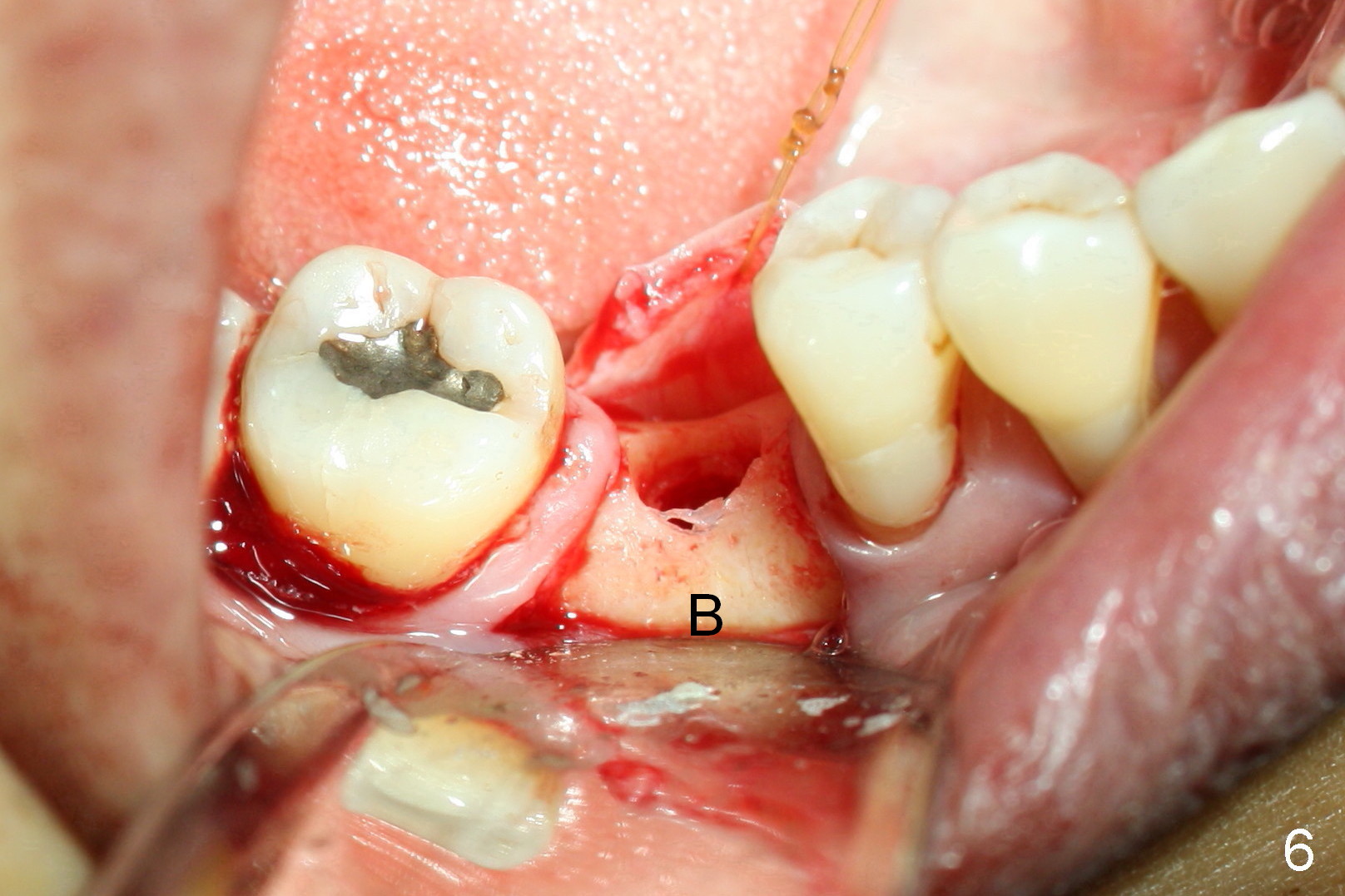

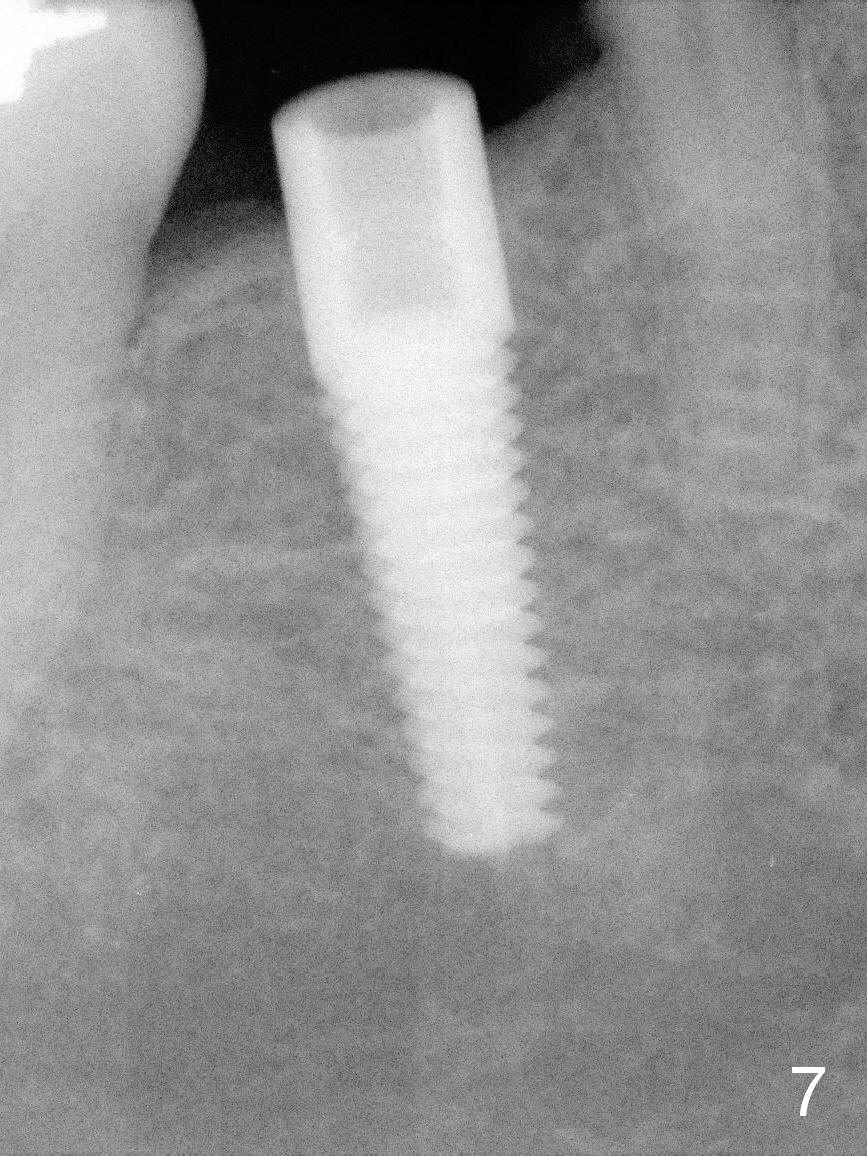

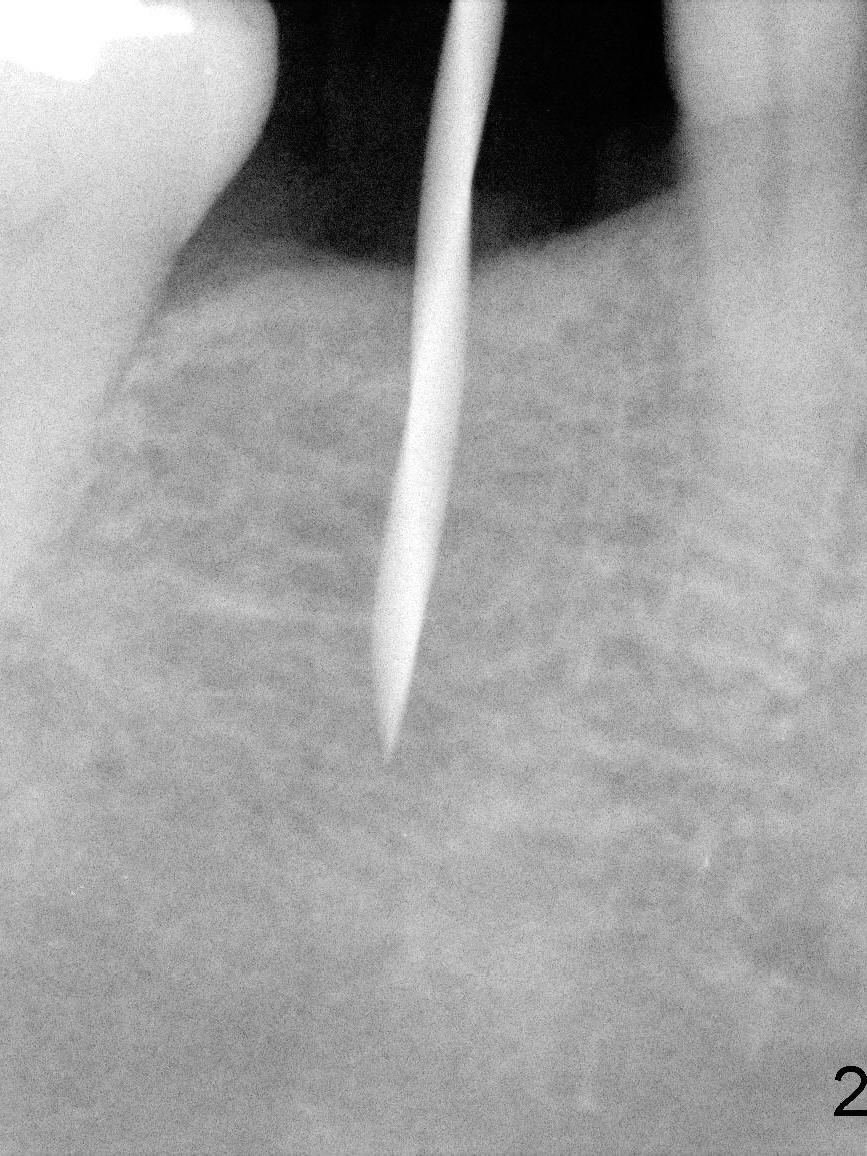

Osteotomy starts with a 1.5 mm drill at 11 mm bone level (Fig.2).  When a 4.5x17 mm tap is placed at 14 mm bone level after sequential osteotomy (Fig.4), the buccal plate seems to be present (Fig.3).  A drawback is the lingual position (Fig.5).  When the tap is removed, the buccal plate is thin (Fig.6).  A 4.5x17 mm tissue-level implant is placed (Fig.7: 60 Ncm).  Bone resorption starts crestatlly 4.5 months postop (Fig.8) and appears to get worse 1 year 3 months postop or 10 months post cementation (Fig.9).  However, cortical bone forms between the crest and implant threads 1 year 8 months post cementation (Fig.10 <).  The patient's main concern is that she does not have normal taste ever since she got the implants.

Return to Lower Molar Immediate Implant

Xin Wei, DDS, PhD, MS 1st edition 12/24/2015, last revision 07/04/2016
