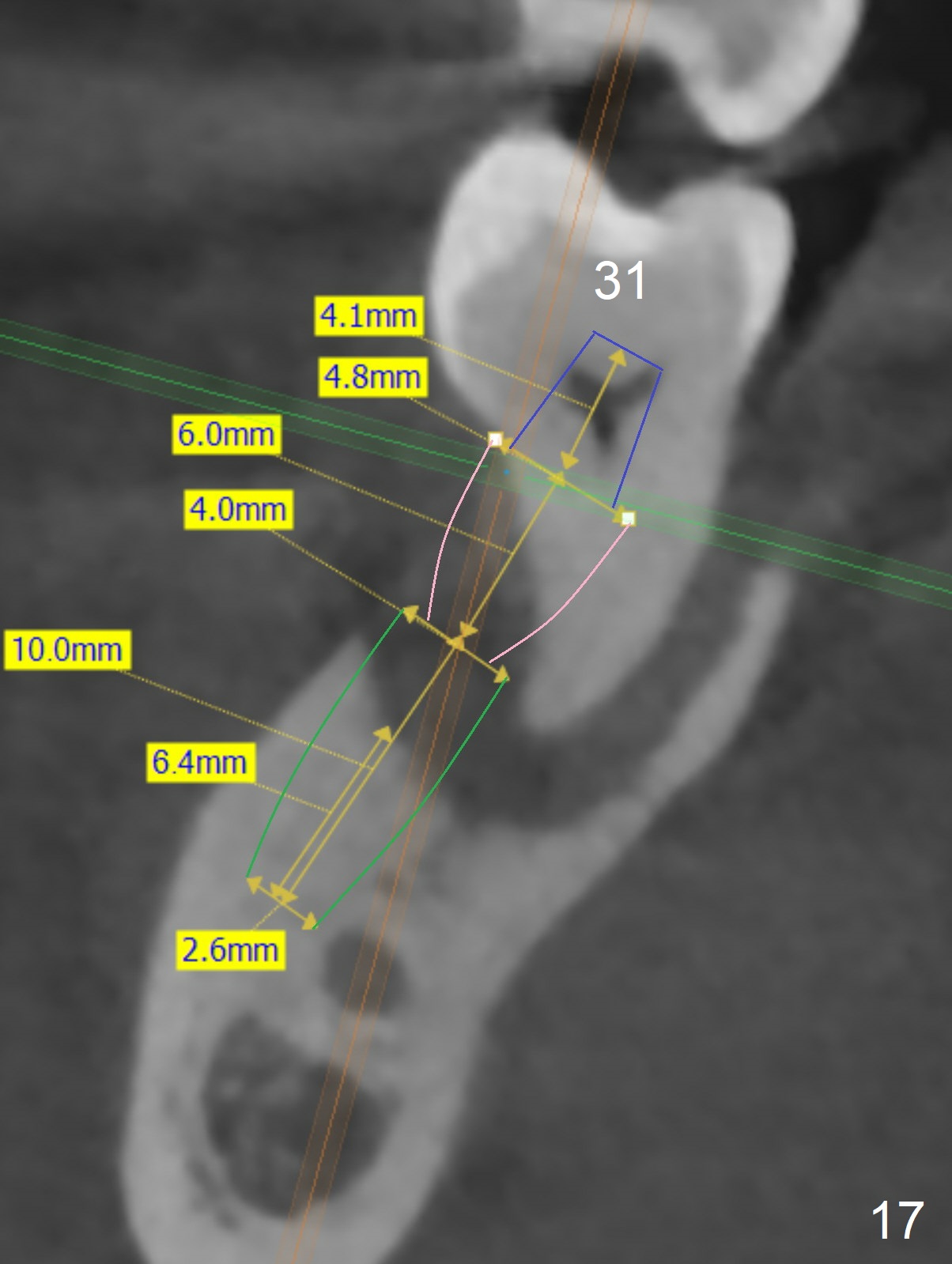

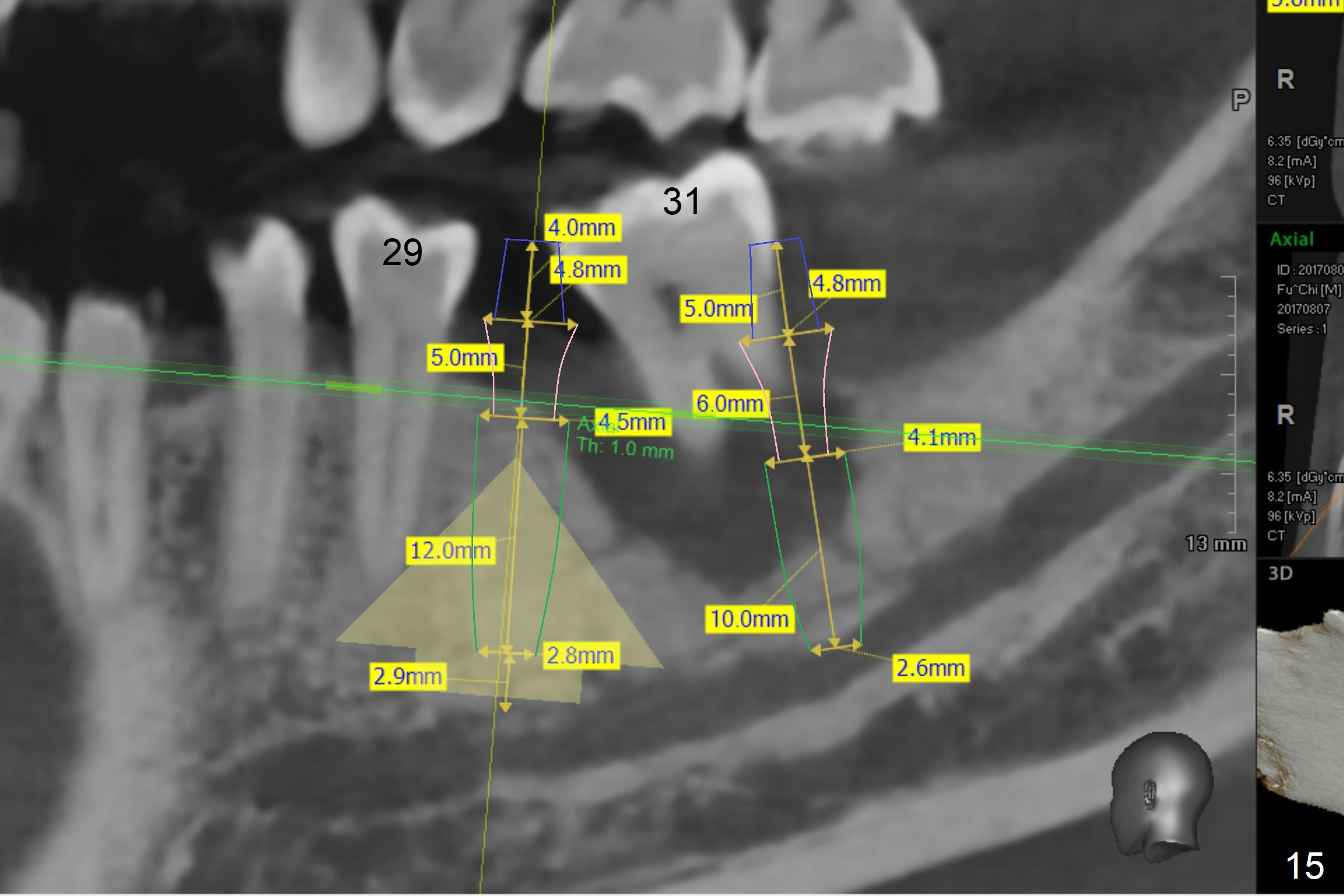

The implant at #31 should be place in the distobuccal aspect of the socket (Fig.15,17): 2 mm drill with 7 mm stopper, 2.8 mm round drill at 5 mm (50 RPM) and 3.6 mm at 3 mm.   This is a poor design, retrospectively.   A shorter implant should be placed in the center or lingual aspect of the socket to prevent periimplantitis.

1st Molar with Premolar Width Last Next Xin Wei, DDS, PhD, MS 1st edition 08/07/2017, last revision 04/15/2020
