Implants and Ortho

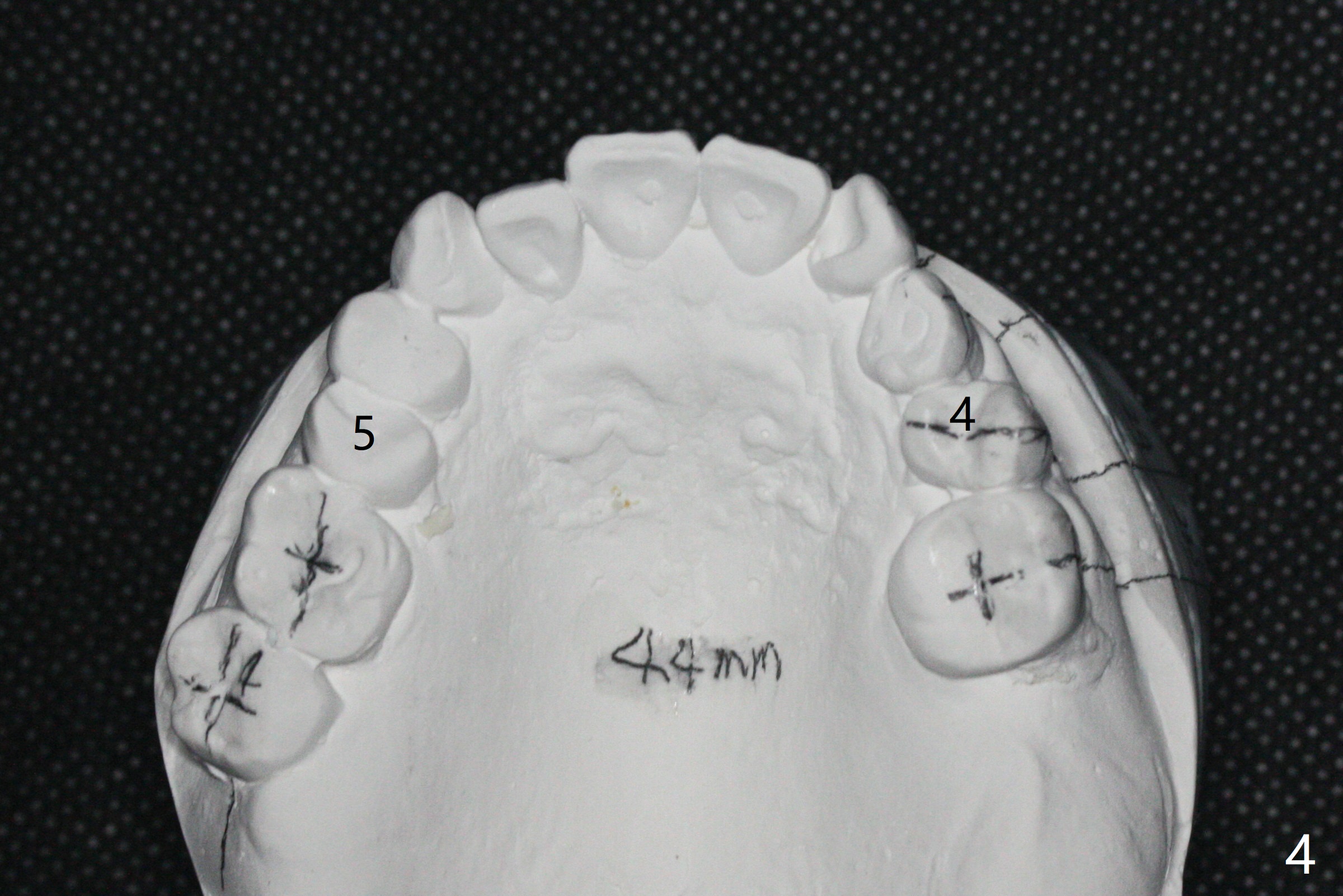

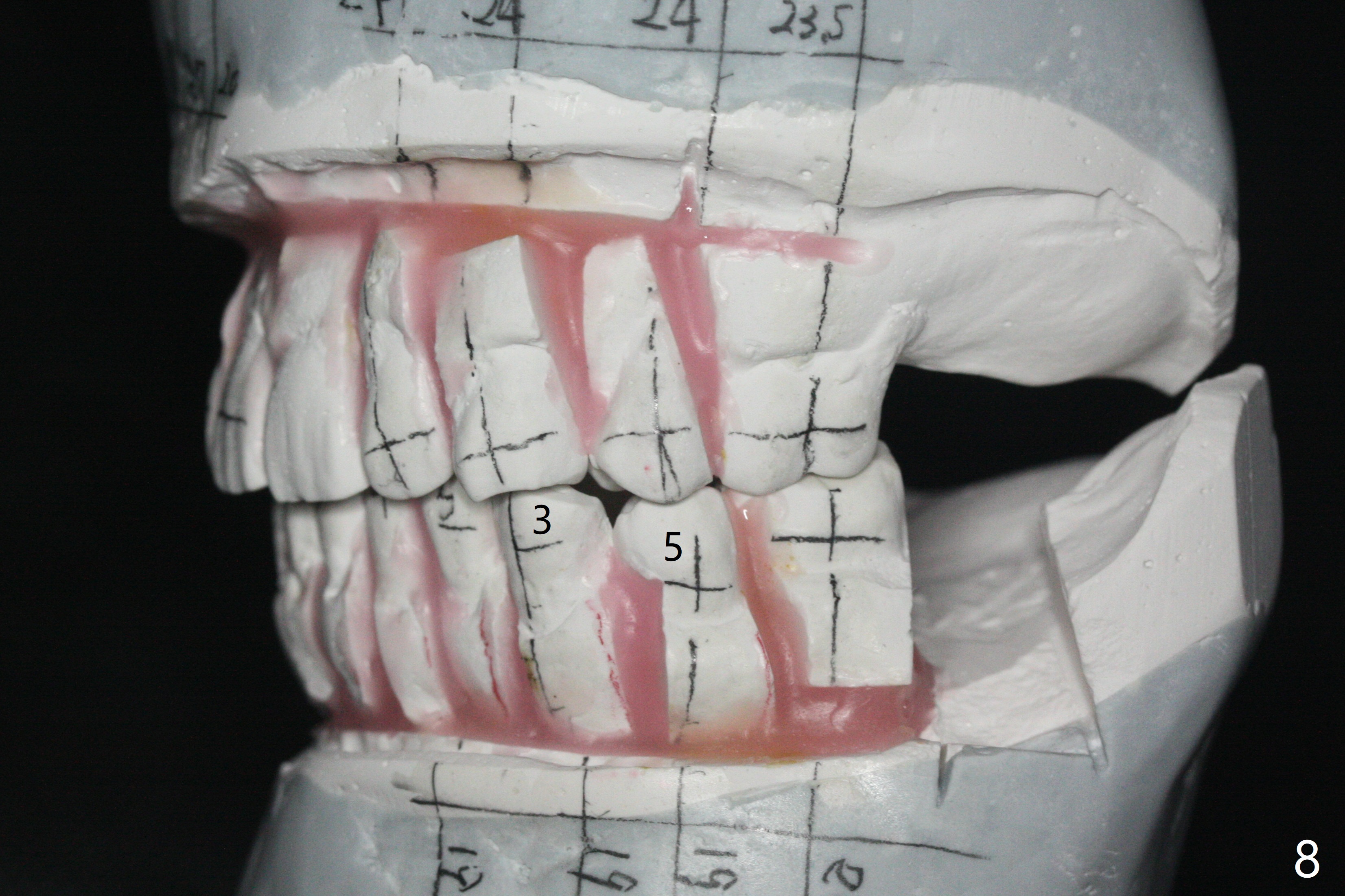

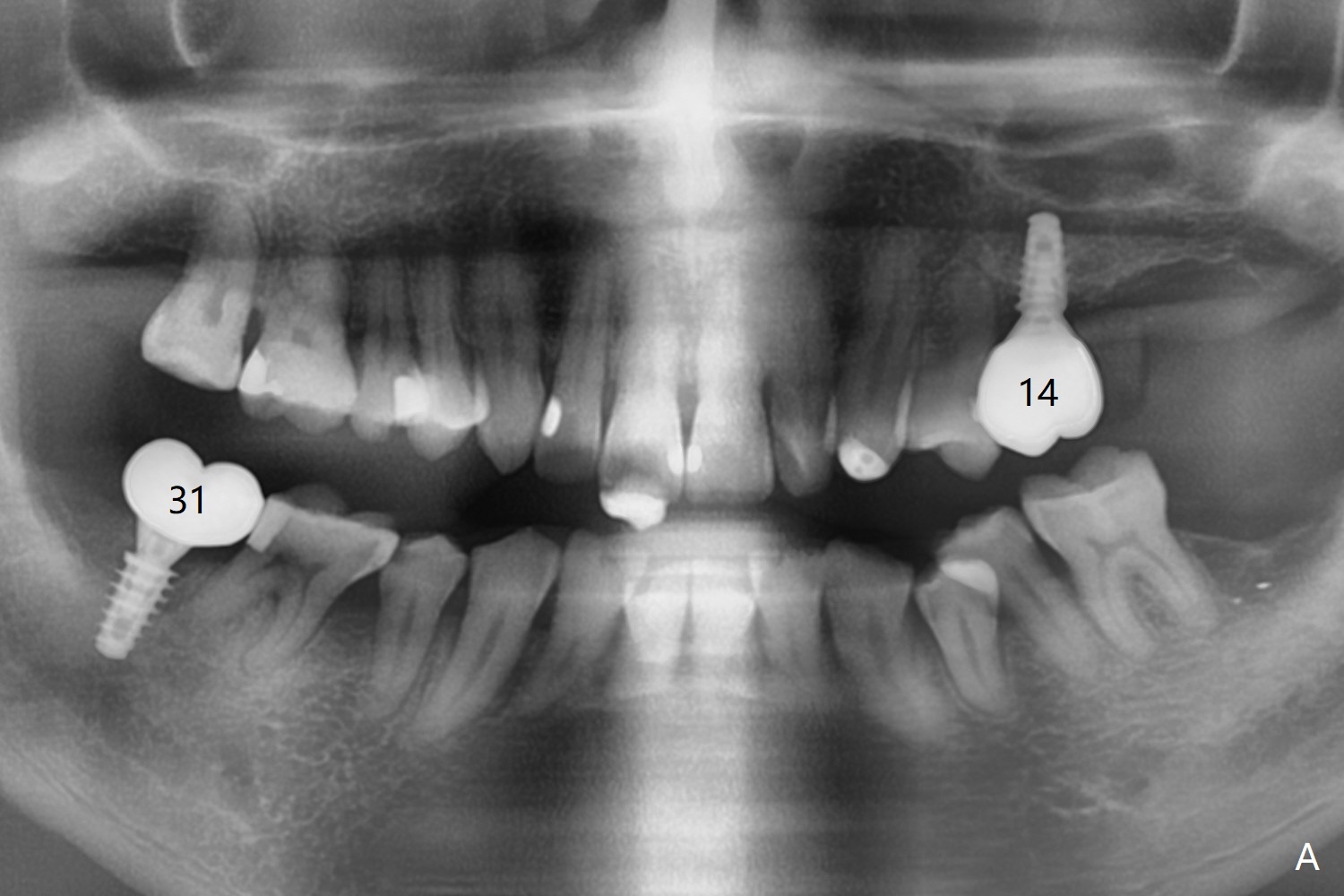

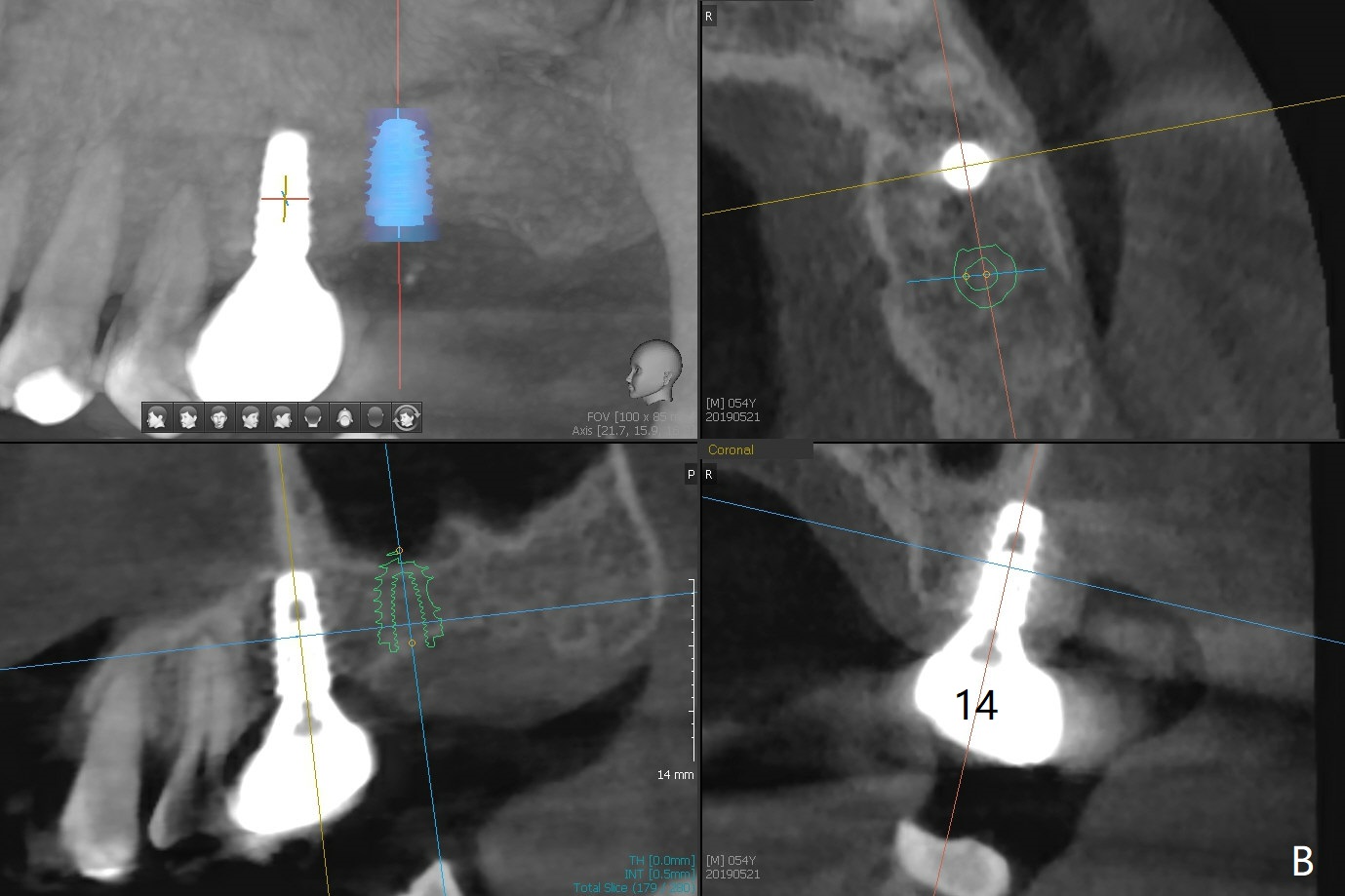

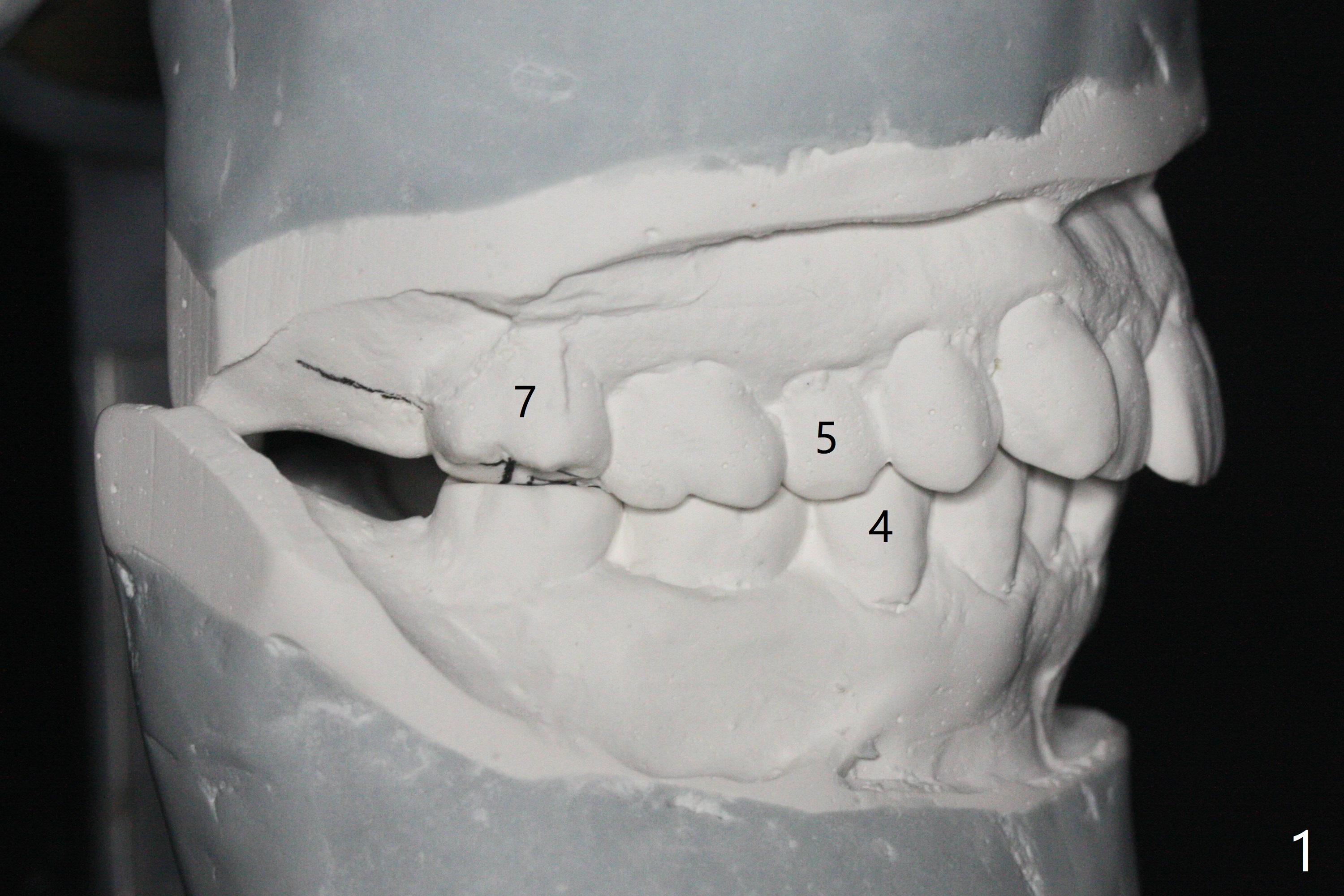

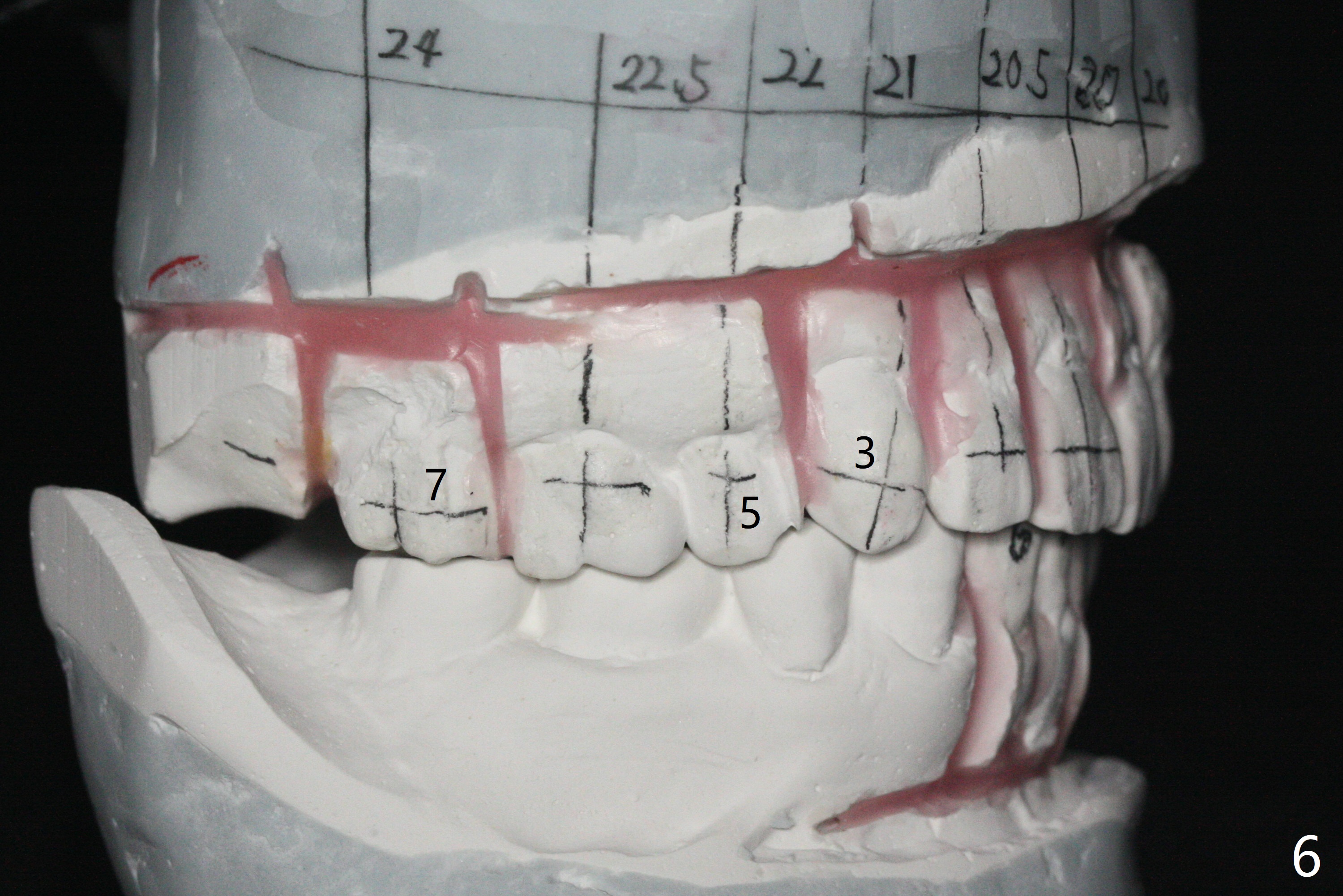

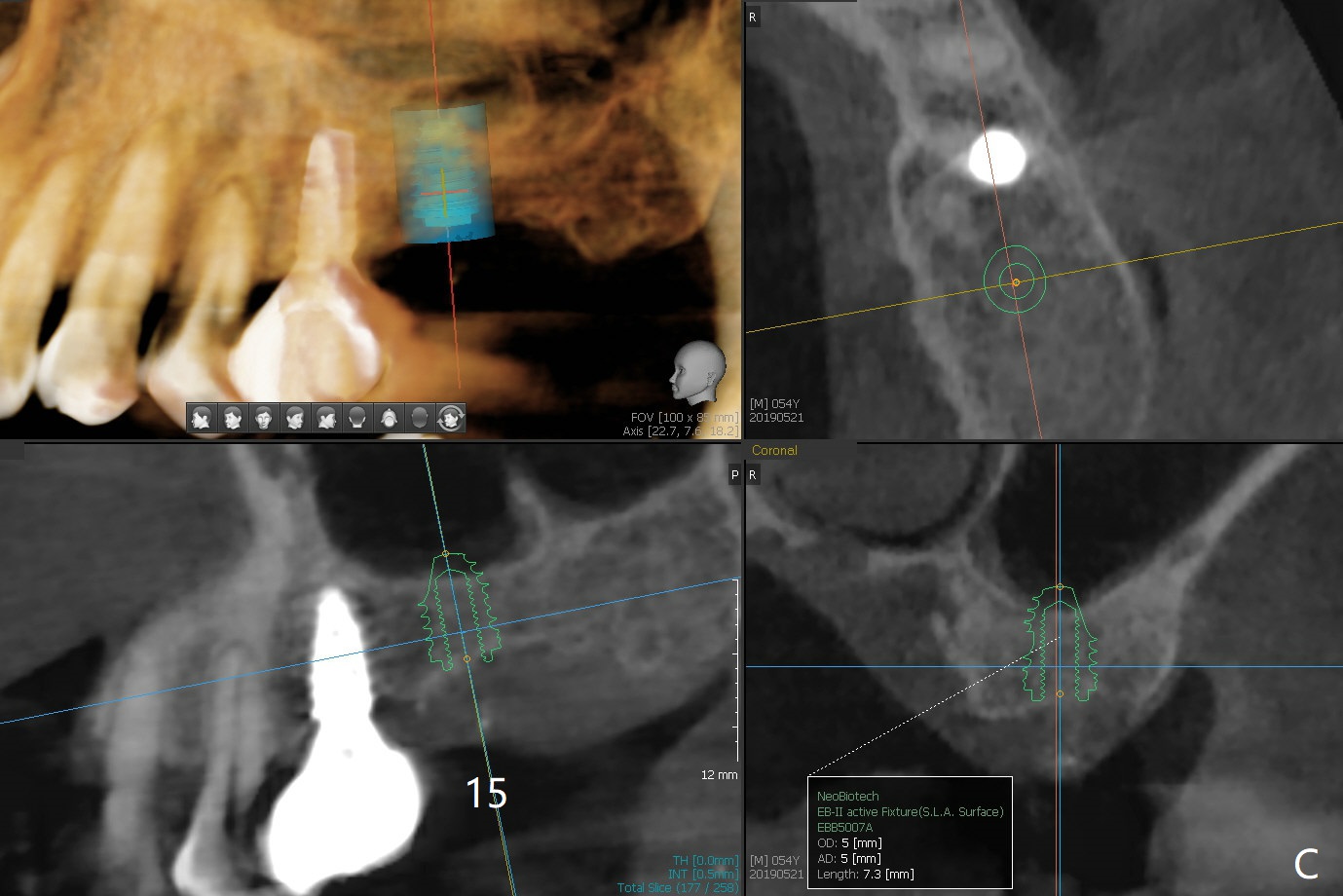

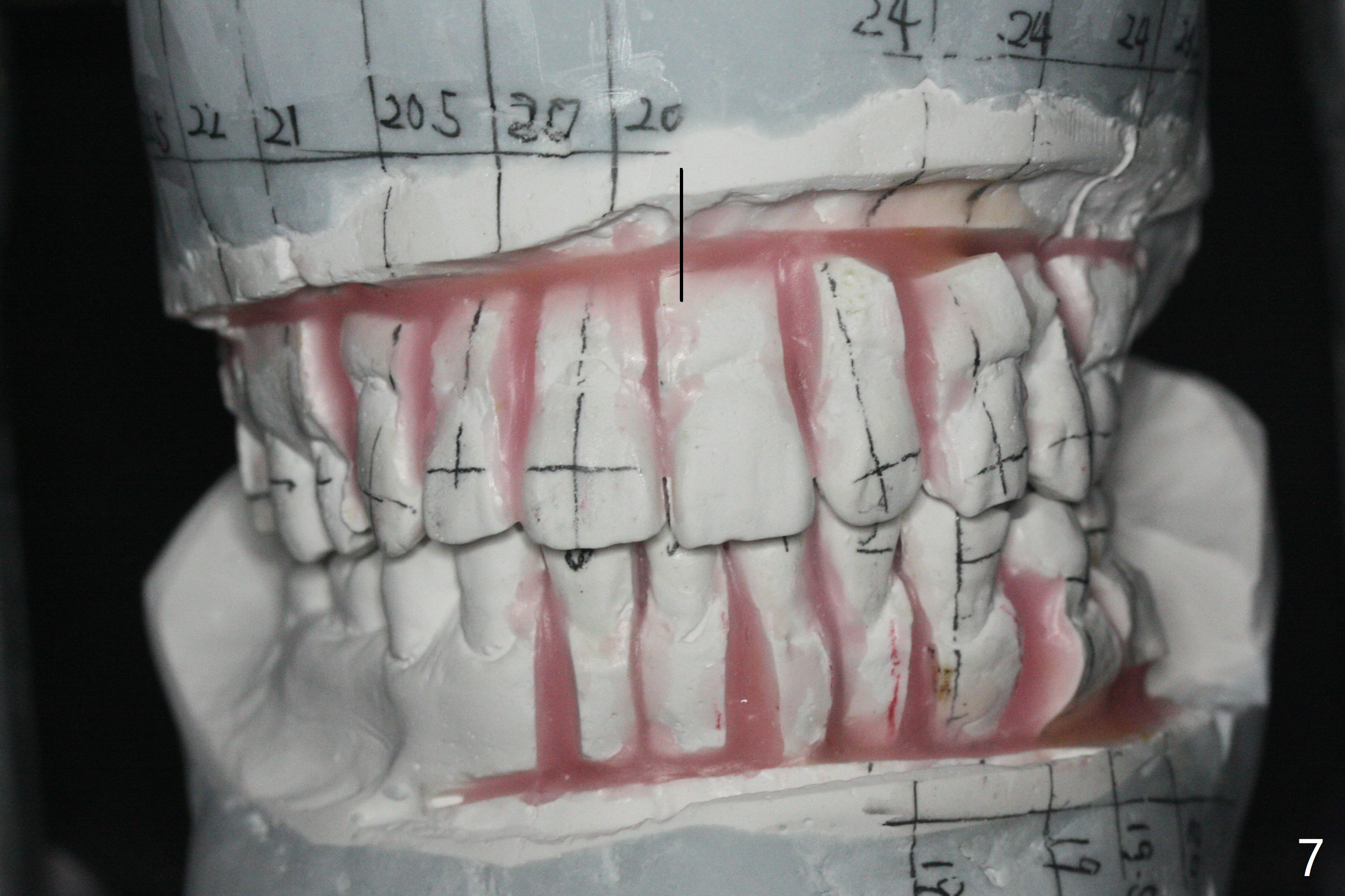

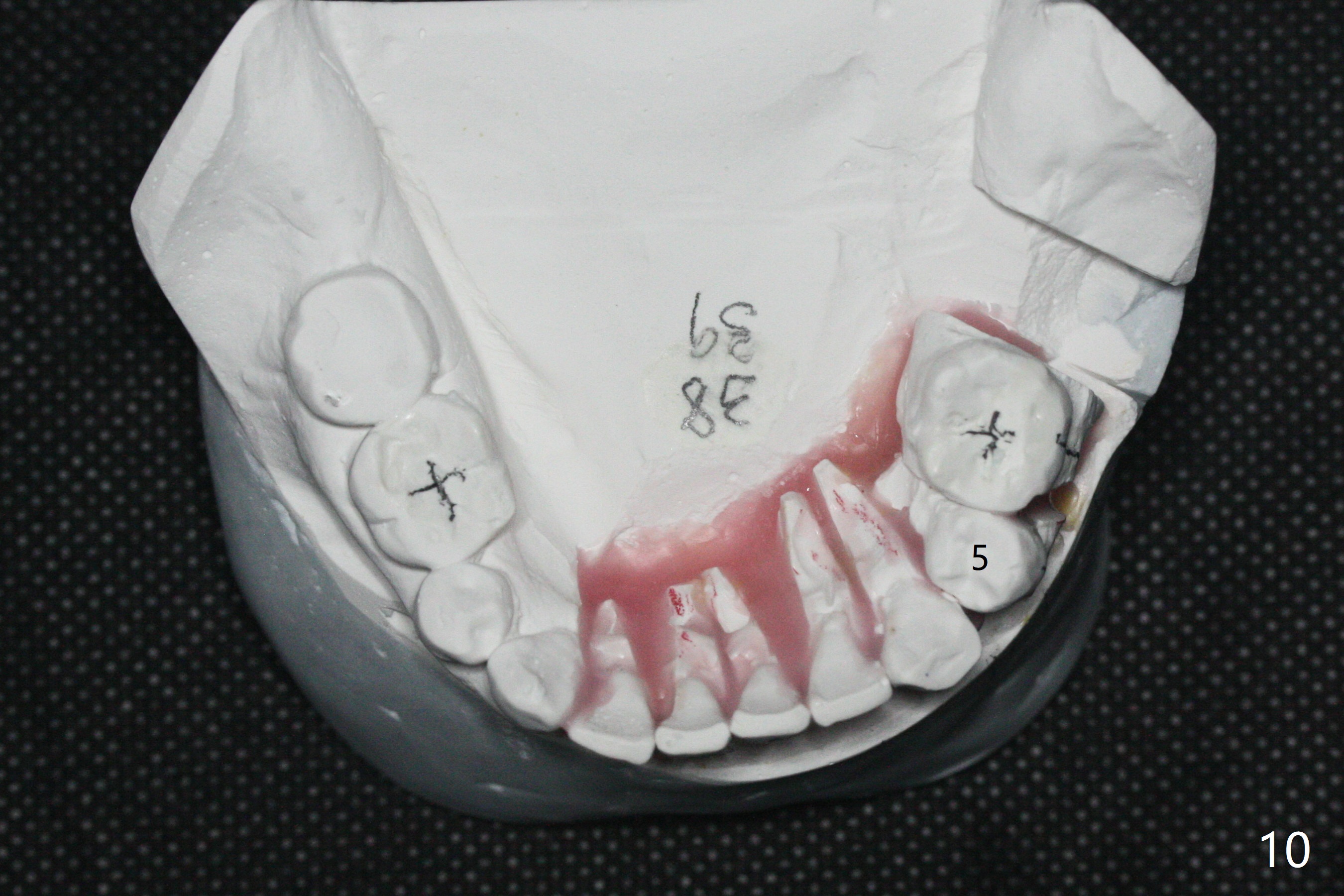

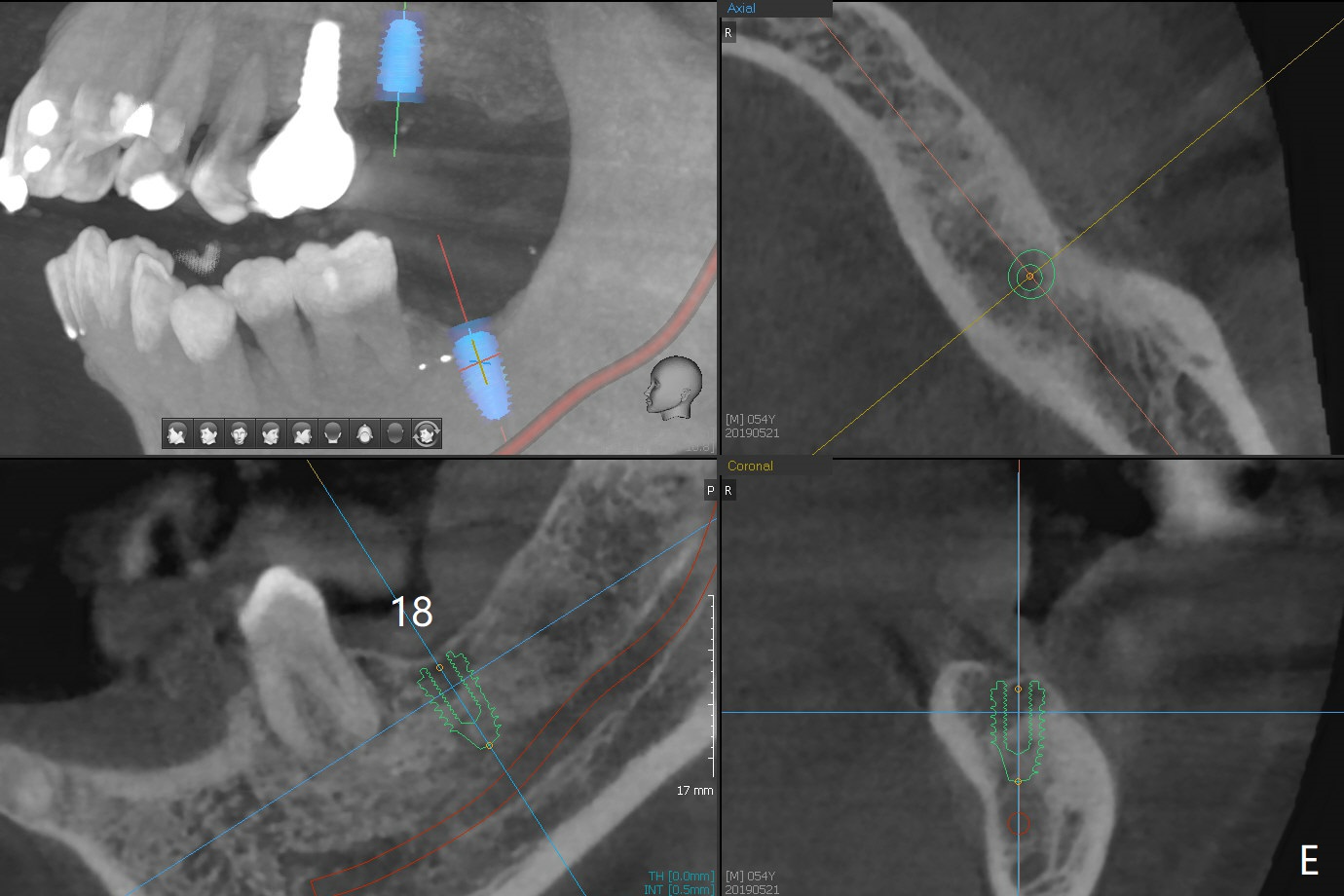

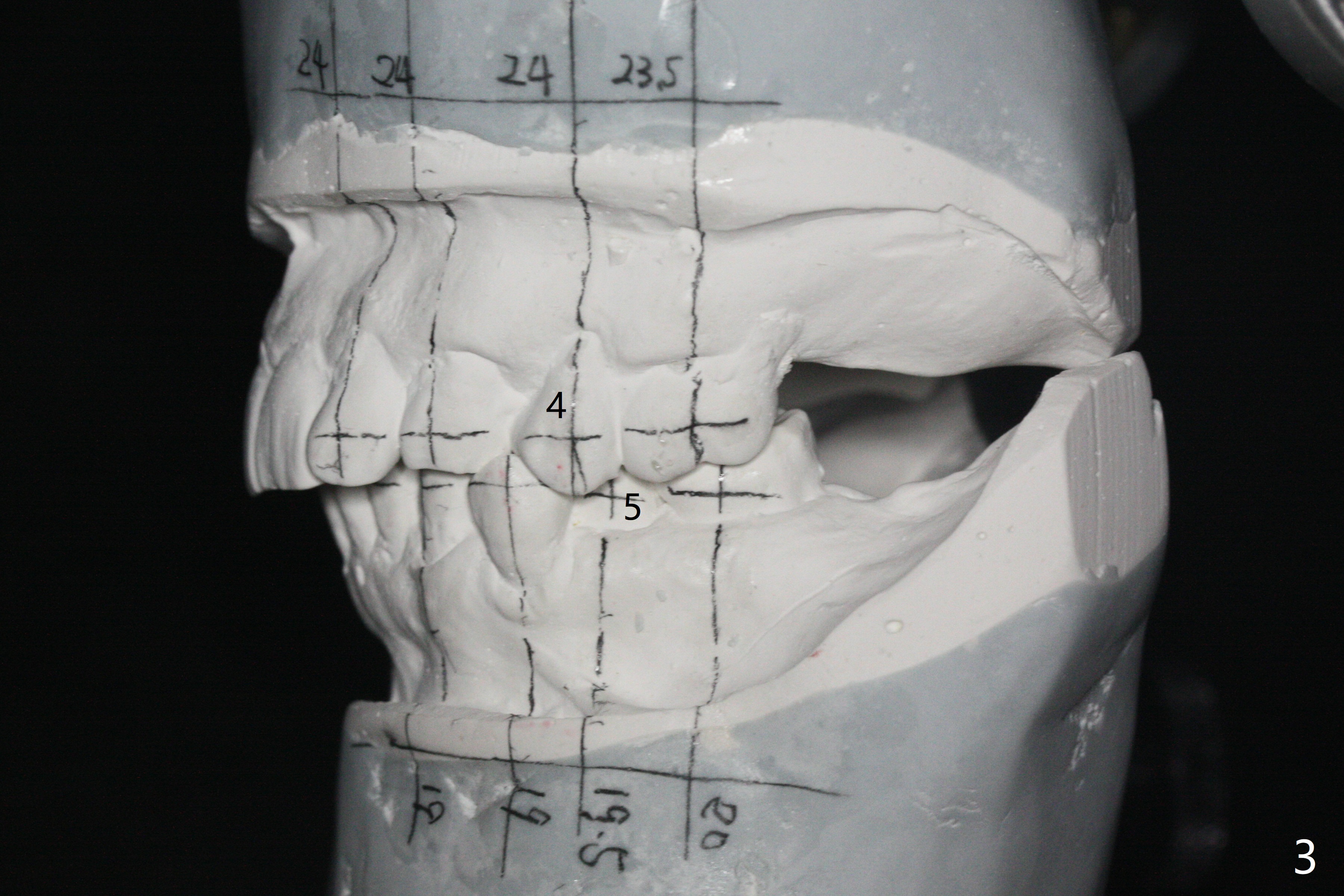

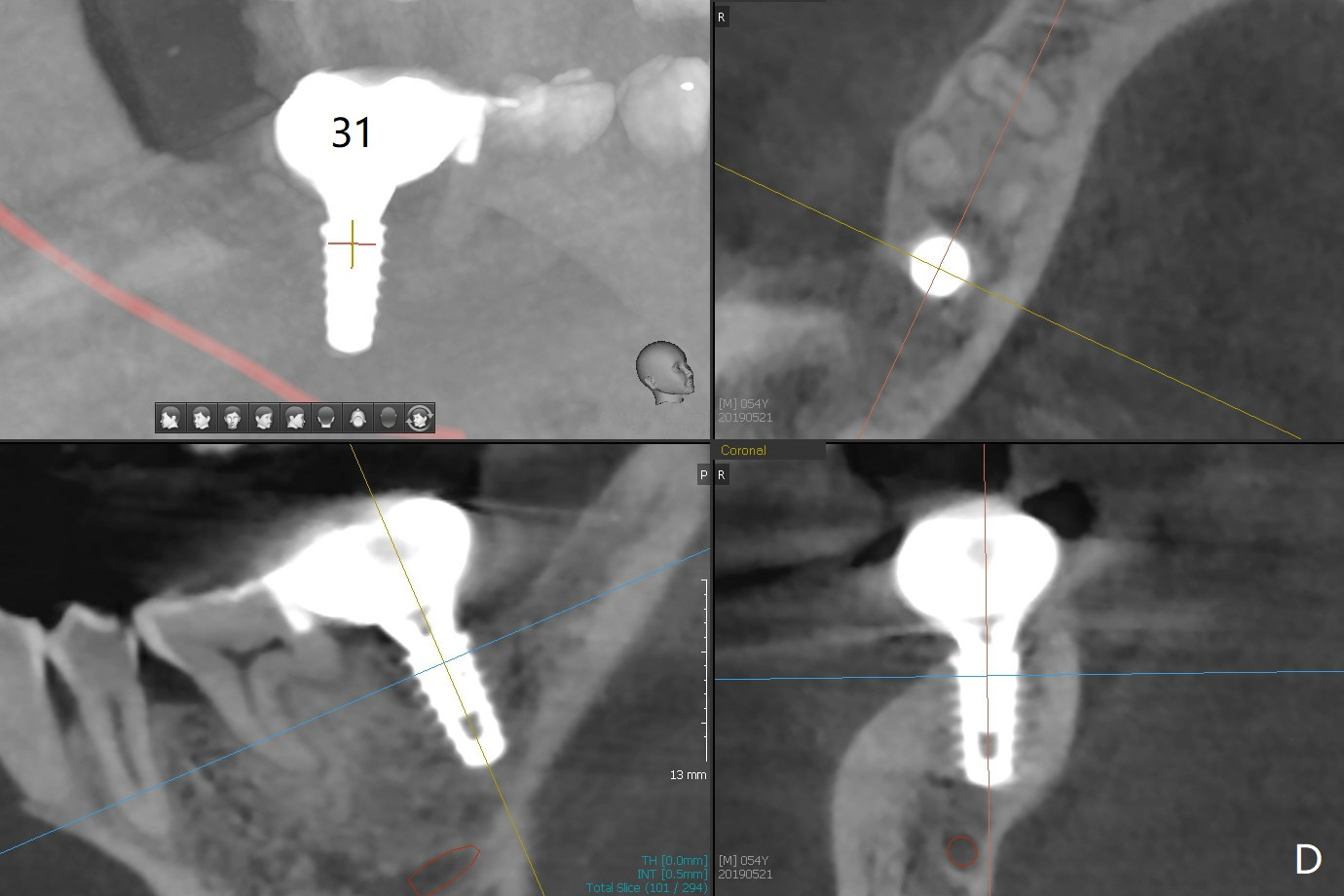

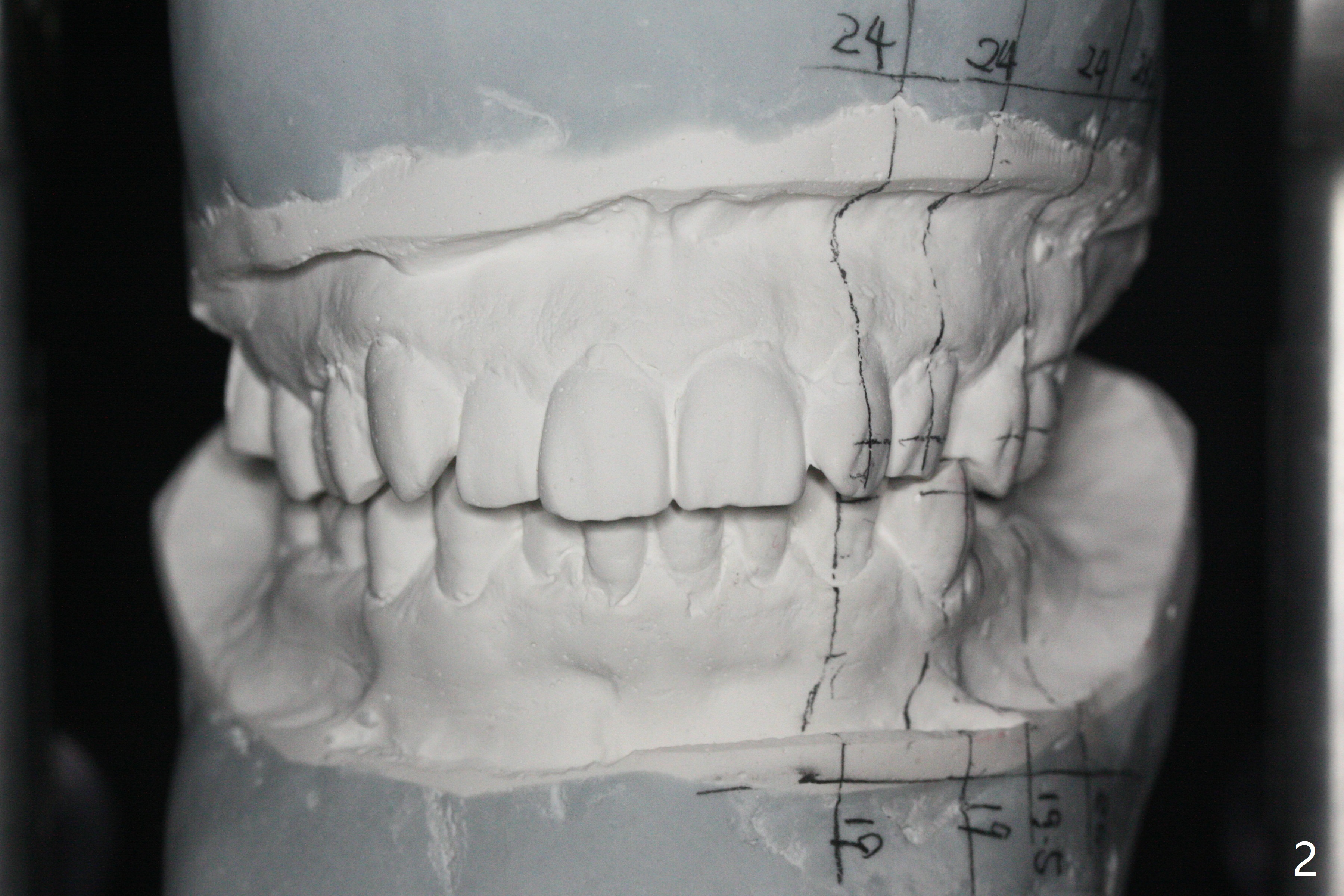

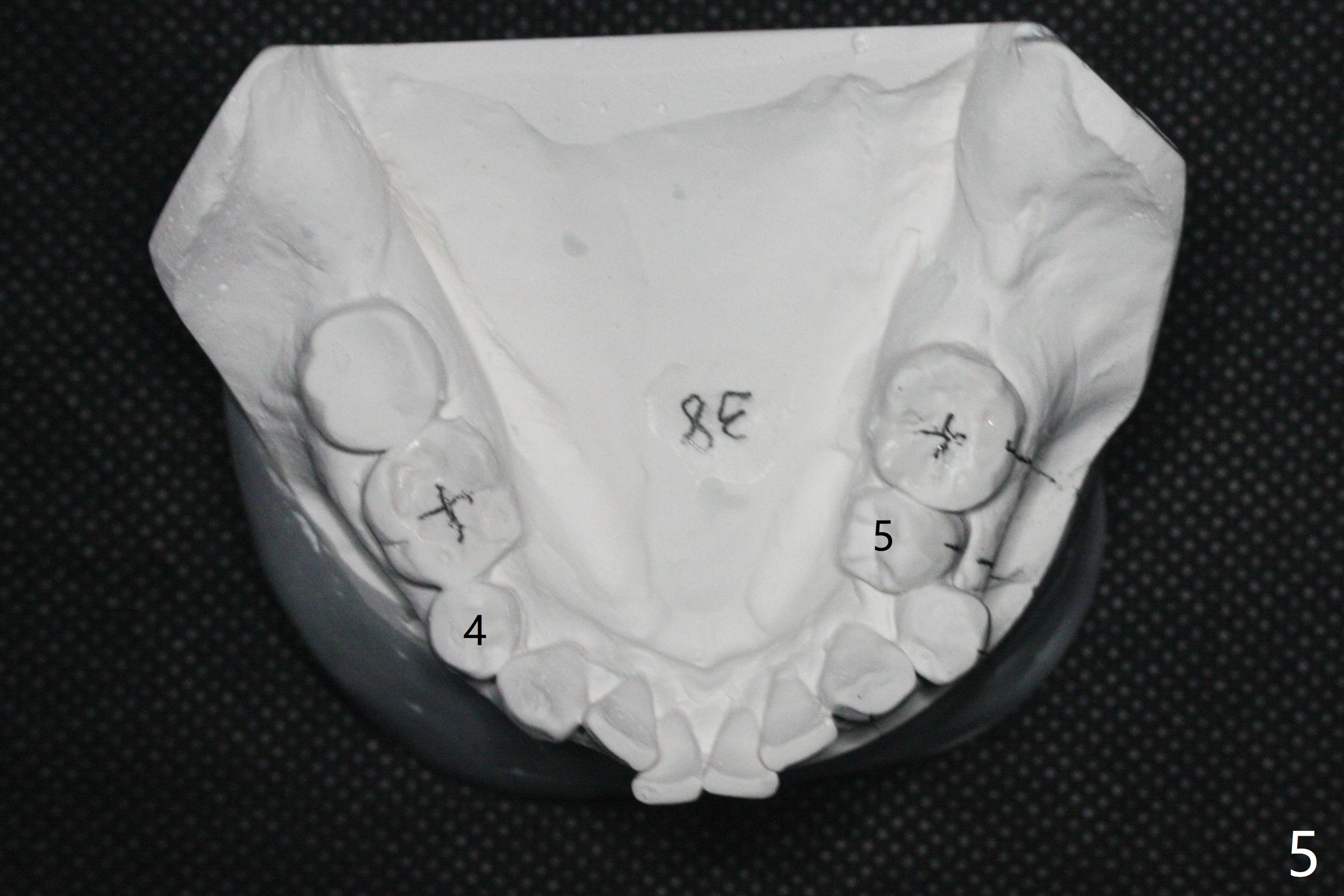

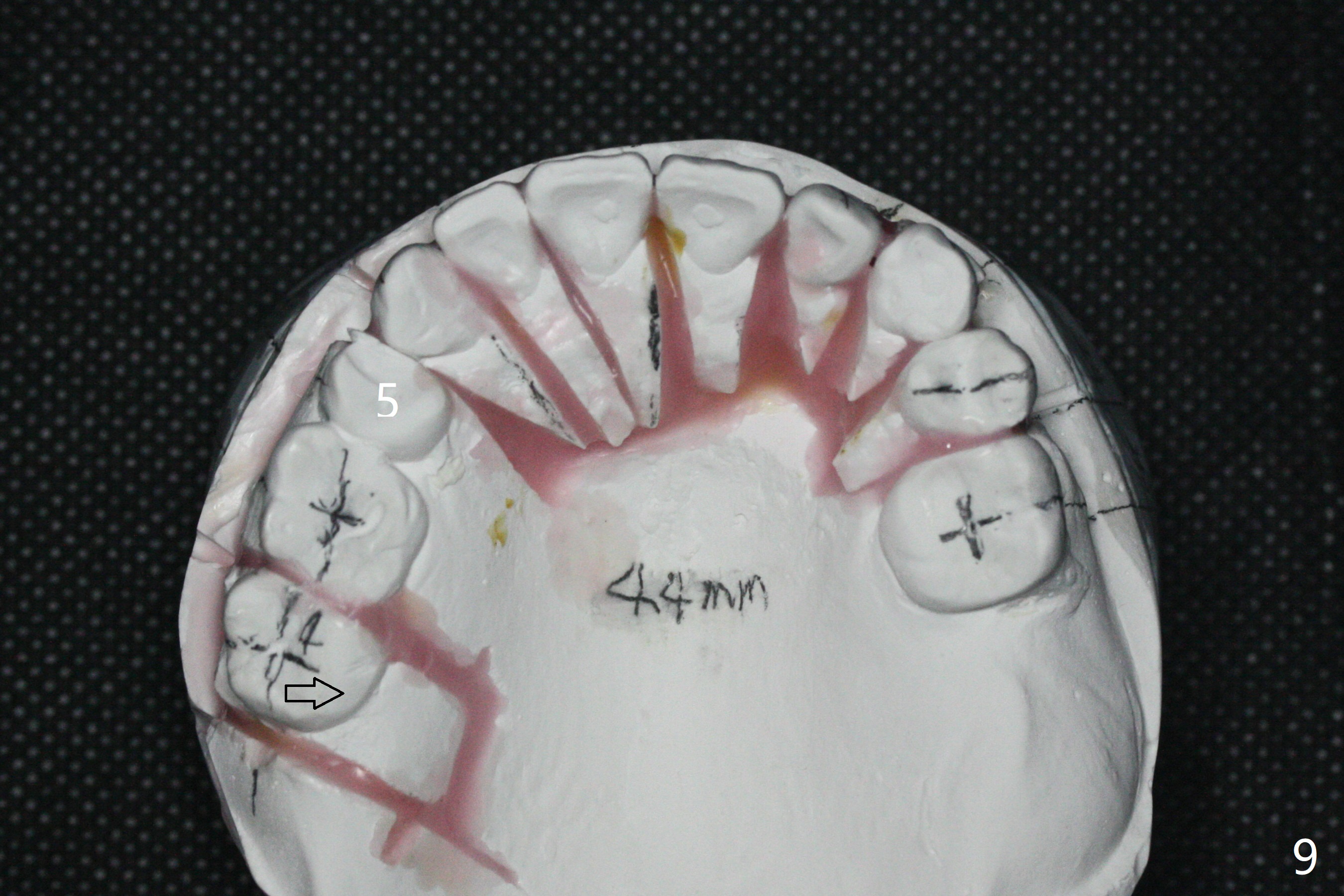

A 54-year-old man remains difficult in mastication in spite of implant placement at #14 and 31 (Fig. A, B, E, including screw loosening (poor trajectory at #14)).  In addition to 2 more implants at #15 and 18 with guide, malocclusion seems to be necessary to be addressed (Fig.1-5).  It appears that UR, LL4 should be extracted for orthodontic treatment (Fig.6-10).  To reduce screw loosening, IS guide will be used to place IBS (5x9mm) and tissue-level (5x11mm) implants at #15 (PRF)and 18, respectively.  If the one at #14 or 15 keeps loosening, splint #14 and 15 crowns.  In fact the patient agrees with limited ortho (UR7 cross bite).

Return to Upper Lower Molar Immediate Implant, Trajectory
Xin Wei, DDS, PhD, MS 1st edition 05/27/2019, last revision 07/14/2019
