IS Guide for IBS Implants

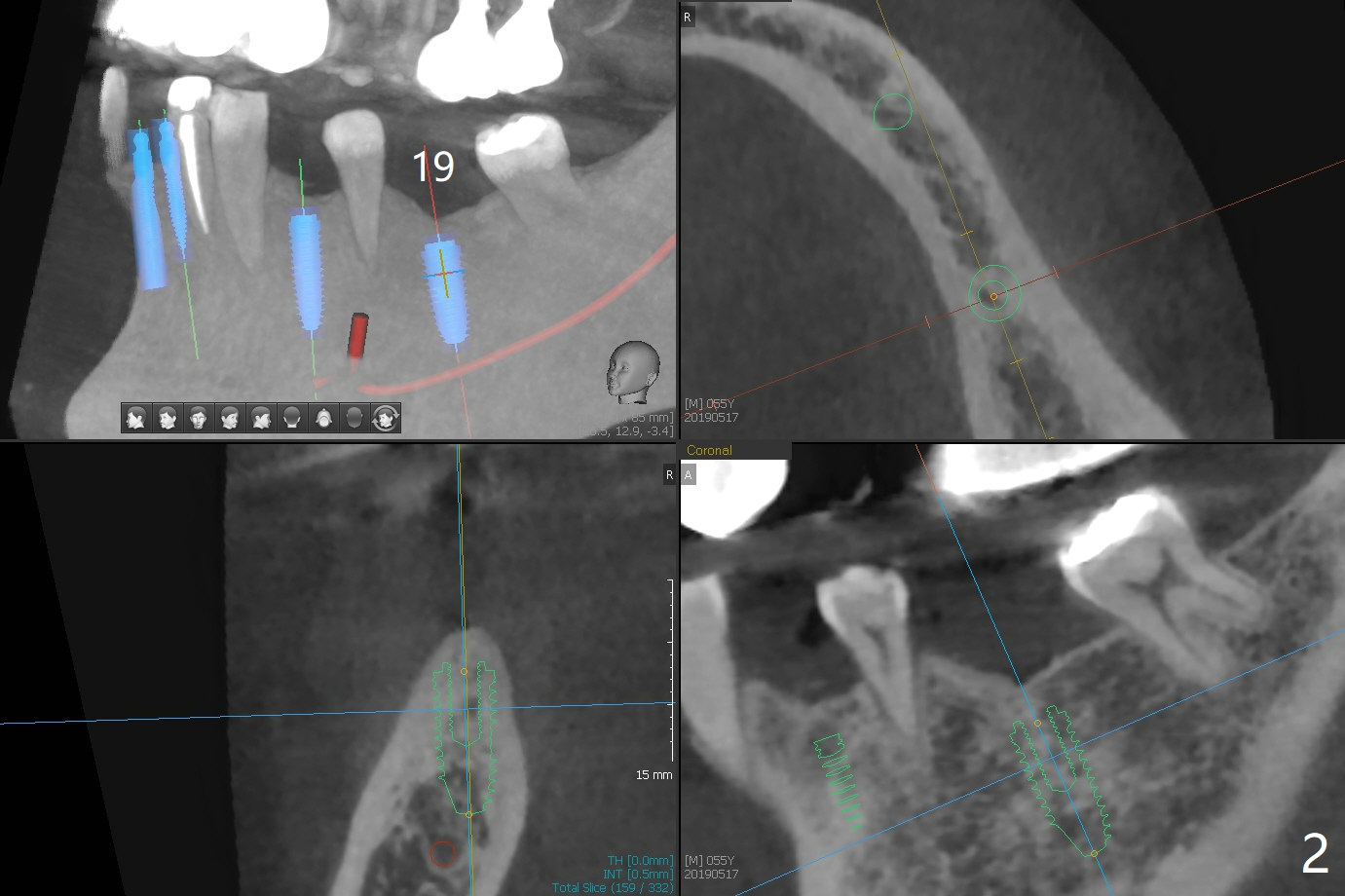

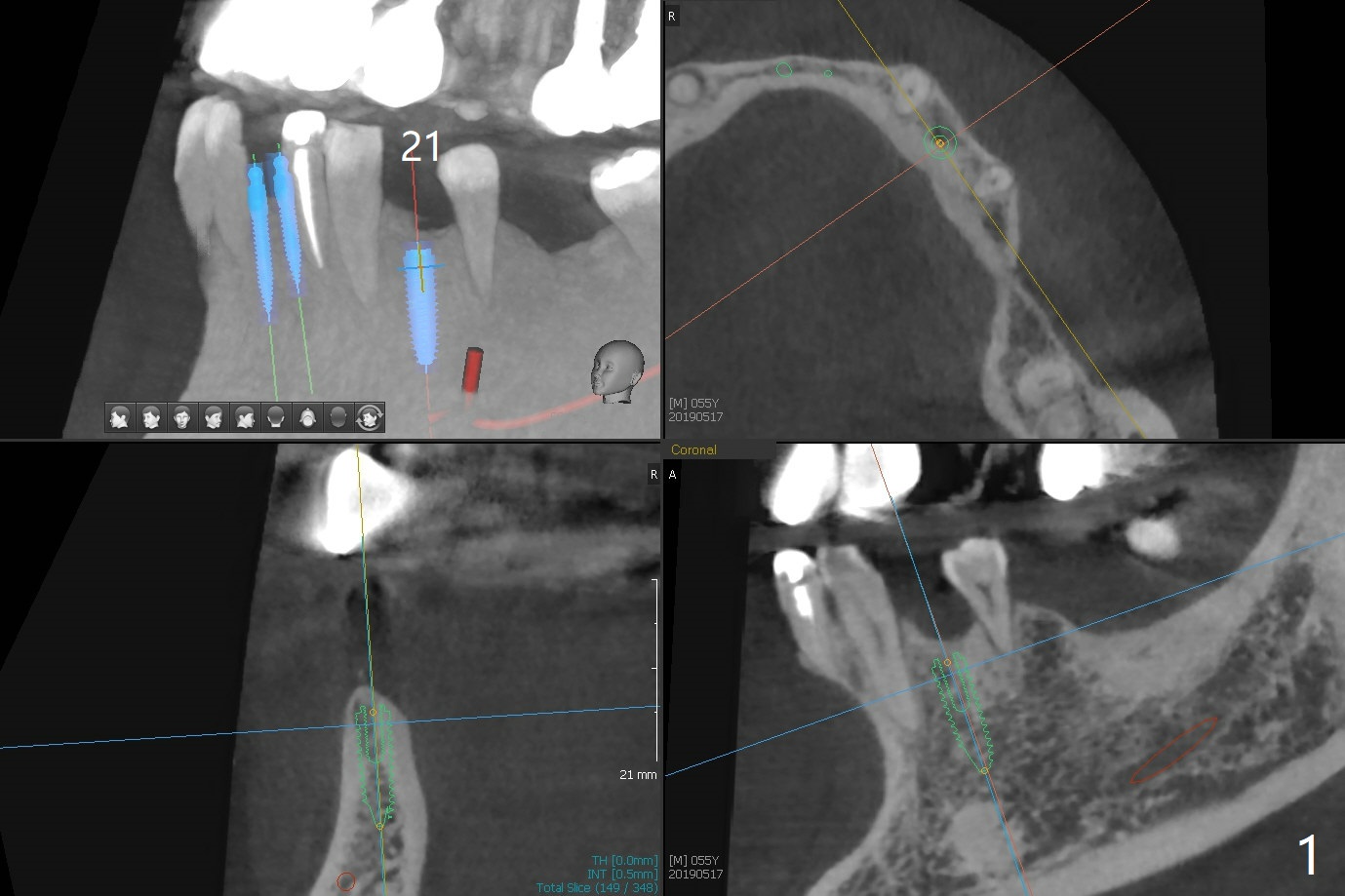

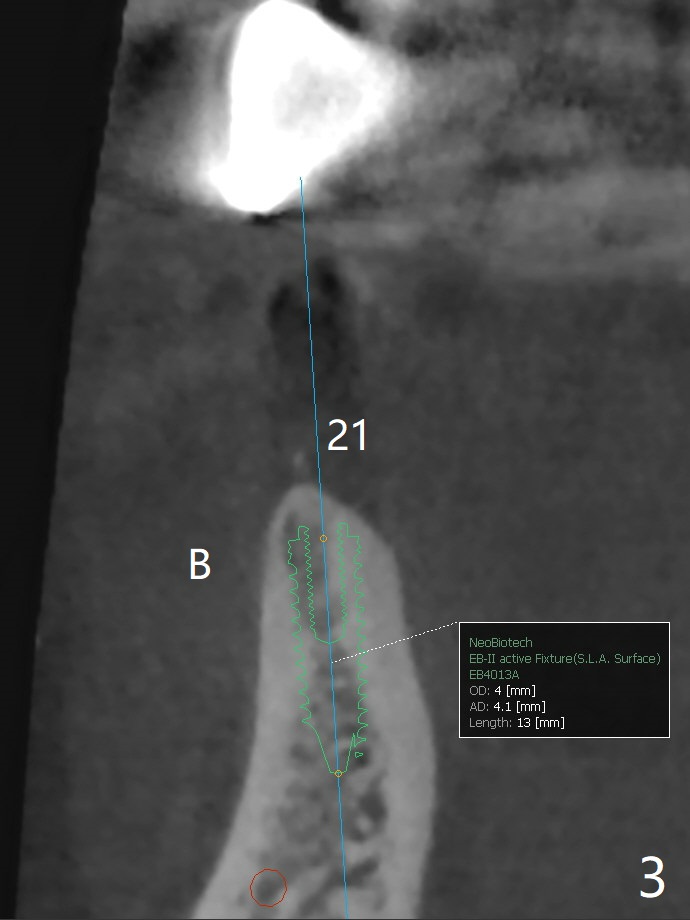

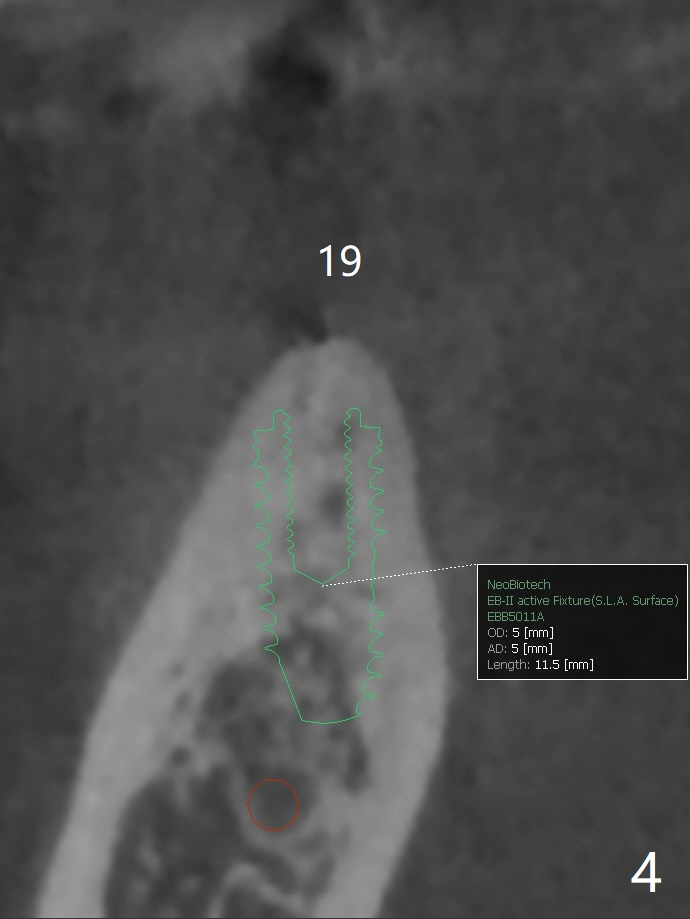

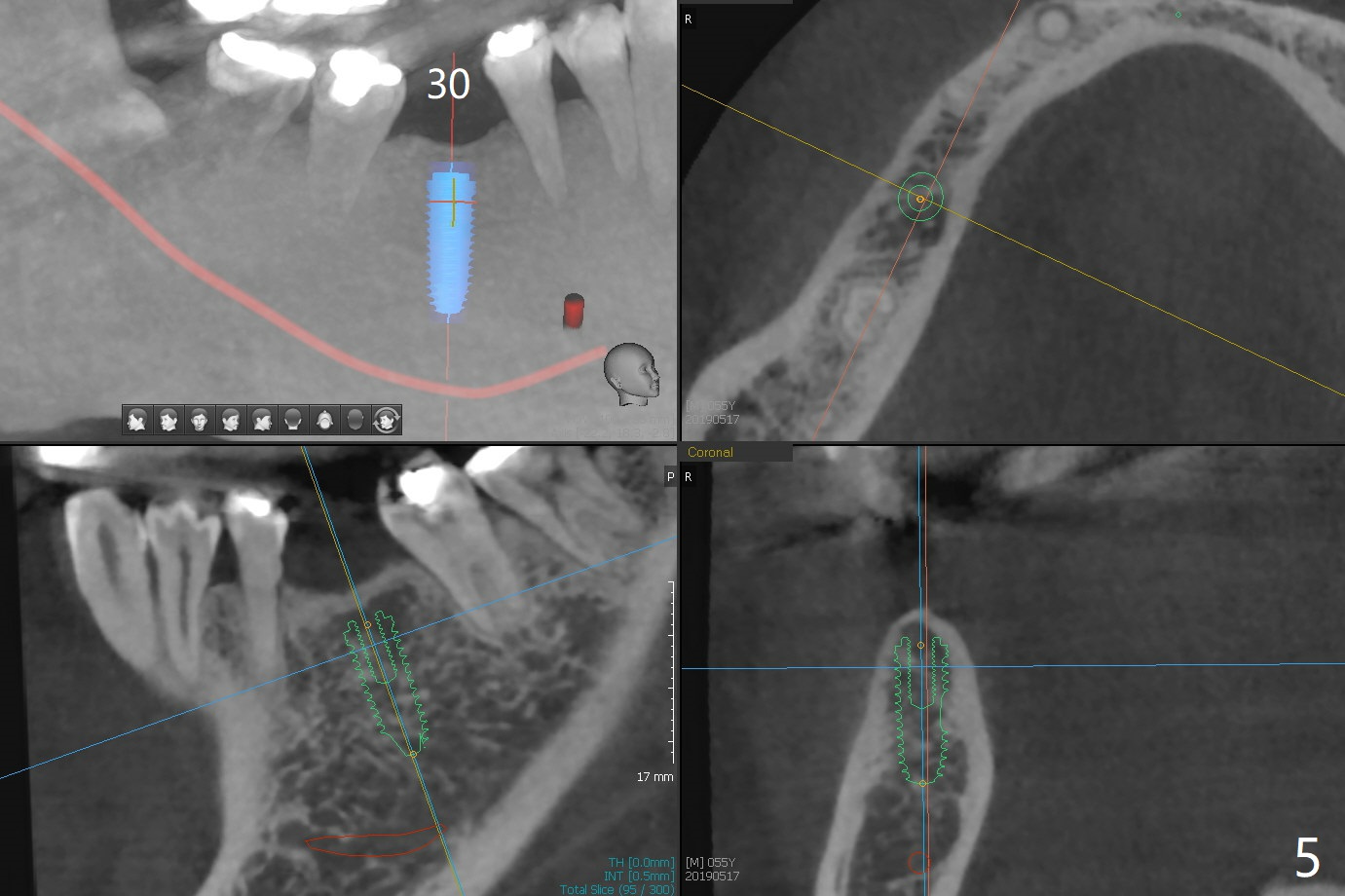

The implants at #11, 14 and 15 are IBS.  To reduce the chance of screw loosening, IS guide will be used for better trajectory at #19,21,30.  Since the ridge at #21 and 19 is pointed at the top, the implant will be placed deep (Fig.1-4).  Bone trimmer will be used prior to pointed drill to avoid drill deflection.  Check whether the IS implant driver fits IBS implant well.  Try dummy implants first.

Return to Lower Molar Immediate Implant, Trajectory Introduction 24/25
Xin Wei, DDS, PhD, MS 1st edition 05/19/2019, last revision 06/04/2019
