Redo Implant with Existing Guide

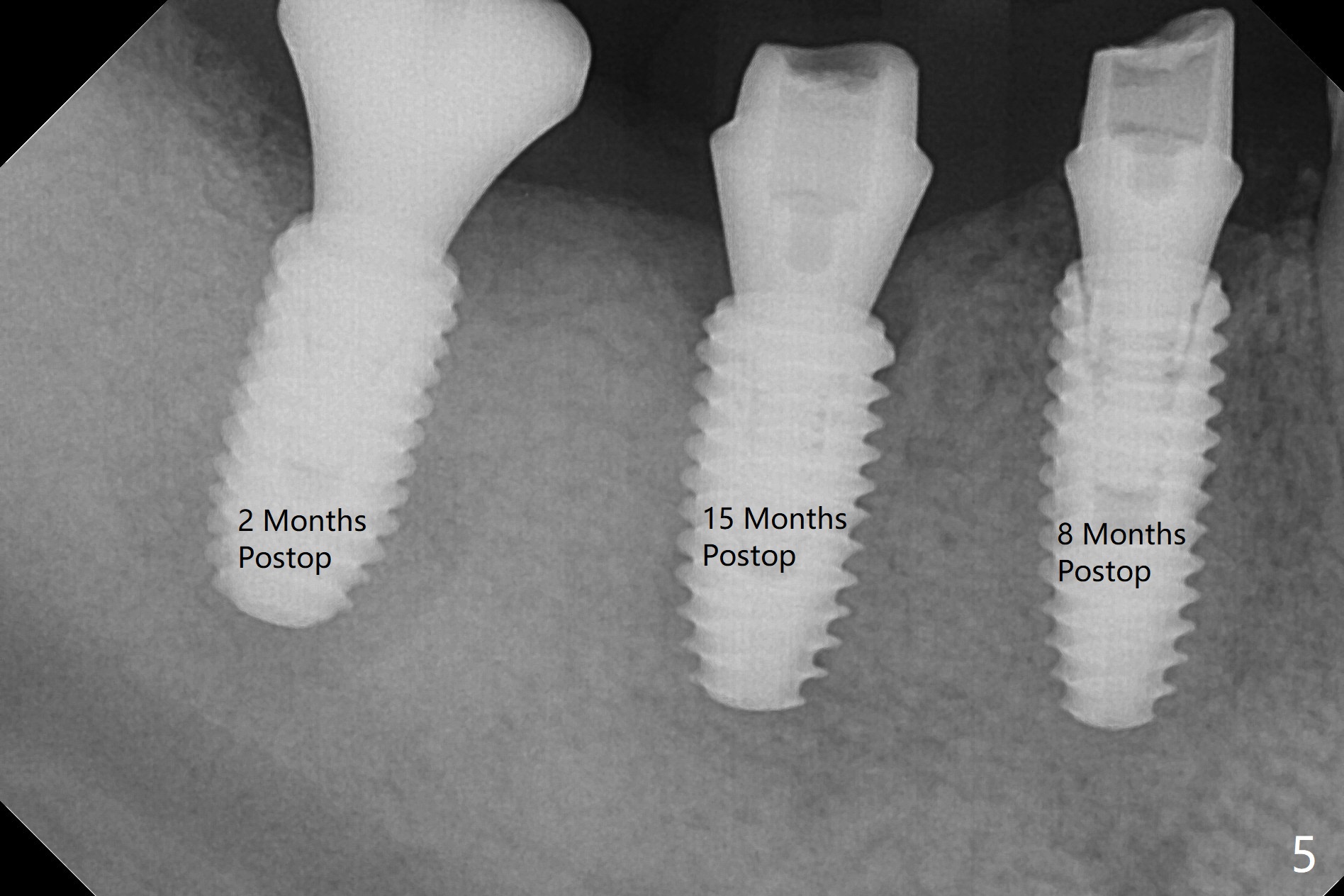

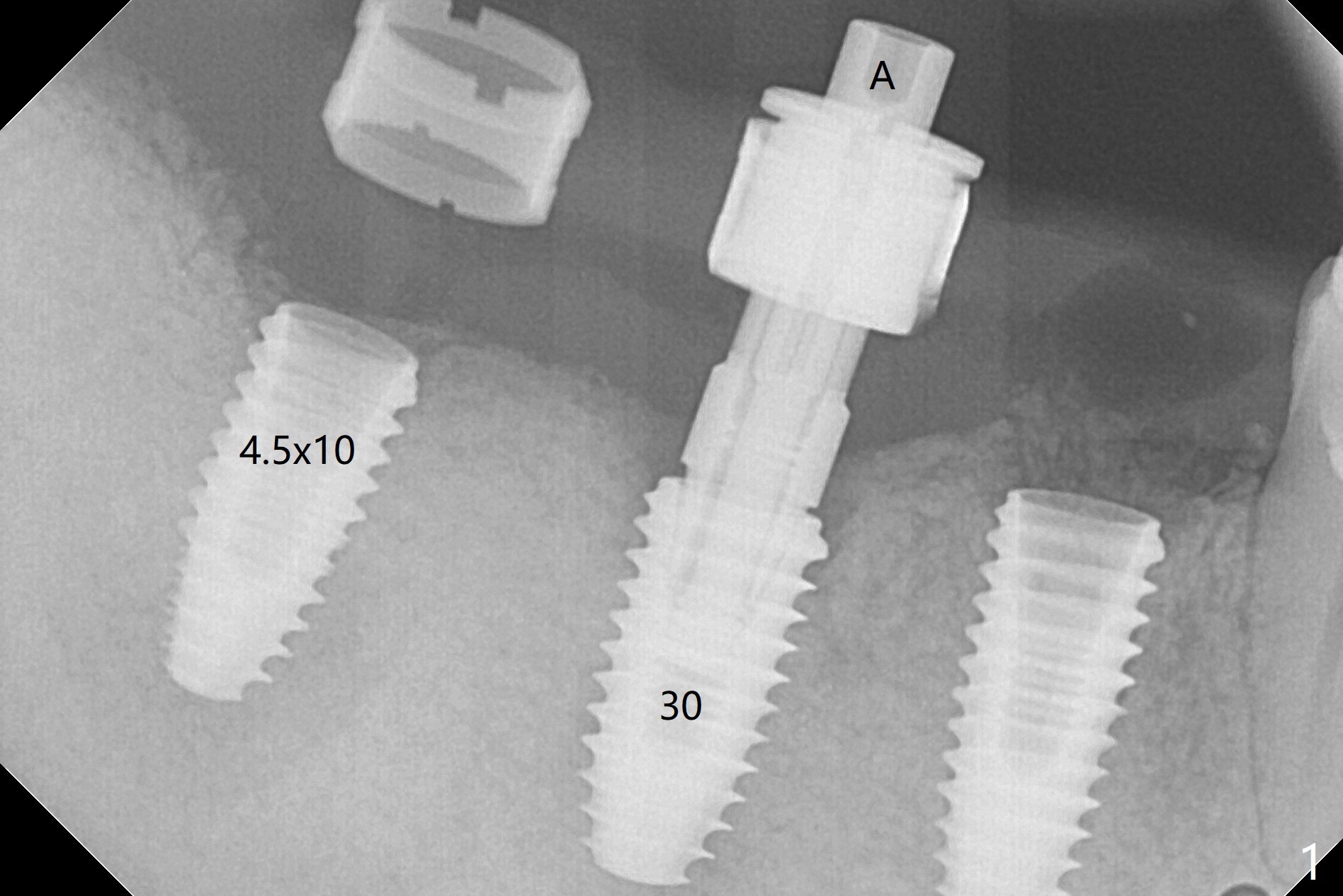

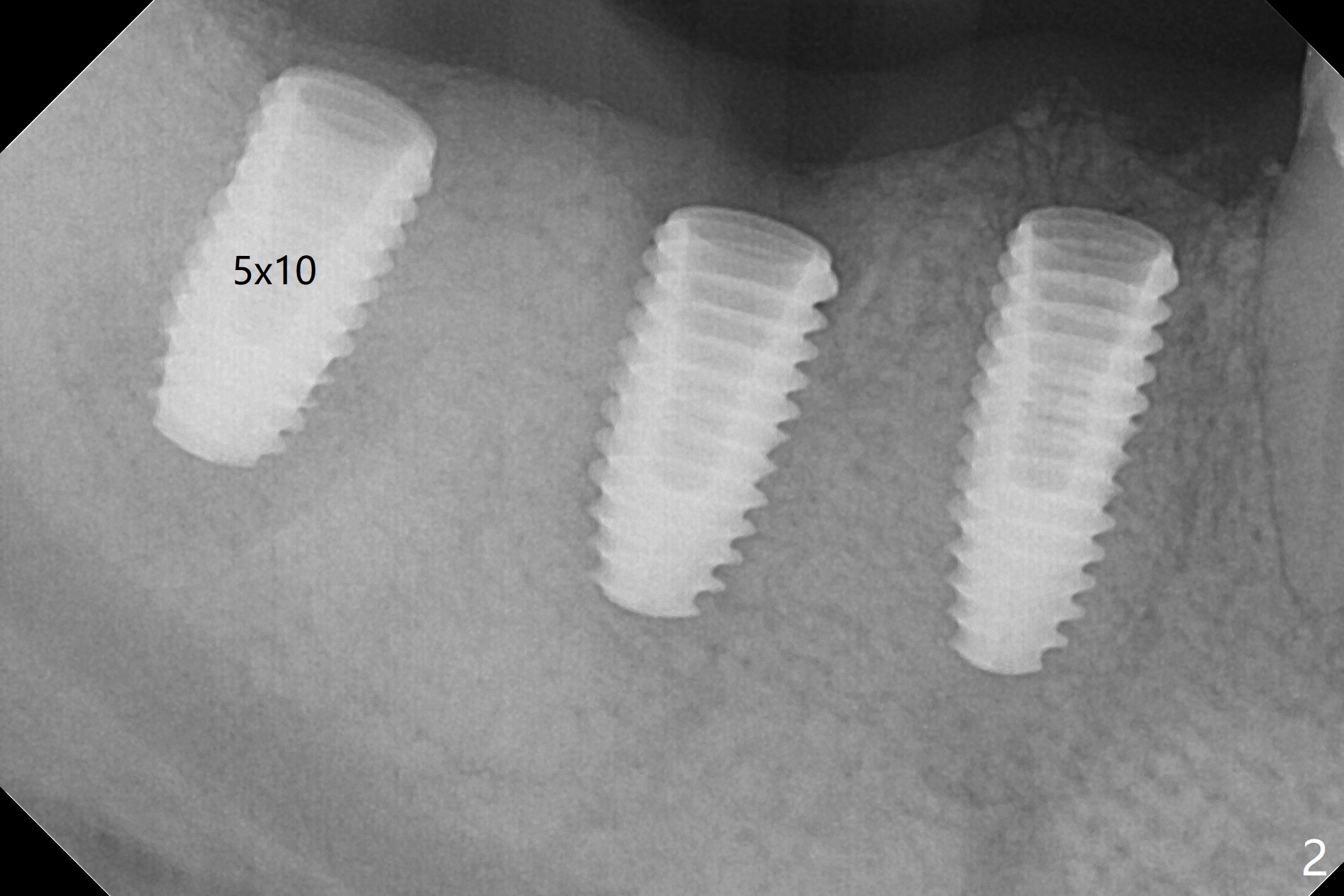

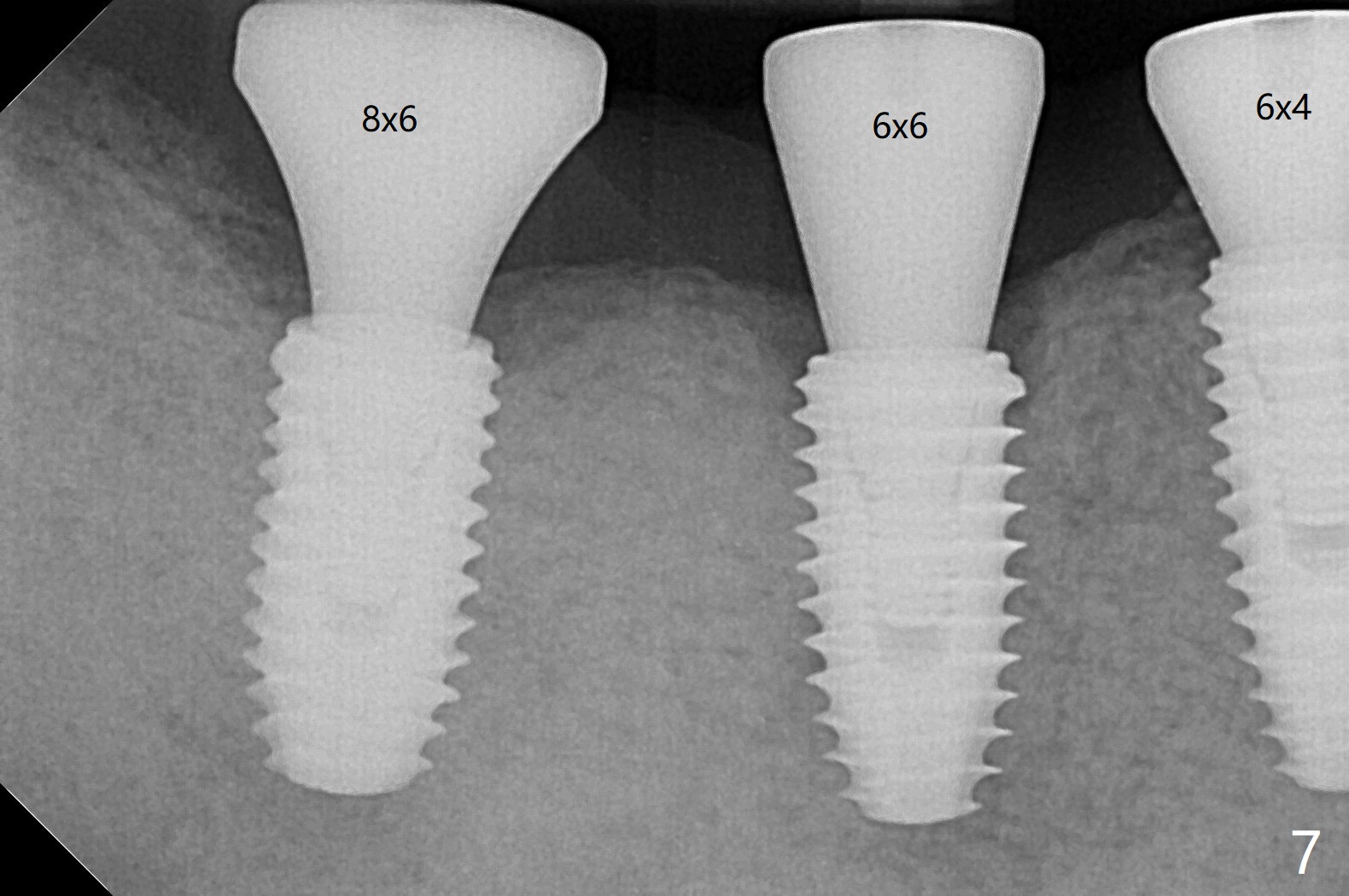

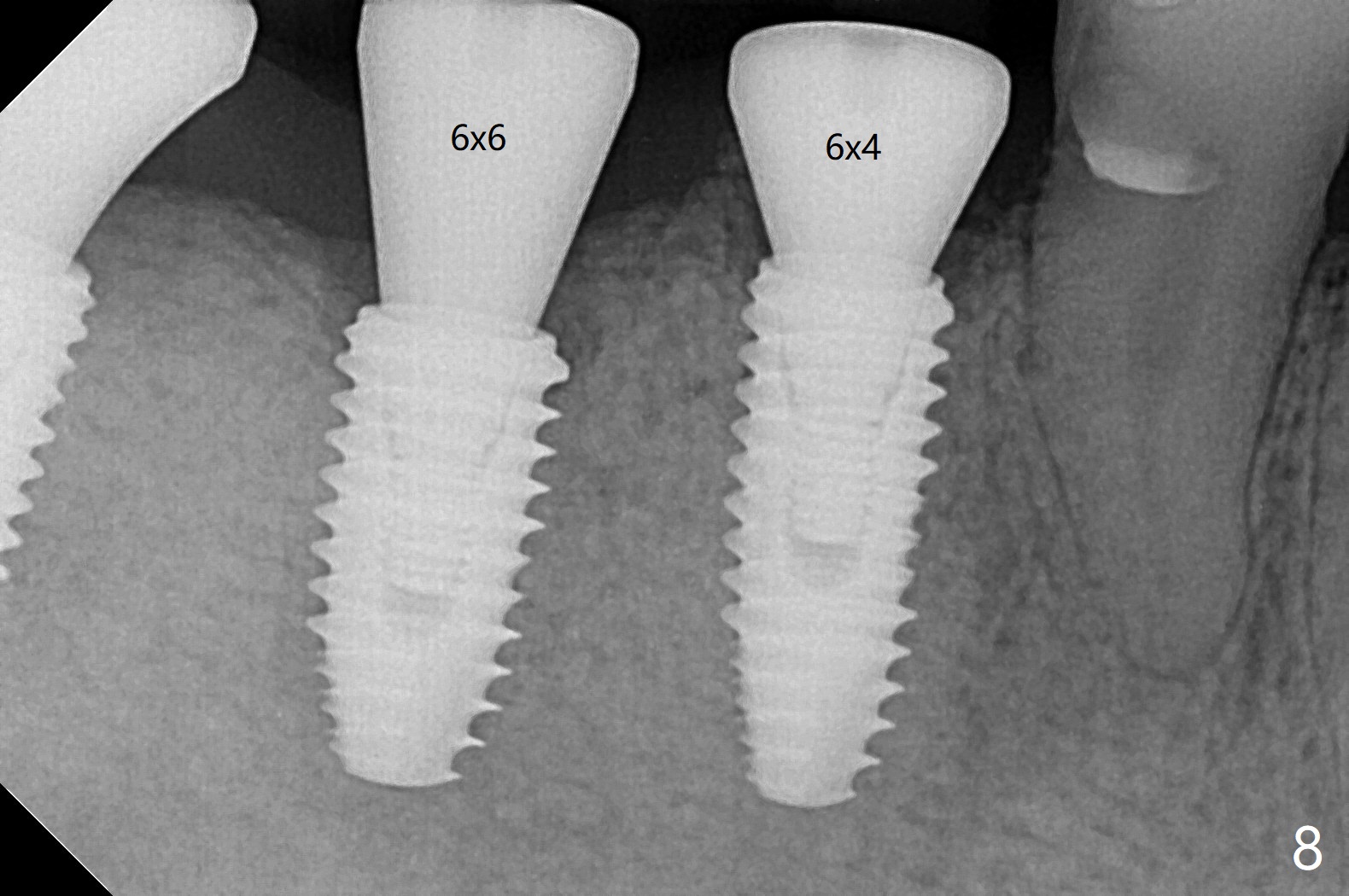

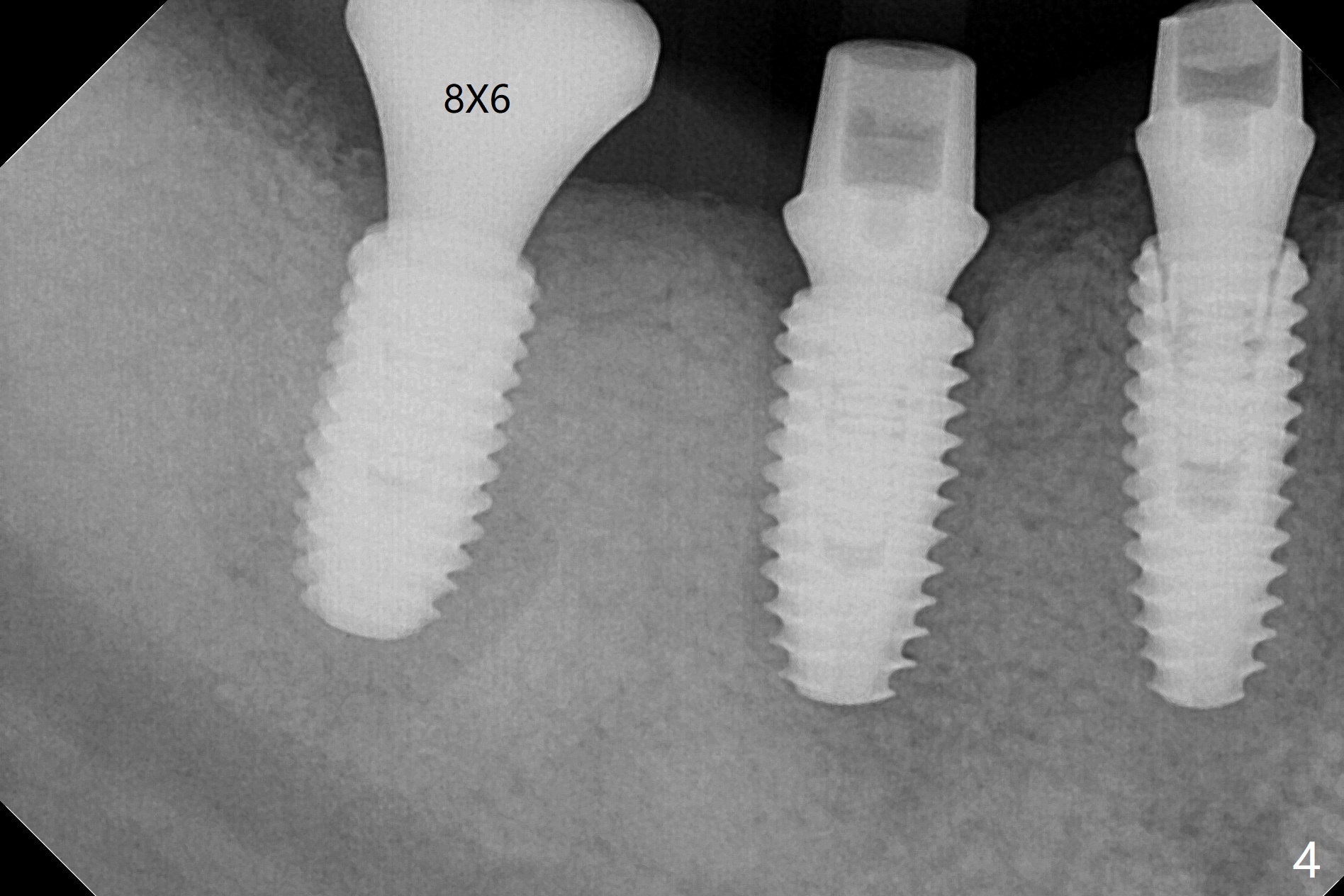

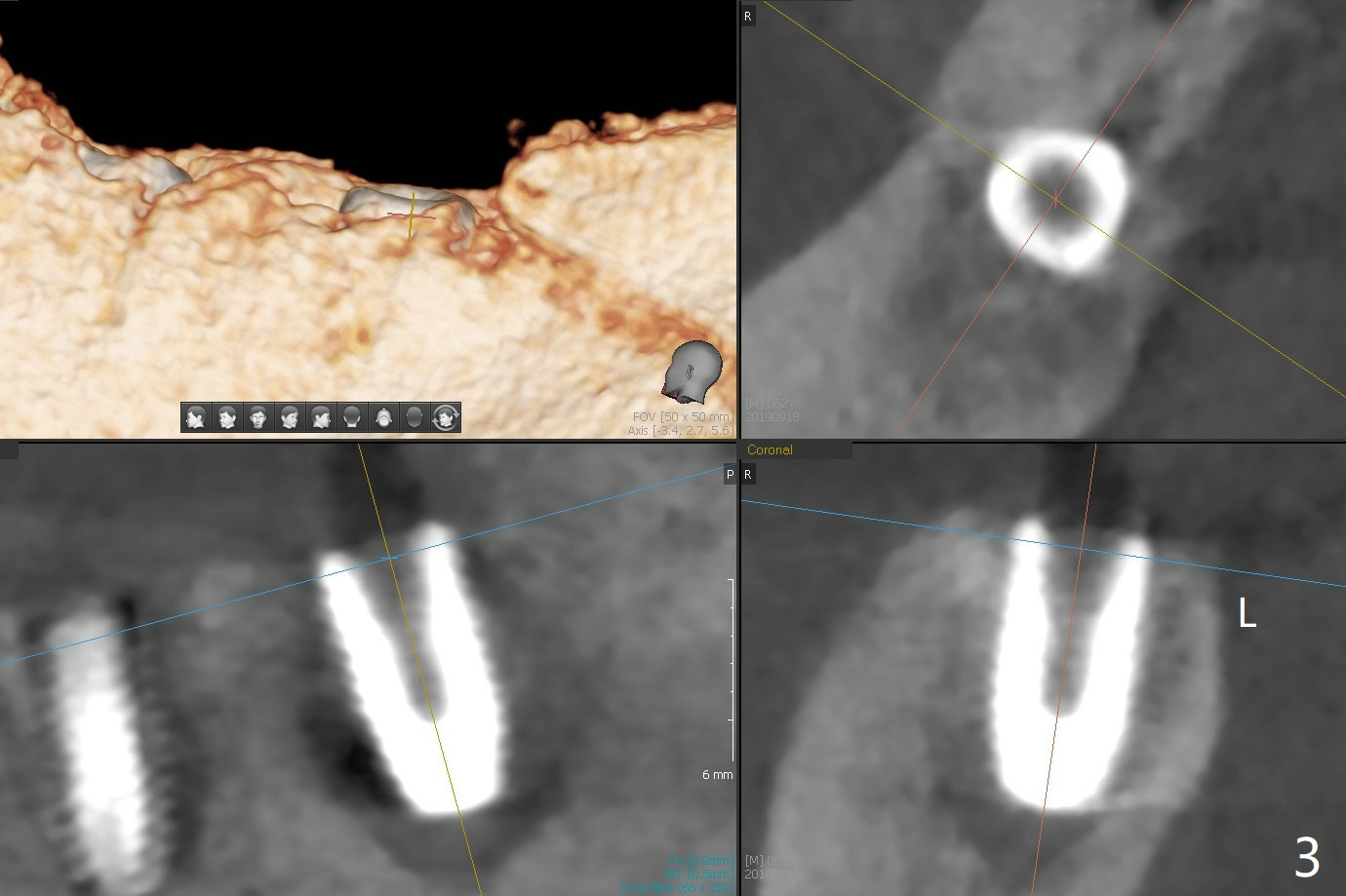

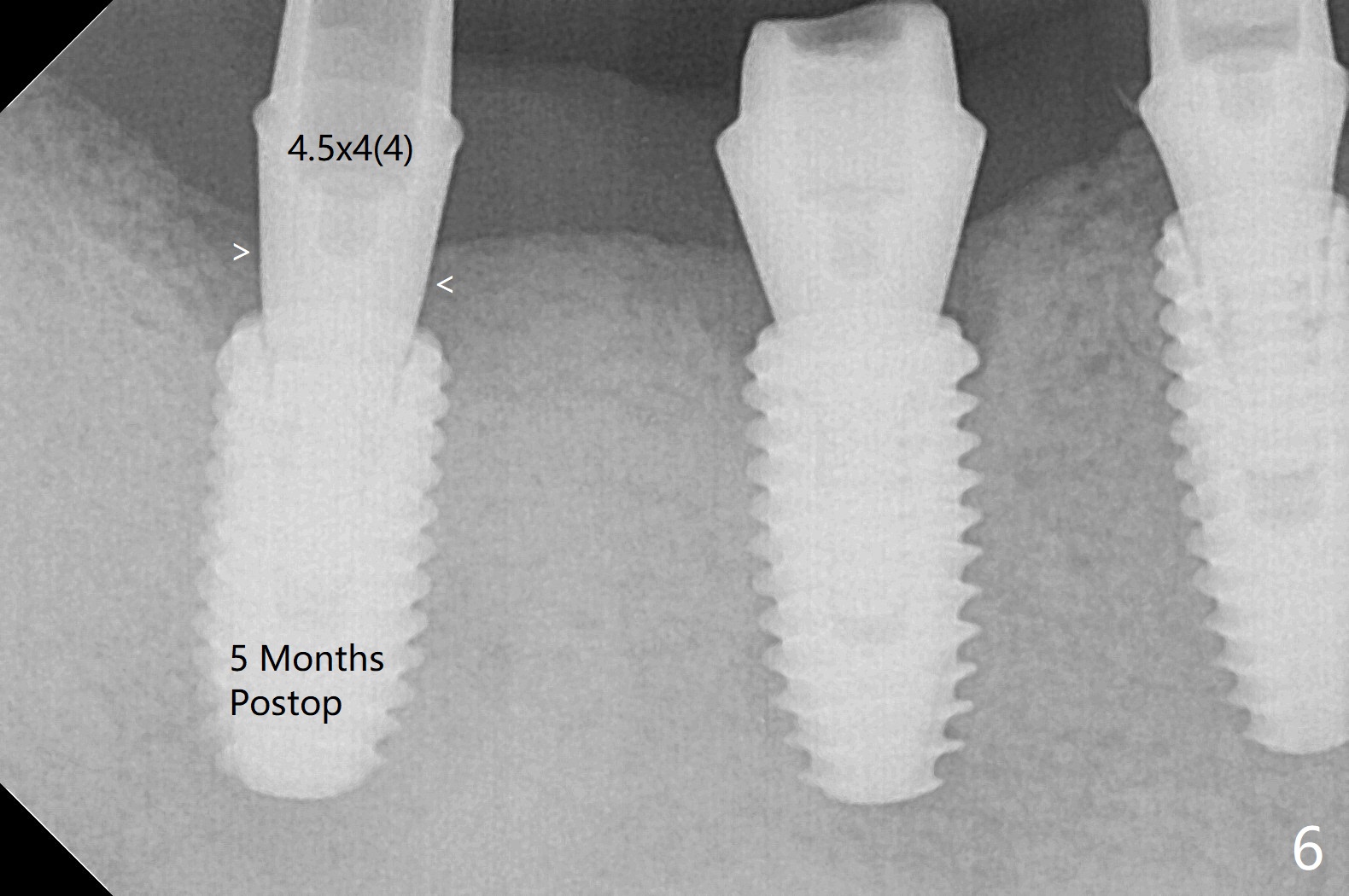

Five months post #31 implant removal with bone graft, osteotomy is initiated for a 5x10 mm implant using an existing guide.  A question arises suddenly whether the bone height is reduced.  Therefore a 4.5x10 mm dummy implant is placed with a fixture anchor placed at #30 (Fig.1 A).  After using 4.5x8.5 mm drill with regular offset, a 5x10 mm definitive implant is placed with ~ 35 Ncm (Fig.2,3).  After placement of the implant .5 mm deeper, a 8x6 mm healing abutment is placed, while the abutments return to #29 and 30 for splinted provisional (Fig.4).  Two months later, the cemented abutment at #29 is loose (Fig.5) and retightened, but it remains incompletely seated for another 3 months (Fig.6).  So is the one at #31 (Fig.6).  After use of 4.6 and 5.6 mm bone profile drills, healing abutments are placed with apparently complete seating (Fig.7,8).

Return to Lower Molar Immediate Implant, Armaments, Trajectory II

Xin Wei, DDS, PhD, MS 1st edition 09/18/2019, last revision 02/15/2020
