Magic Sinus Lift

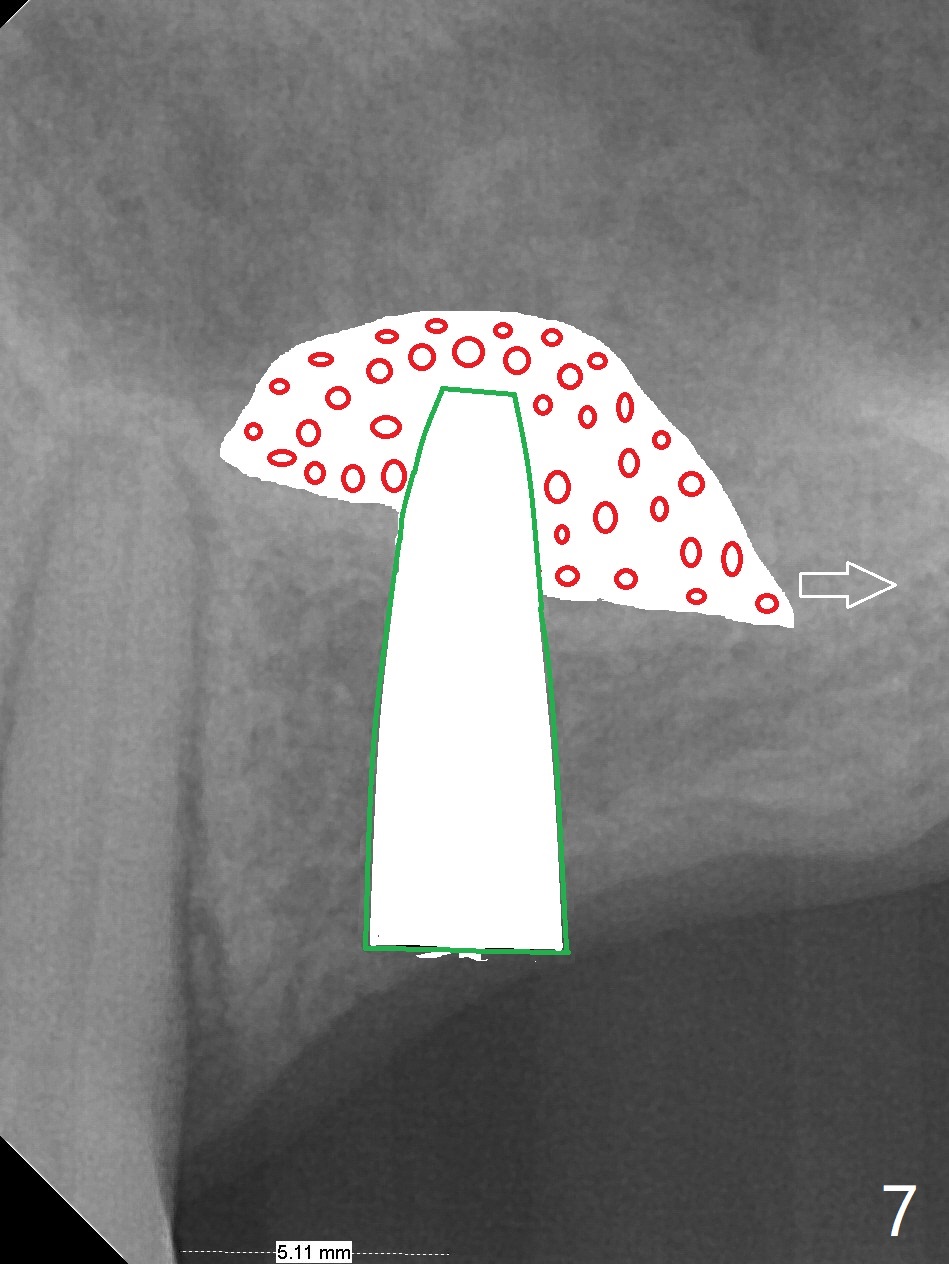

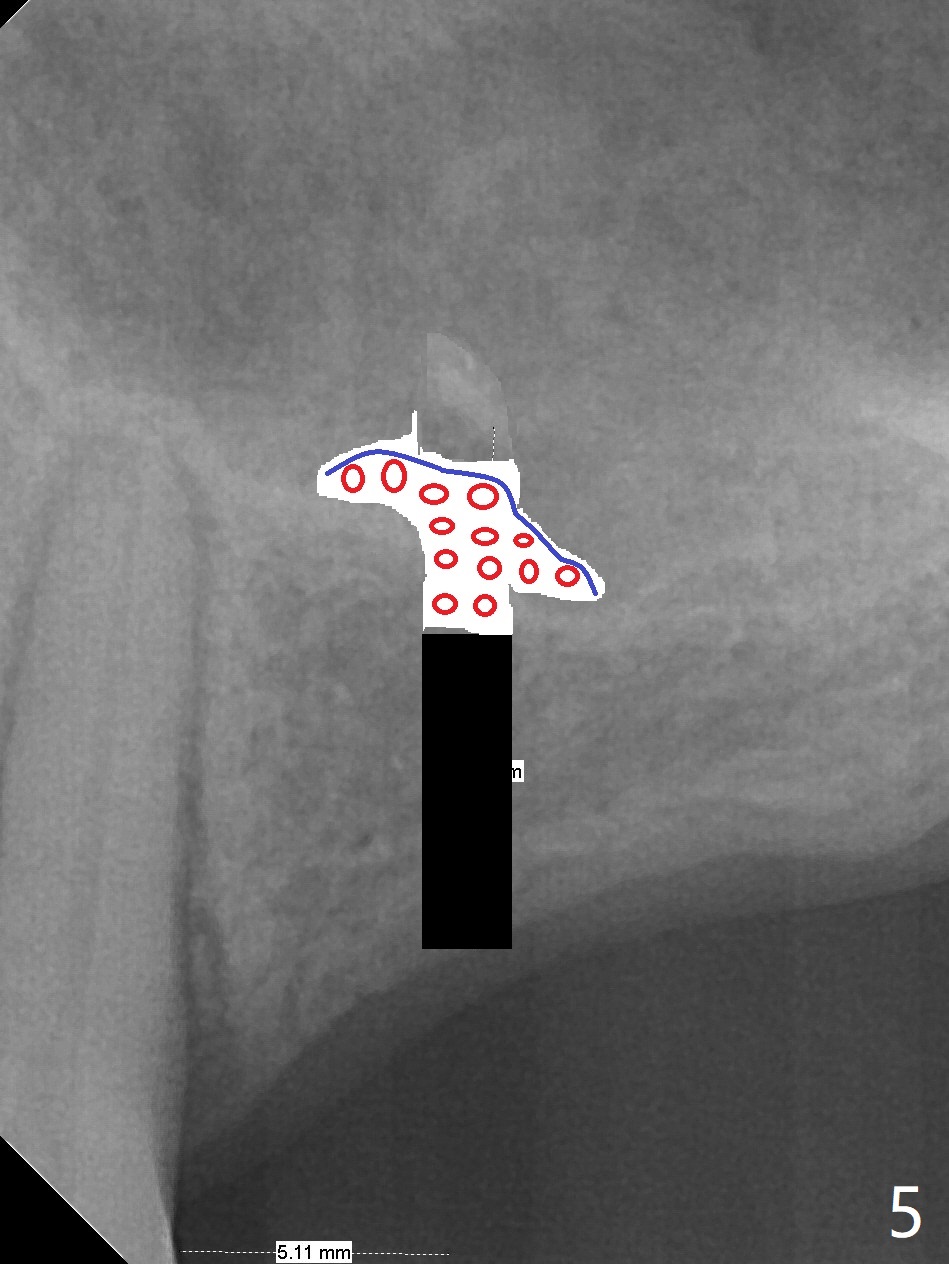

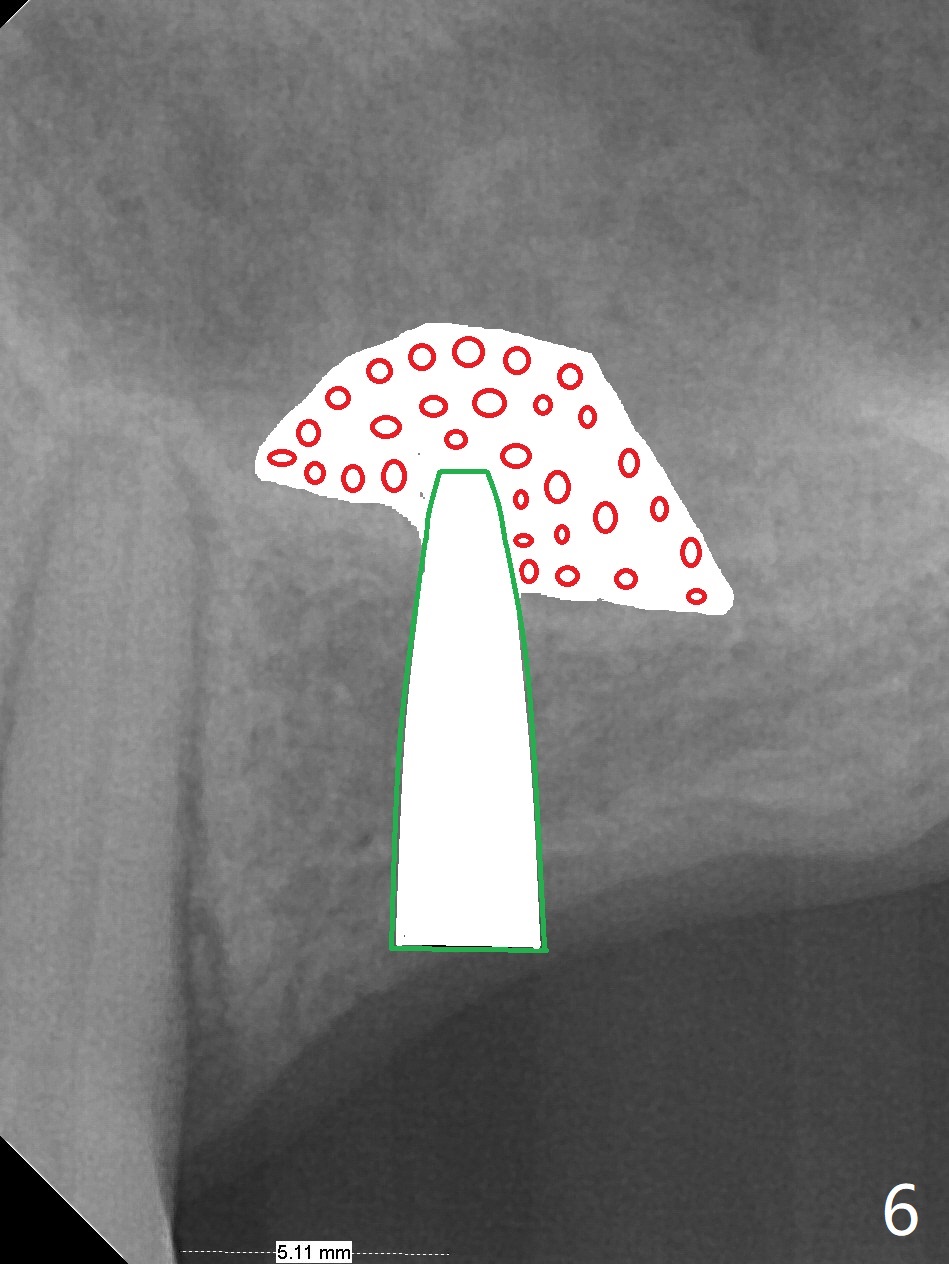

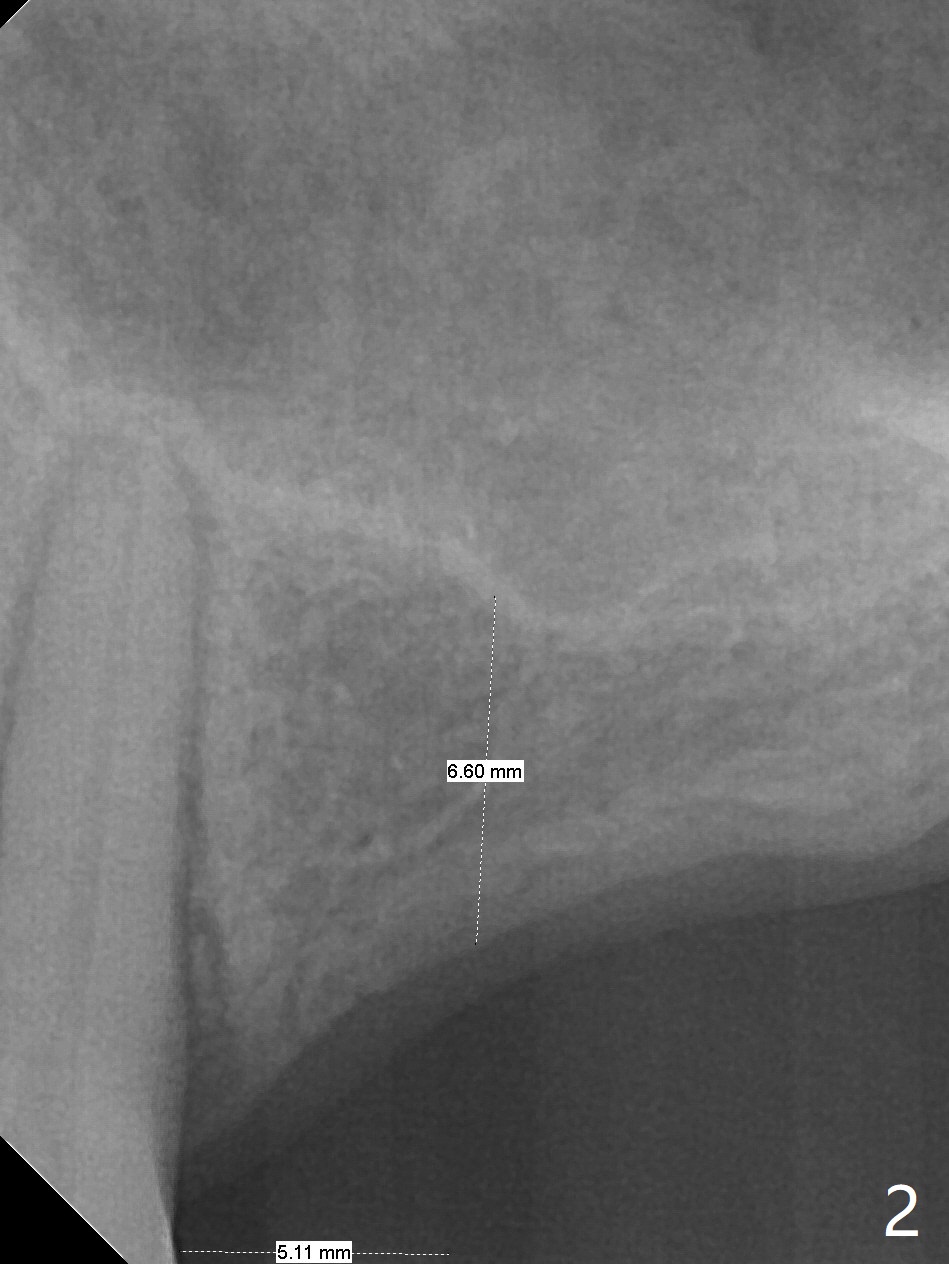

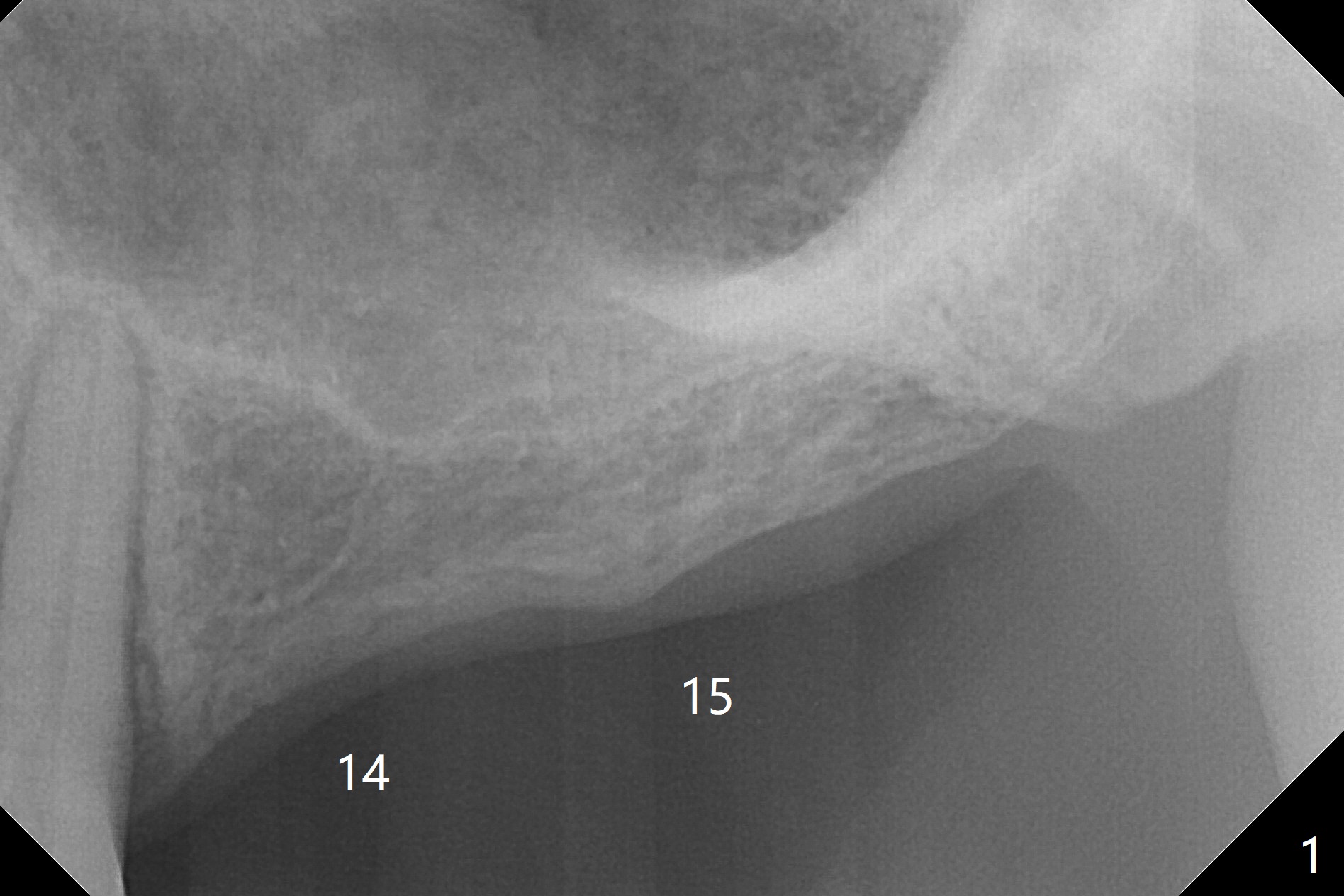

A 57-year-old woman has lost #14,15 and 18 for a while (Fig.1).  Because of fear, an implant will be placed at #14 first (Fig.2).  After use of Magic Drill for 5 mm (Fig.3), Magic Lifter will be used for lift (Fig.4).  Following placement of PRF membrane (Fig.5 blue) and Vanilla Graft (red circles), a dummy implant is placed for additional lift (Fig.6 green).  With placement of a larger and probably longer definitive implant, the graft may migrate distal due to gravity in sleep (Fig.7 arrow).  In a few months, the bone height at #15 may increase to facilitate implant placement at #15.

Return to Upper Molar Immediate Implant, Armaments Xin Wei, DDS, PhD, MS 1st edition 01/15/2018, last revision 08/18/2019
