Distopalatal Entry

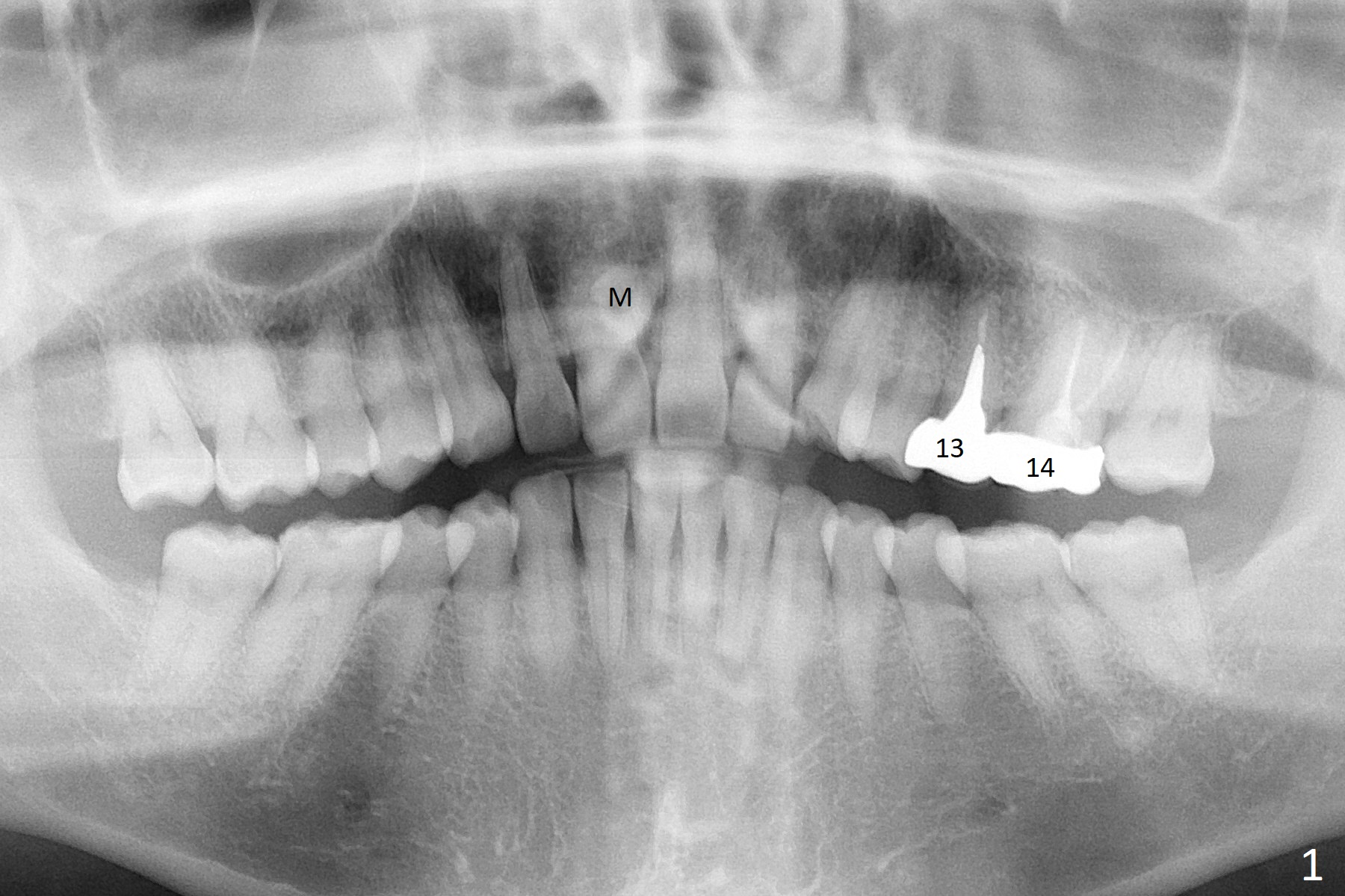

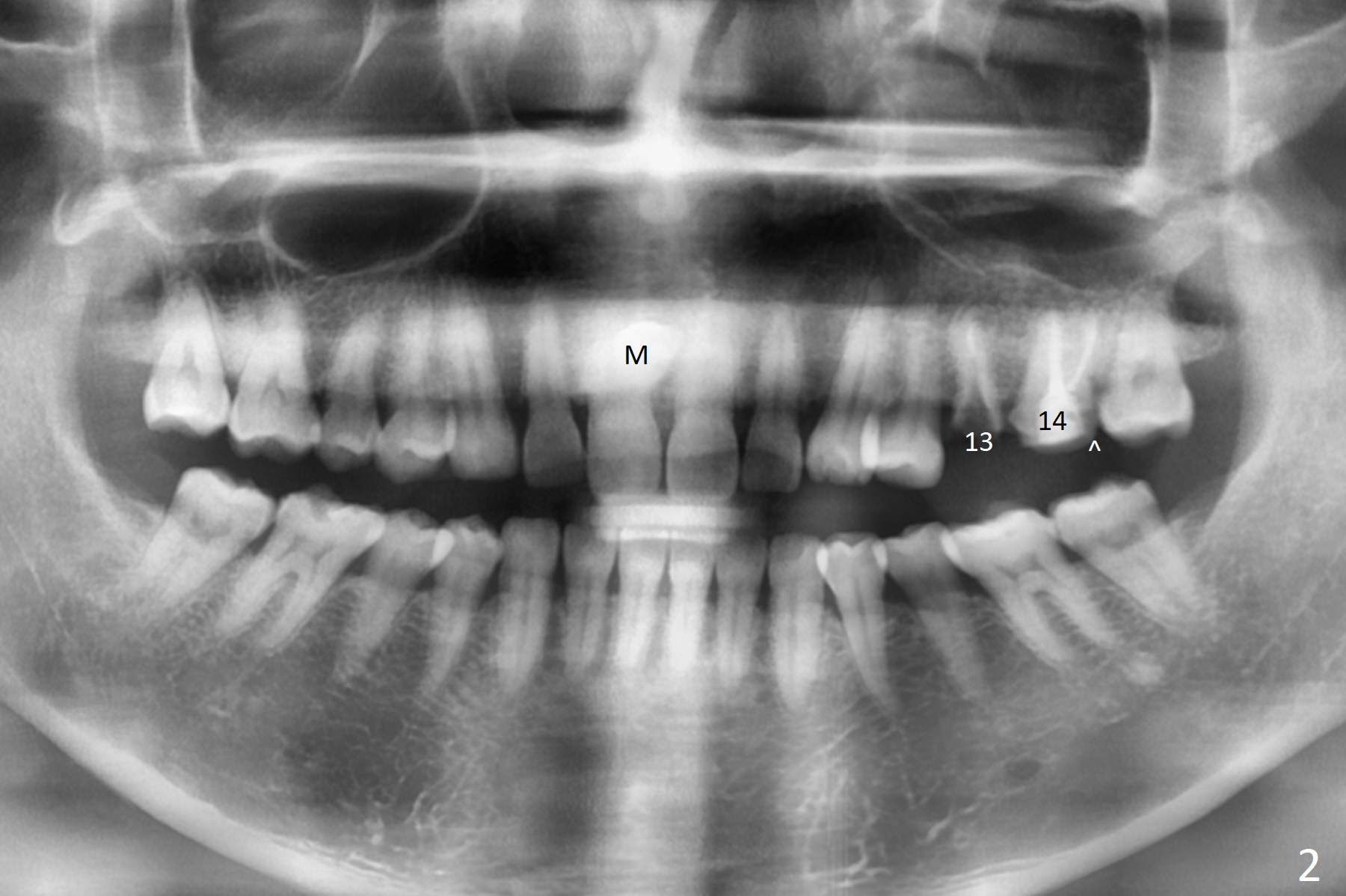

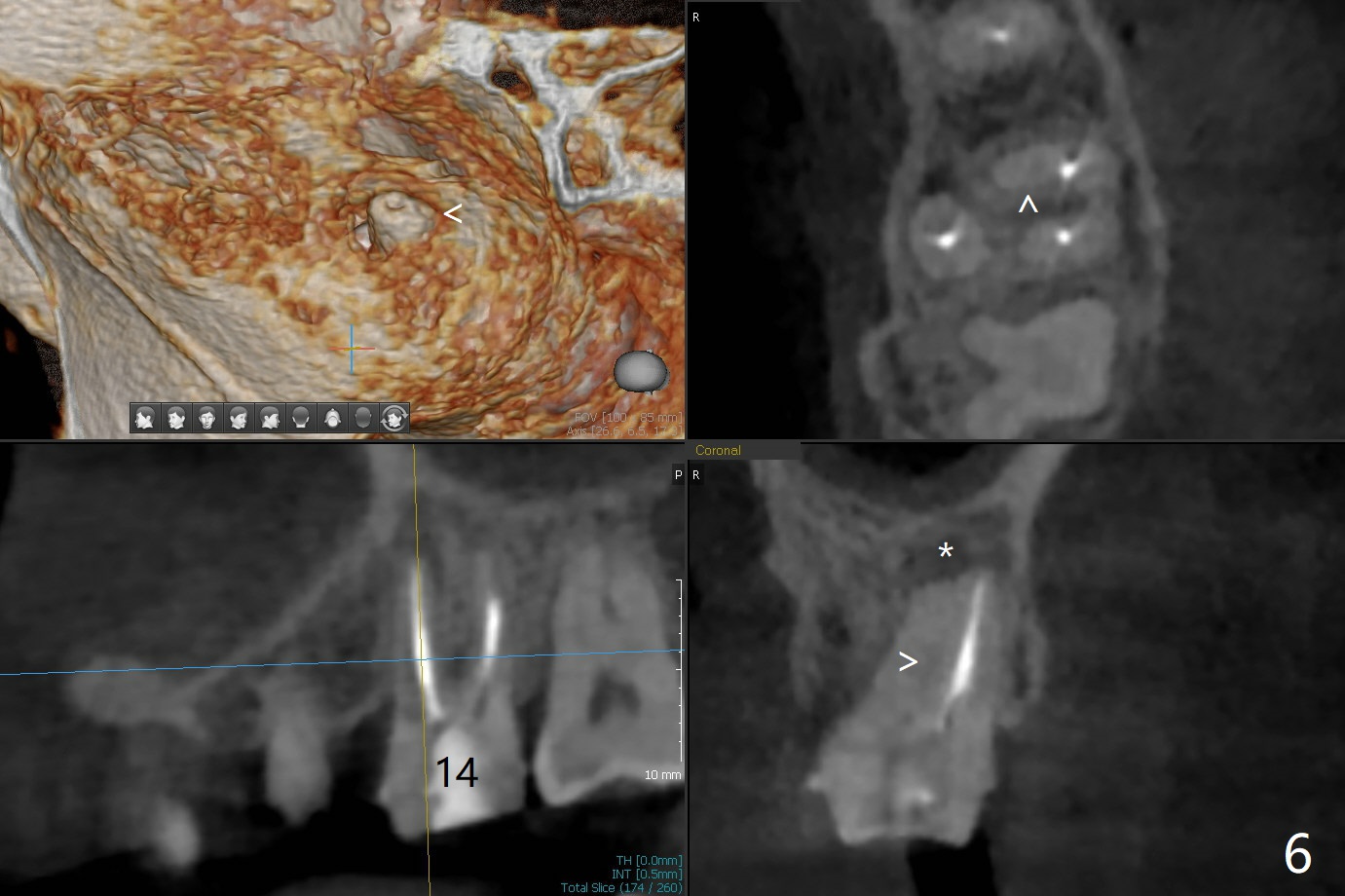

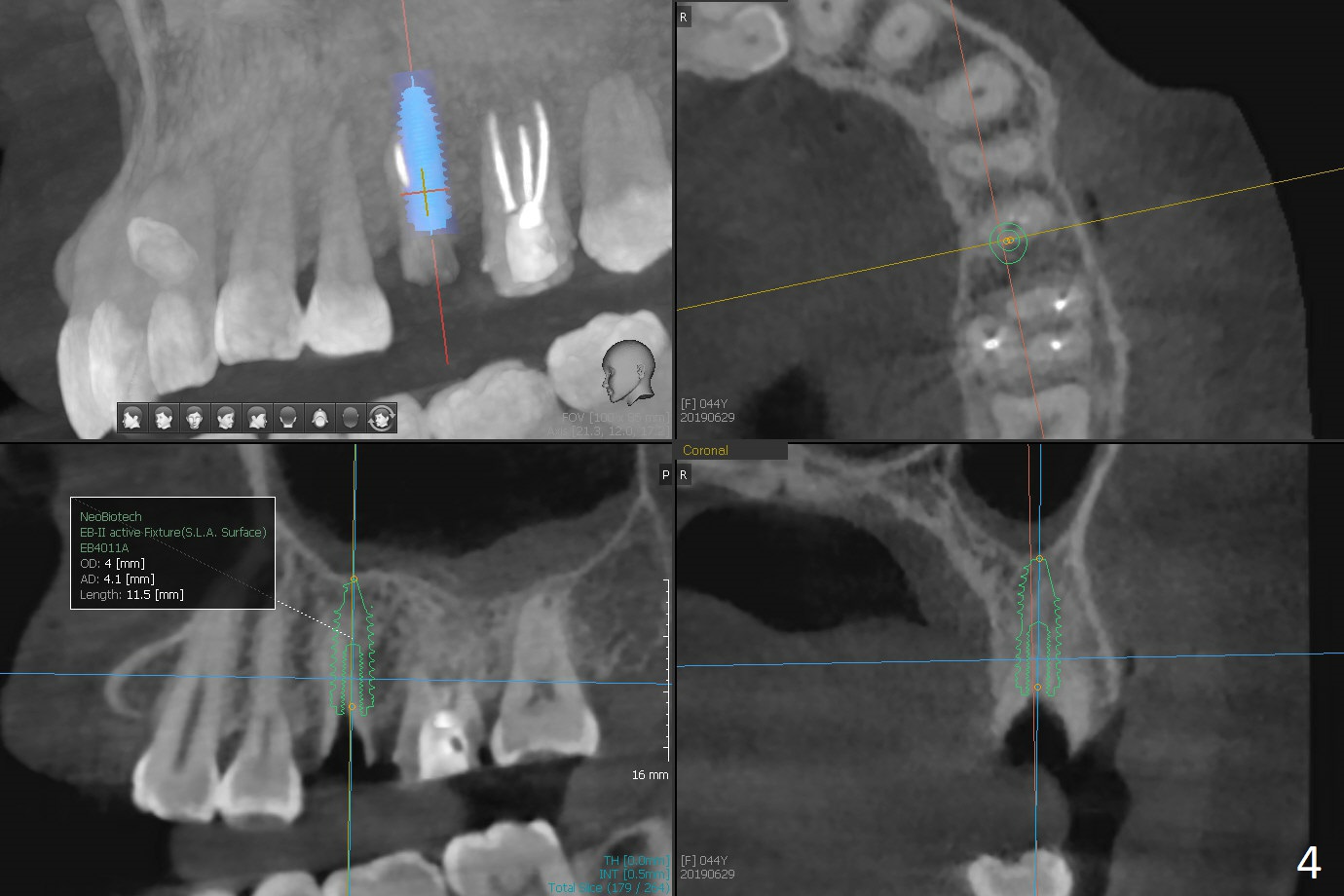

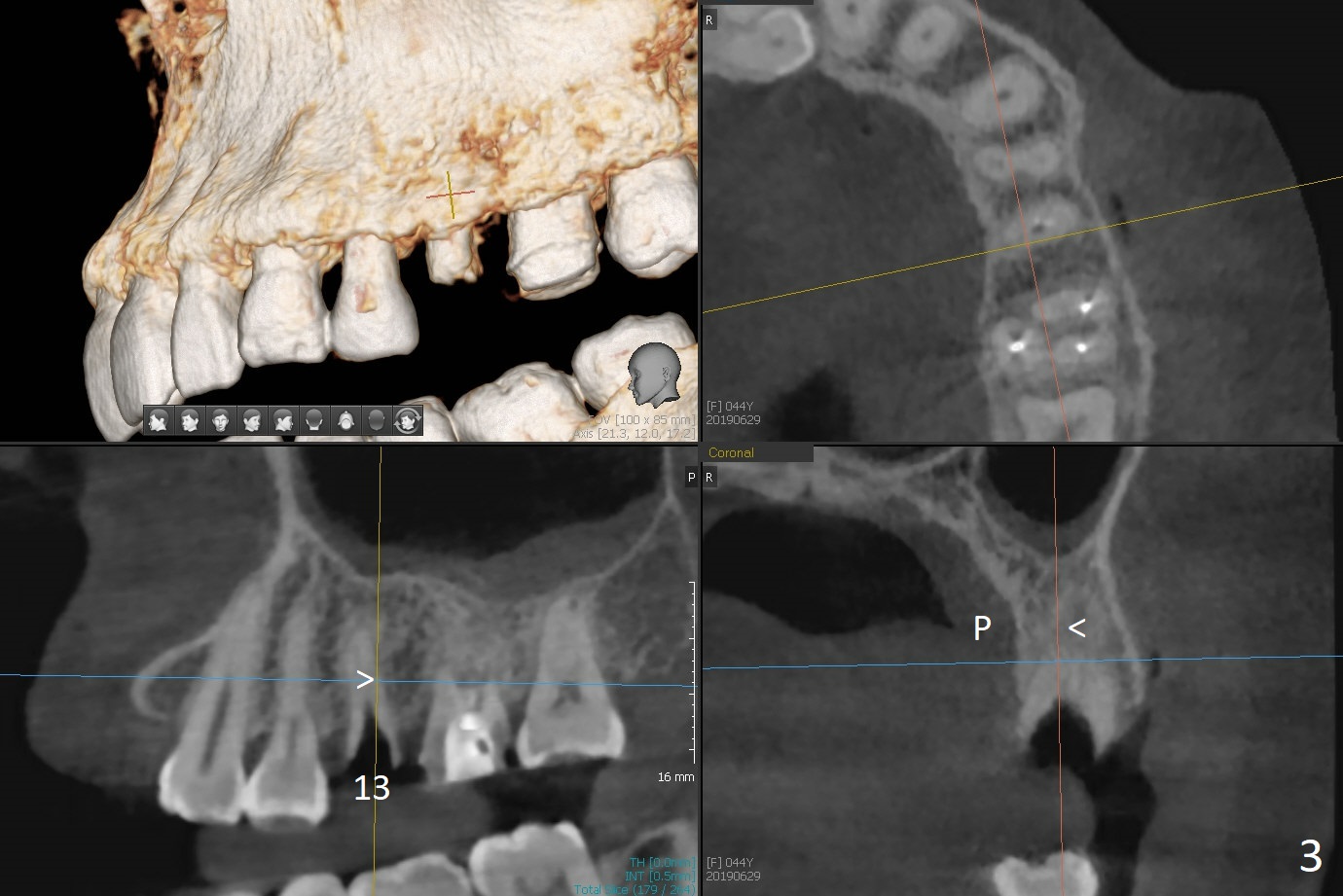

A 44-year-old woman used to have splinted crowns at #13 and 14 (Fig.1).  Their dislodgement is due to residual roots at #13 and distal caries at #14 (Fig.2 ^).  To avoid the distally curved apex of #12 and to have ideal trajectory of an IBS implant (Fig.4), osteotomy will be initiated in the distopalatal slope of the socket (Fig.3 arrowheads).  The patient wants to correct the tooth #8 with rotation (Fig.5), which is due to a mesiodens (Fig.1,2 M).  It will be accessed palatal (Fig.5 P).  In fact there is percussion at #14 associated with MB2 (Fig.6 arrowheads) and PARL (*).
