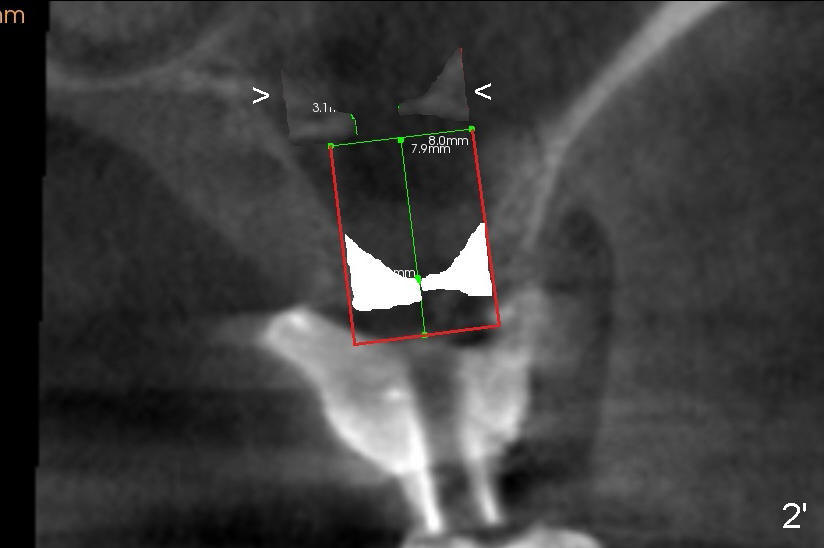

Fig.2: CBCT coronal section of the edentulous area of #14 (surgical stent for CT scan).  The red boxed area represents a 8x11 Tatum screw implant to be engaged into both the buccal (B) and lingual (L) walls of the concave sinus floor for primary stability.

Fig.2' simulates sinus lift (<).
