Short and Narrow Septum of Upper 1st Molar

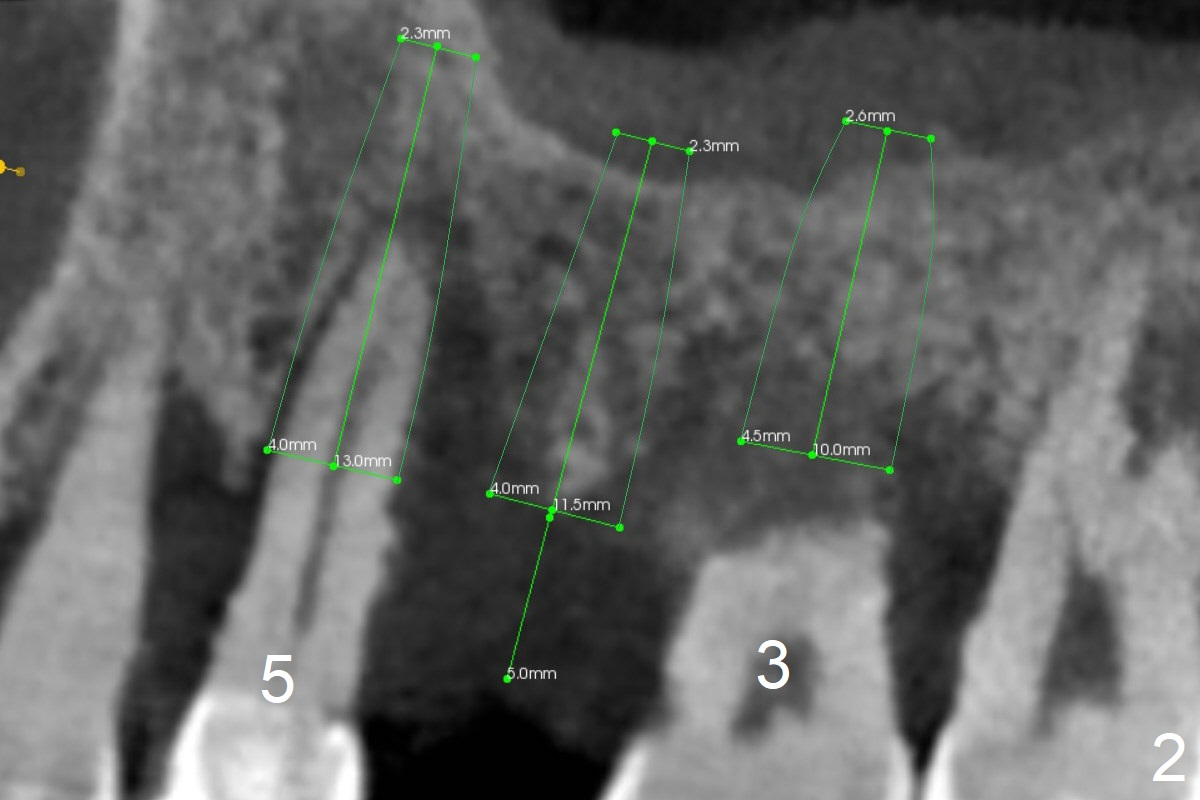

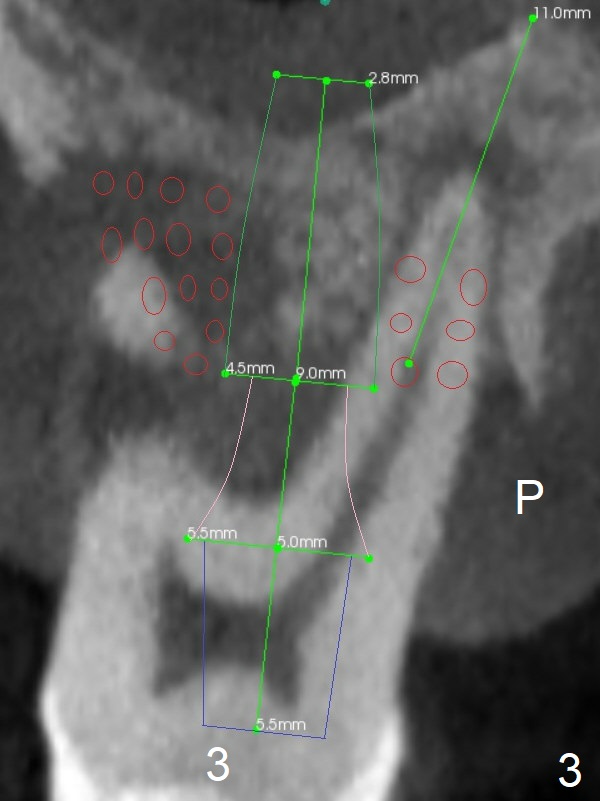

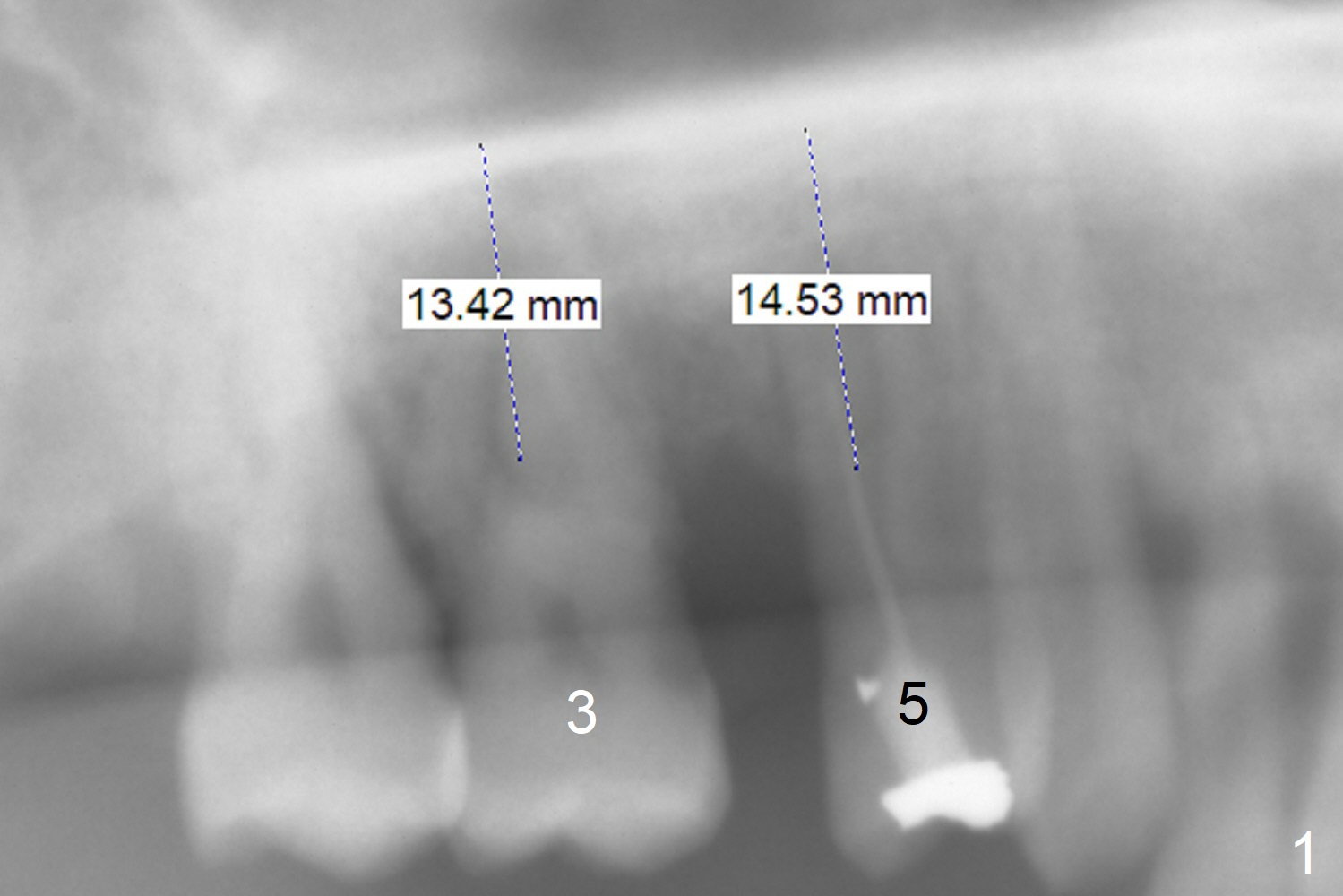

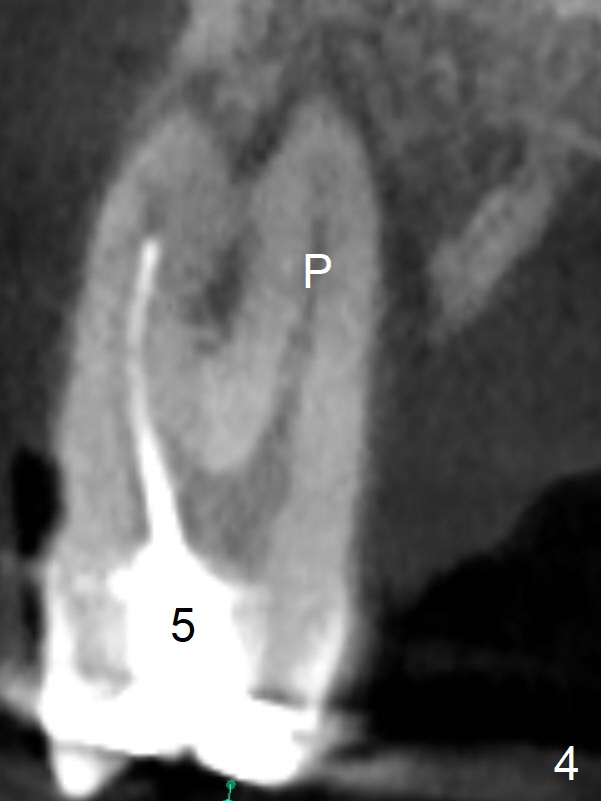

A 36-year-old man with chronic periodontitis will return for #3 and 5 extraction and FPD (Fig.1,2).  The initial depth of the septum of #3 will be <8.5 mm (Fig.3).  The septum seems narrow; bone expansion will be done with DIO bone expander kit.  The osteotomy at #5 will be in the palatal socket (Fig.4 P).  Take photos for Lower Anterior provisional.

Return to Upper Molar Immediate Implant, Prevent Molar Periimplantitis (Protocols, Table), IBS, Metronidazole, #7

Xin Wei, DDS, PhD, MS 1st edition 09/08/2017, last revision 05/12/2018
