Sinus Lift

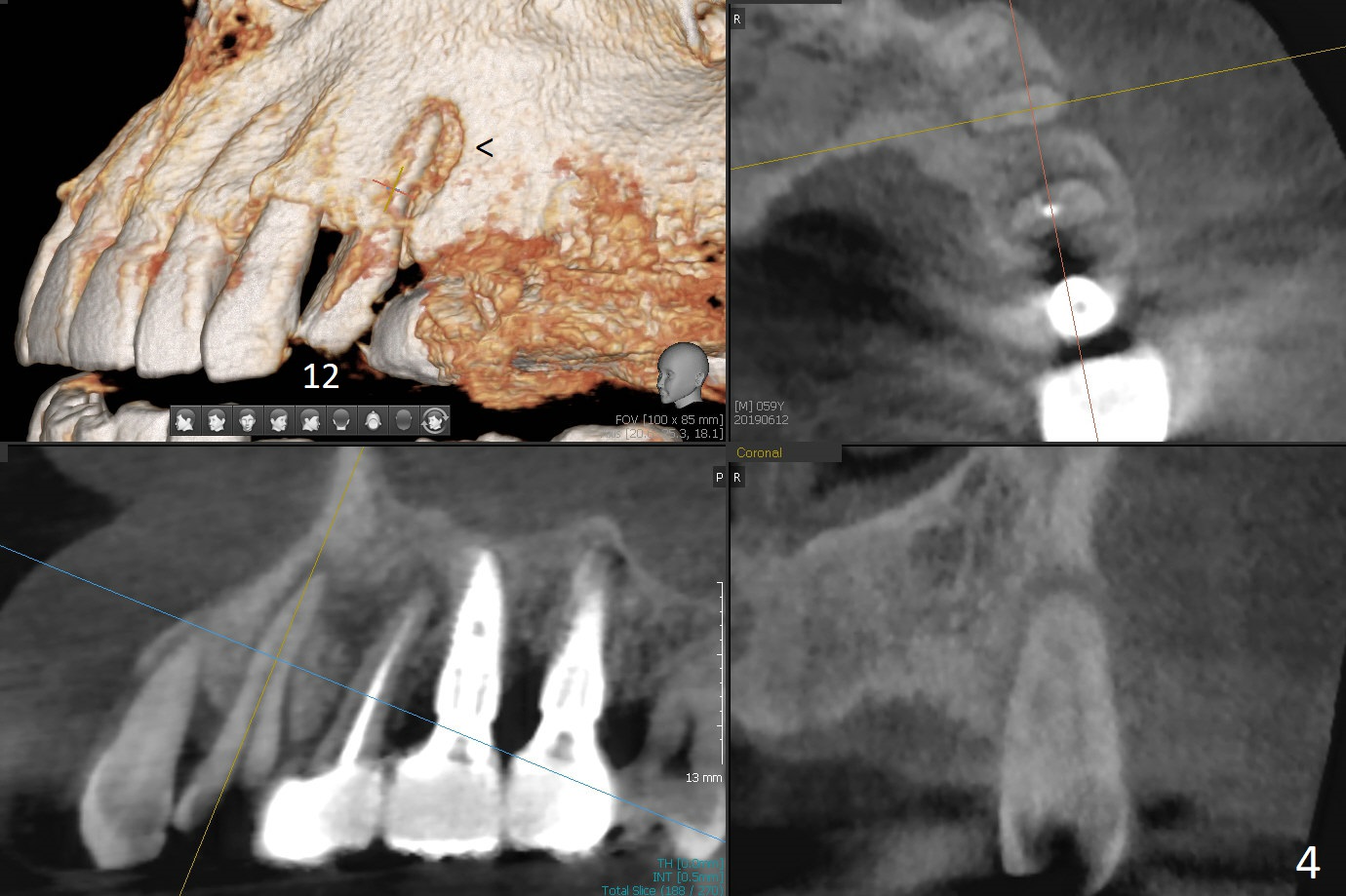

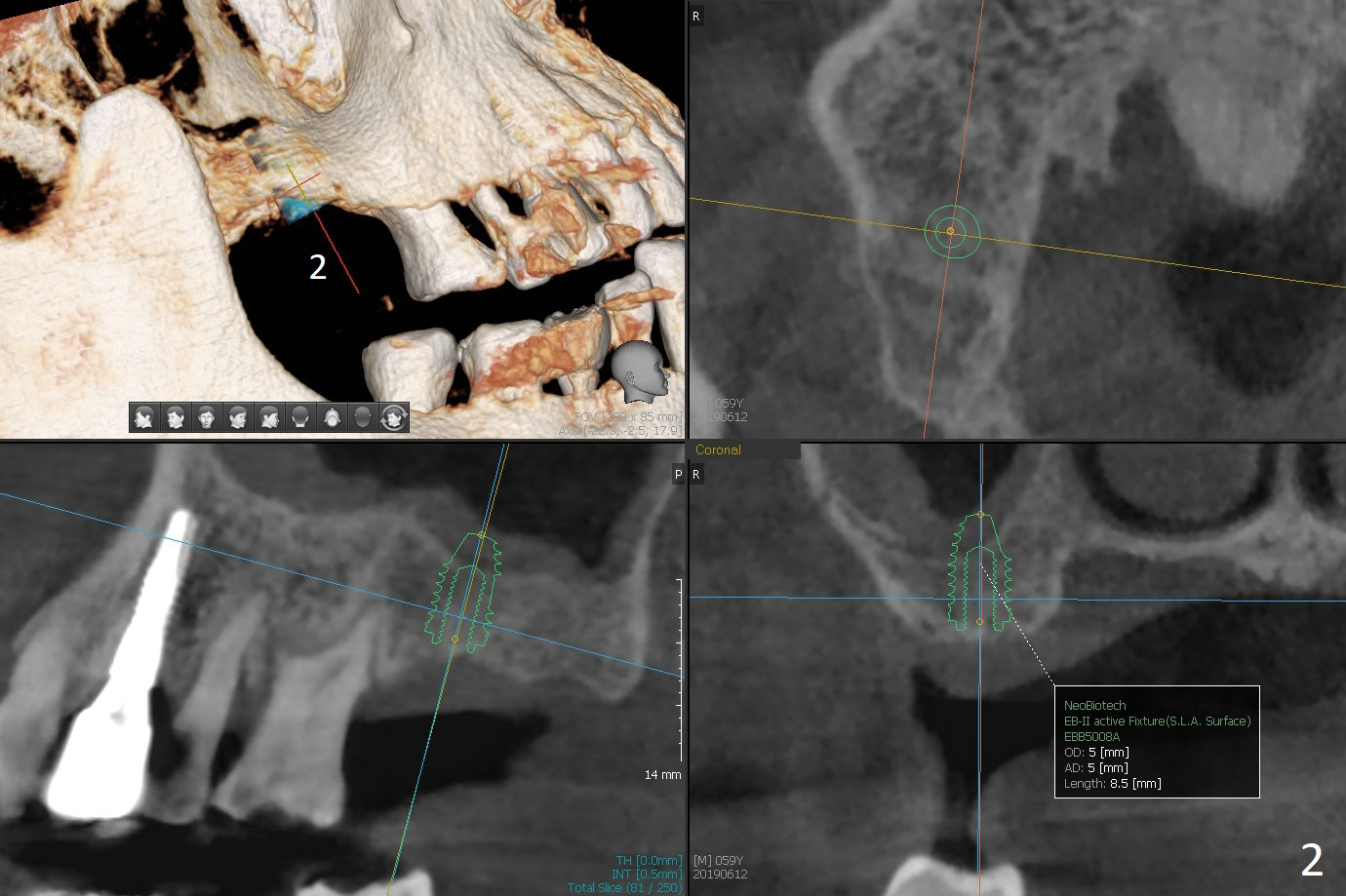

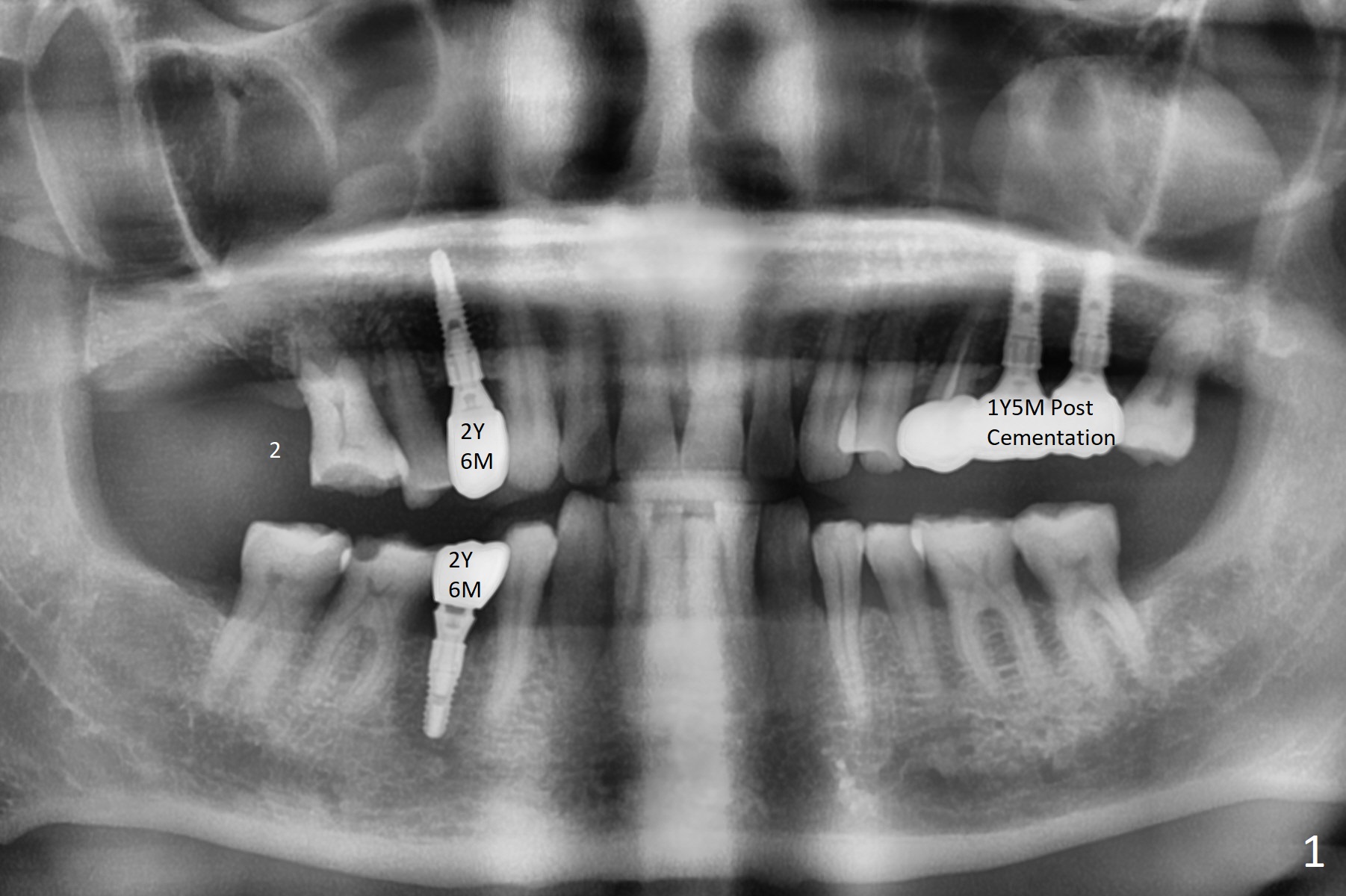

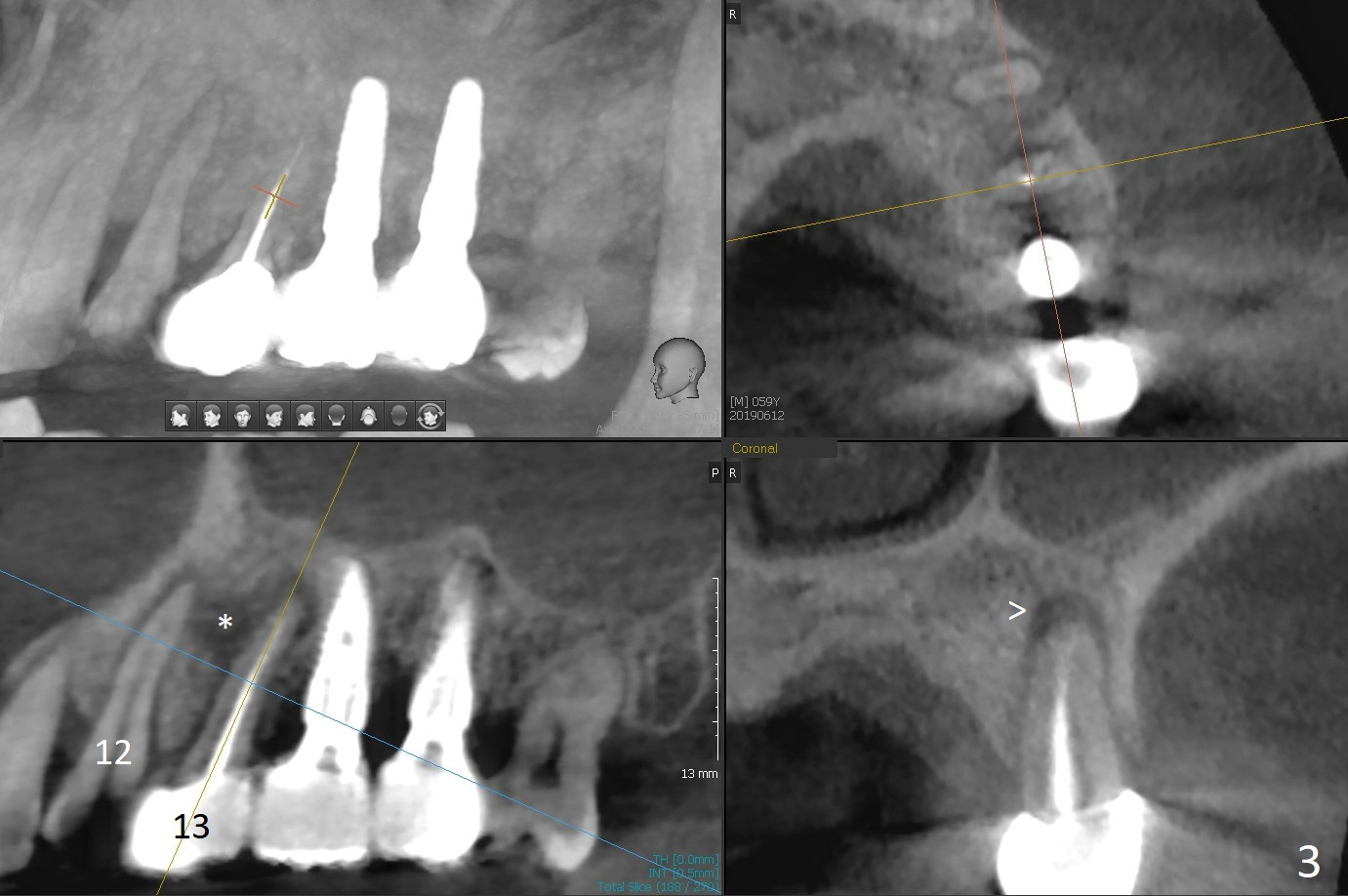

A 59-year-old man requests implant at #2 after those at #5, 14/15,  and 29 (Fig.1).  Sinus lift is required at #2 (Fig.2).  Prepare PRF and SM implant (to be consistent with the previous ones without screw loosening).  Although there is periapical radiolucency at #13 (Fig.3 >), there is another between #12 and 13 (Fig.3 *), which may be related to the apical infection at #12 (Fig.4 <).

Return to Upper Molar Immediate Implant, Trajectory II
Xin Wei, DDS, PhD, MS 1st edition 06/12/2019, last revision 08/01/2019
