Proximal Clearance

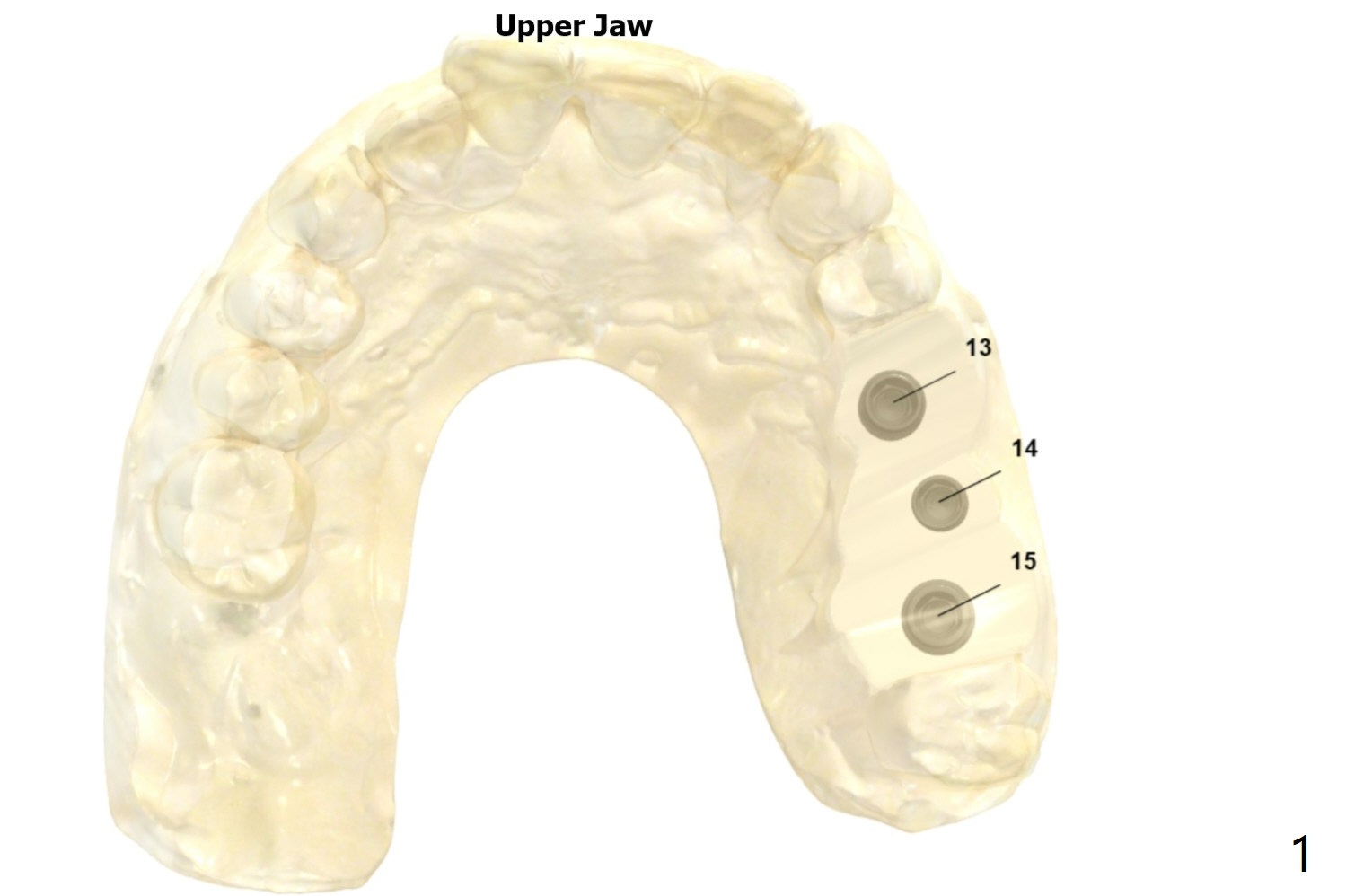

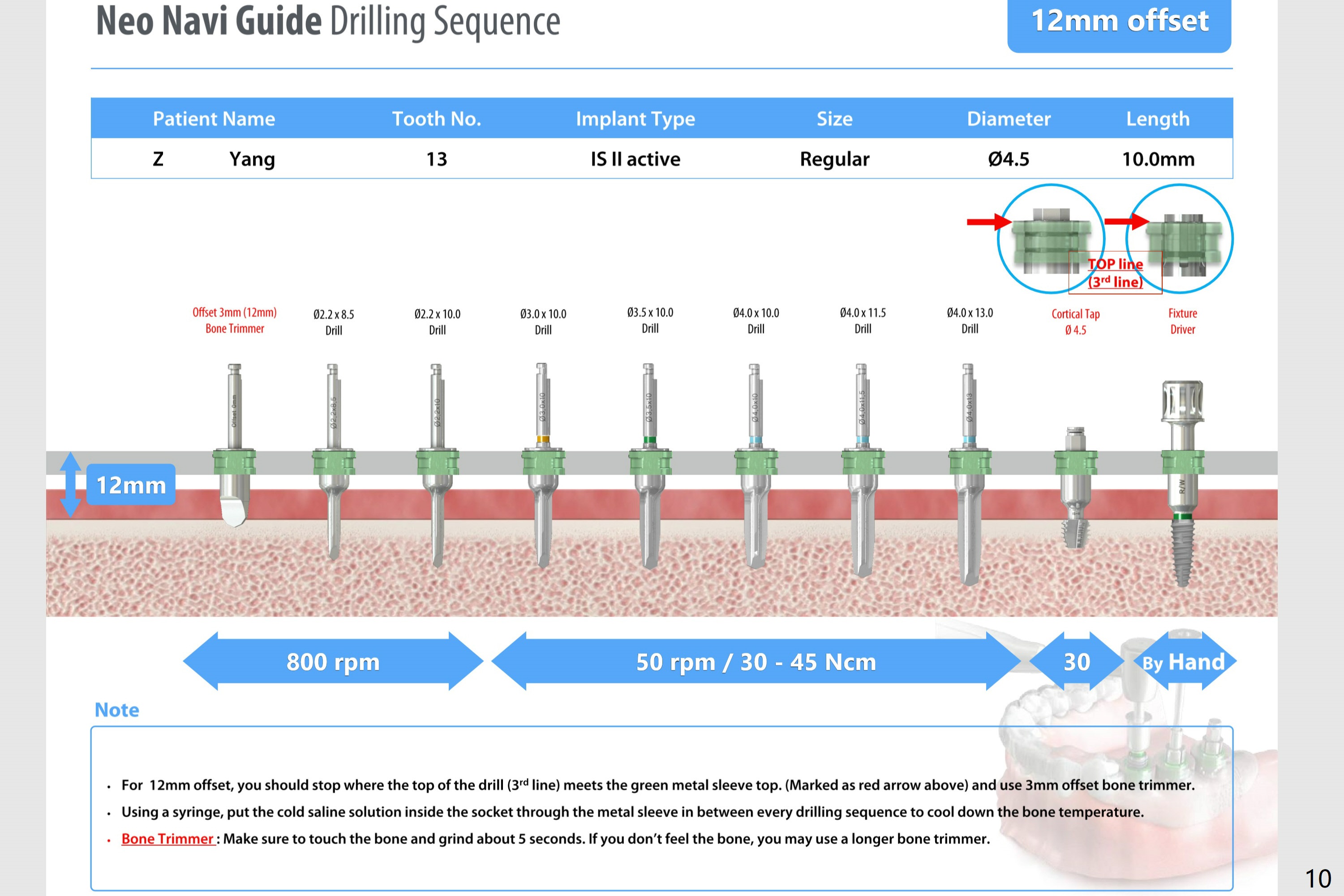

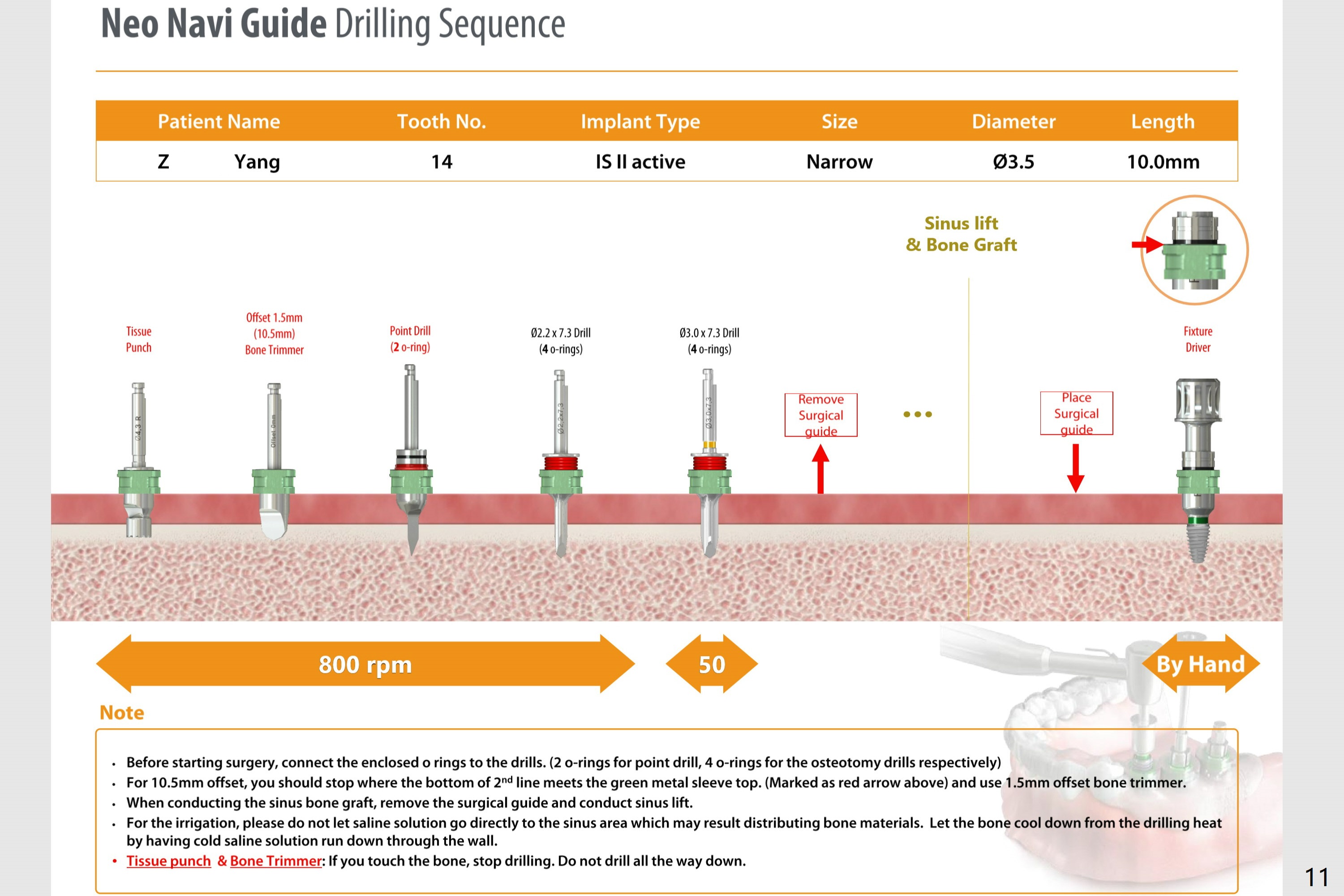

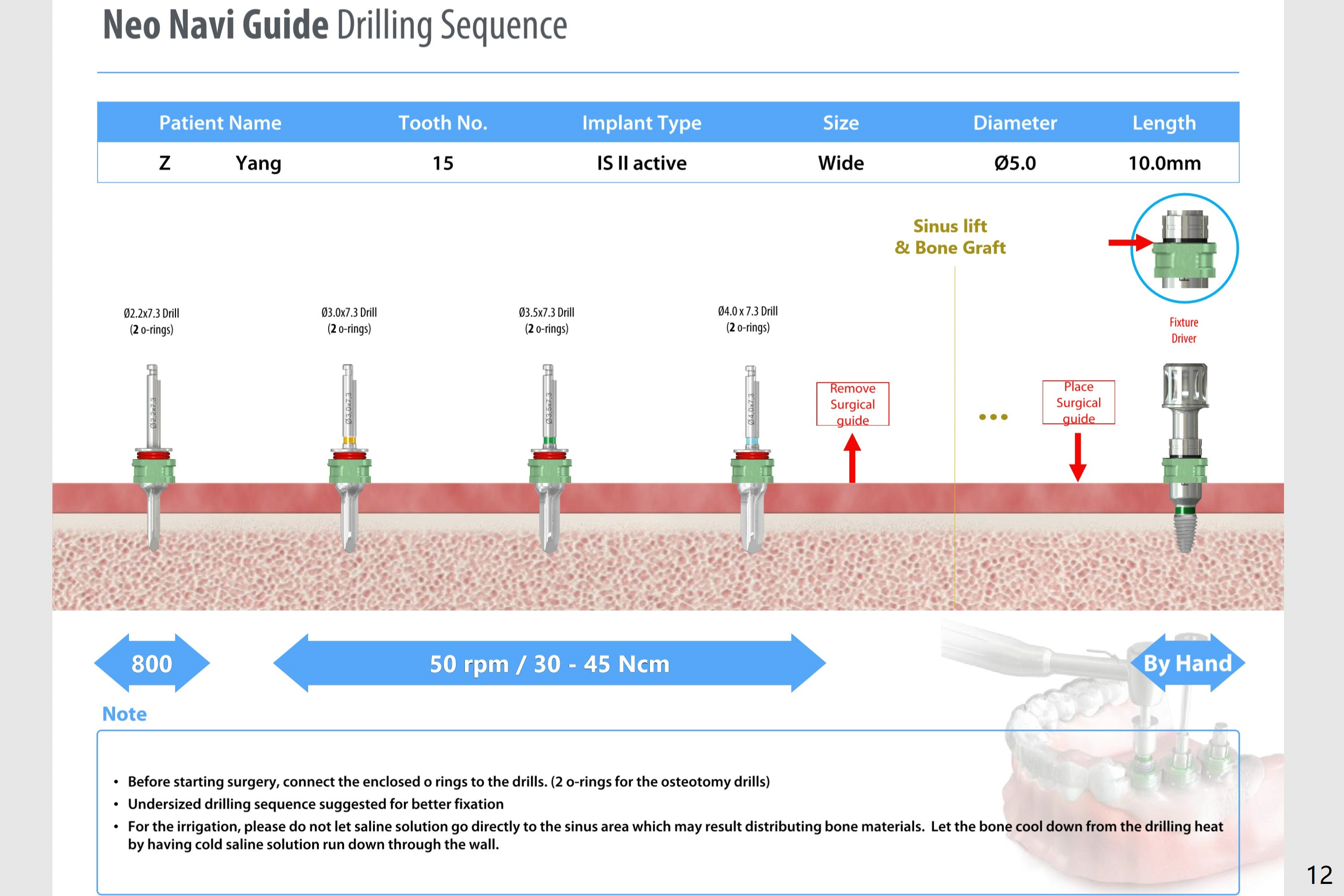

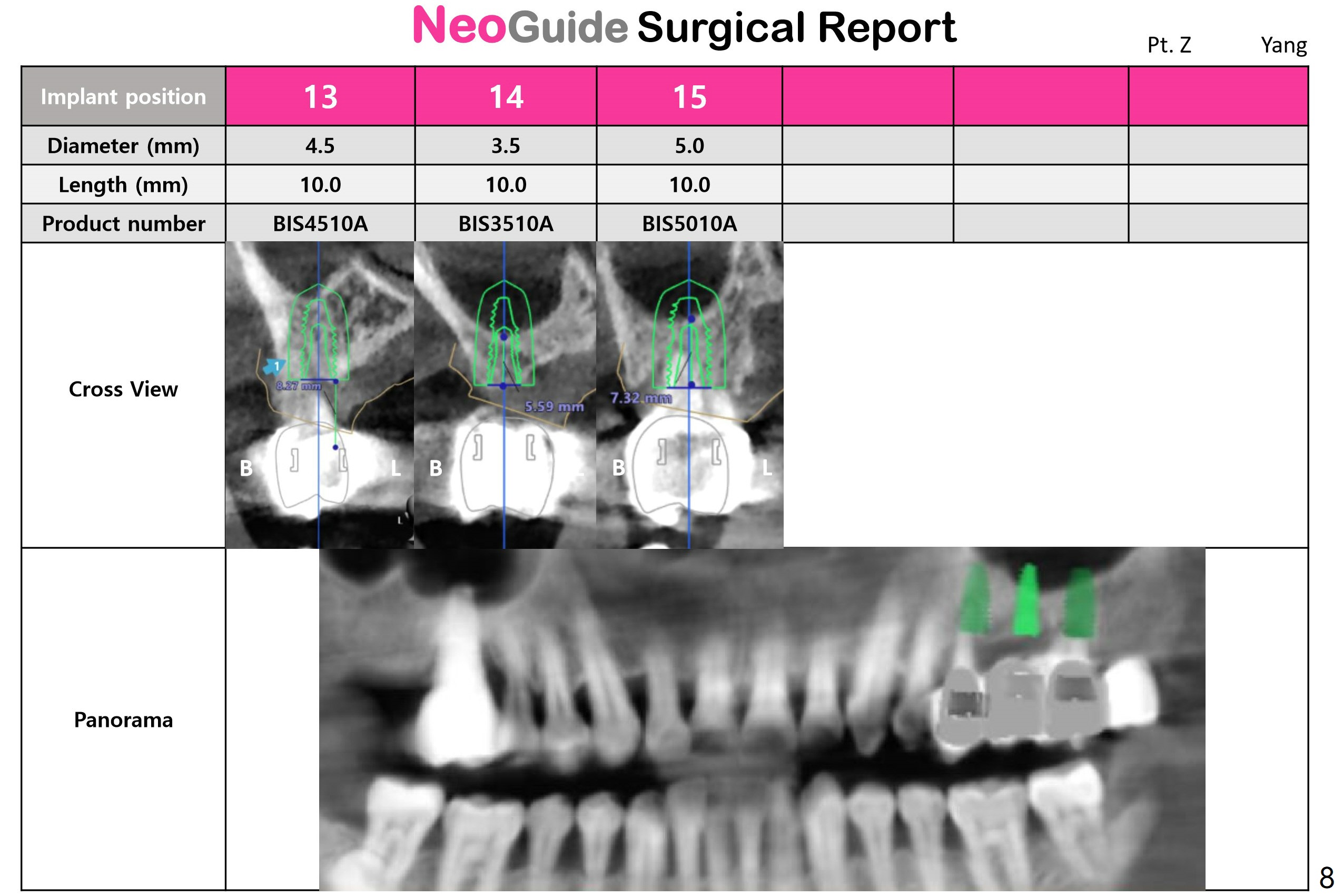

Place bony anchor at #14 after seating the guide and the 1st 3 steps of drill sequence.  Start osteotomy at #13: 2.2 mm drills all the way to 11.5 mm; take PA to confirm the trajectory and then follow normal sequence; place fixture anchor at #13.  Next osteotomy at #15 and then place fixture anchor.  Last remove #14 bony anchor and begin osteotomy.  10.5 mm offset in Fig.11 is an error.

Upper Molar Premolar Immediate Implant, Prevent Molar Periimplantitis (Protocols, Table), Trajectory II, Metronidazole Xin Wei, DDS, PhD, MS 1st edition 09/24/2019, last revision 10/25/2019
